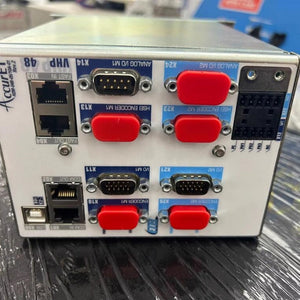

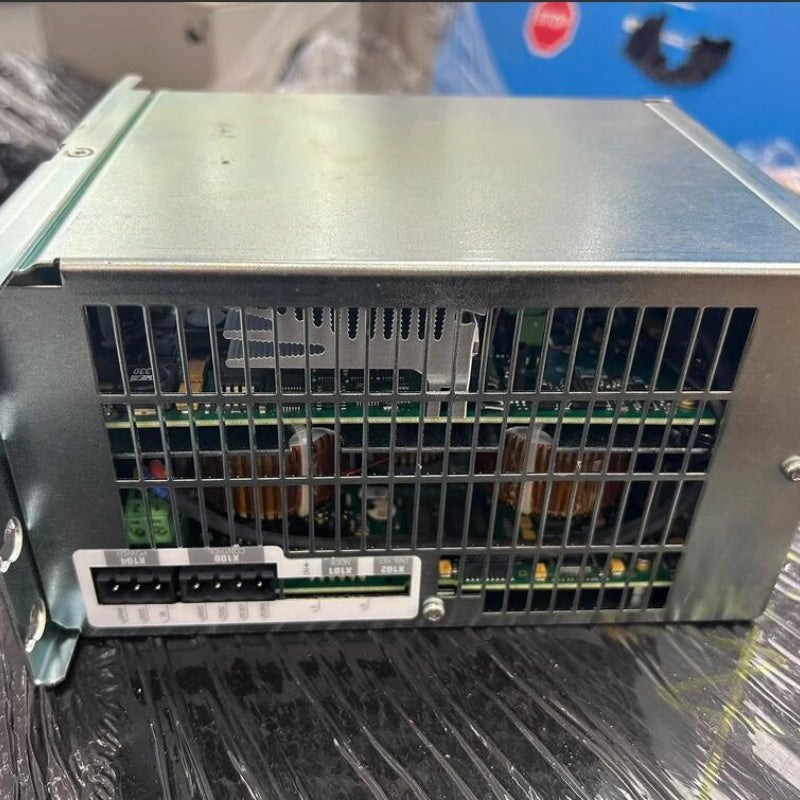

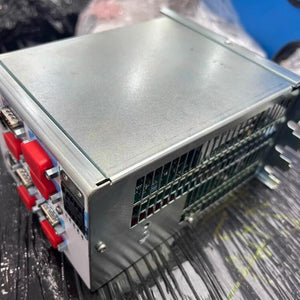

1 PCS used ETEL AccurET EA-H2M-048-05/10A-0100-01 Controller #LYQ007
1 PCS used ETEL AccurET EA-H2M-048-05/10A-0100-01 Controller #LYQ007
| Parameter | Value |
|---|---|
| Model | EA-H2M-048-05/10A-0100-01 |
| Number of Axes | 2 ETEL SA |
| Continuous Current (per axis) | 5 Arms ETEL SA |
| Max. Overload Current (per axis) | 10 Arms ETEL SA |
| Power Input DC Voltage | 15 – 48 VDC ETEL SA |
| Max. Input Current | 10 A ETEL SA |
| Current Loop SNR | 100 dB ETEL SA |
| Current Loop Sampling Time | 50 µs ETEL SA |
| Position Loop Sampling Time | 12.5 µs ETEL SA |
| Motion Profile Sampling Time | 400 µs (down to 200 µs) ETEL SA |
| Weight | 2.6 kg ETEL SA |
| Communication Interface | - USB 2.0 (full speed, 12 Mbps, type-C, for setting only)
|
| Position Encoder Interface | - Analog: 1 Vpp, max. 500 kHz input frequency
|
| Digital Inputs | 6 FDINs (common to both axes), 4 DINs (per axis) ETEL SA |
| Digital Outputs | 4 FDOUTs (common to both axes), 4 DOUTs (per axis) ETEL SA |
| Analog Inputs | 4 AINs (common to both axes), ±10V, 16 bits ETEL SA |
| Analog Outputs | 4 AOUTs (common to both axes), ±20V, 16 bits ETEL SA |
| Basic Motion Profiles | Trapezoidal, S-curve, Sine, Look-up table, Interpolated ETEL SA |
| Advanced Features | Fast triggers (1D/2D, <20ns reaction), Force control, Gantry control, Stage protection, Cogging & friction compensation, Dual encoder feedback, Trajectory filters, High Speed Encoder Interface (HSEI) ETEL SA |
| Software | ComET commissioning software, ETEL Device Interface (EDI), Firmware update, DLL files for C/C++/.NET ETEL SA |
| Protection | Over-temperature, over-current, voltage fluctuation, loss of feedback |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
