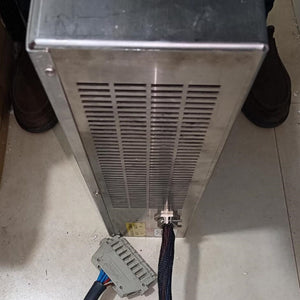

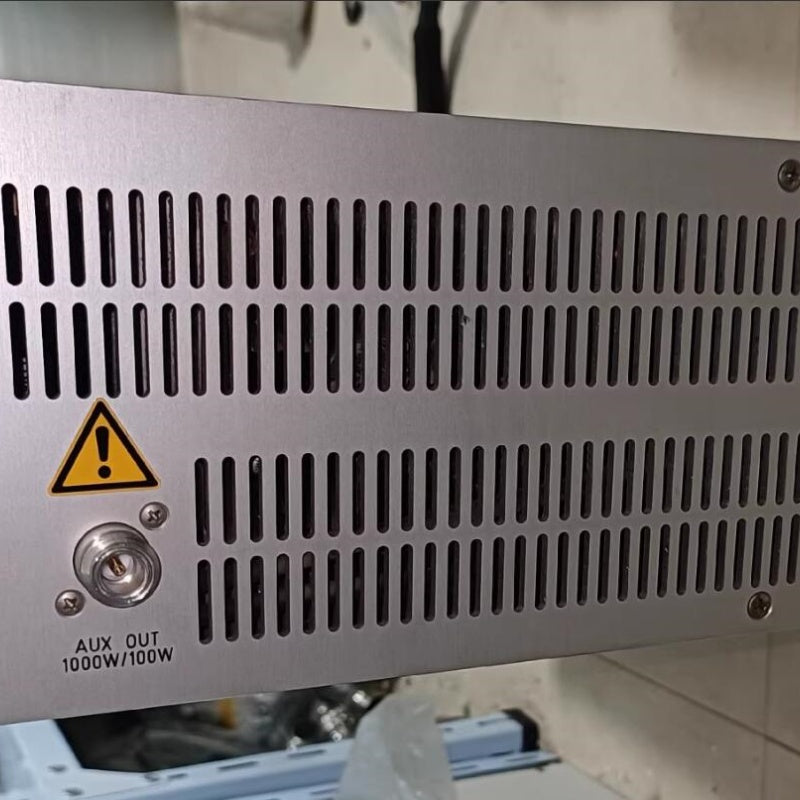

1 PCS used BRUKER BLAH1000 RF Power Amplifier #LYQ007
1 PCS used BRUKER BLAH1000 RF Power Amplifier #LYQ007
| Parameter | Details |
|---|---|
| Model | BLAH1000 (E) |
| Part Number | W1345531 |
| Frequency Range | 650 – 900 MHz |
| Amplifier Class | Class AB |
| Solid Output (H1000 Channel) | |
| Peak Pulsed Power | 1000 W typical (900 W @ 900 MHz) |
| Linear Output Power (1dB Compression) | 600 W min. |
| CW Power | 50 W max. |
| High Resolution Output (H100 Channel) | |
| Peak Pulsed Power | 100 W typical |
| Linear Output Power (1dB Compression) | 80 W min. |
| CW Power | 25 W max. |
| General Electrical Specifications | |
| Linear Gain | 60 dB typical (H1000); 48 dB typical (H100) @ Pin = -10 dBm, 800 MHz |
| Gain Flatness | ±2 dB max. |
| Input/Output Impedance | 50 Ω |
| Blanking Delay Time | < 1 µs typical |
| RF Rise Time | < 70 ns |
| RF Fall Time | < 50 ns |
| Output Noise Power | -107 dBm @ 1 Hz (unblanked); -20 dBm (blanked) |
| Pulse & Duty Cycle Limits | |
| Max. Pulse Width (H1000) | 100 ms @ 1000 W |
| Max. Duty Cycle (H1000) | 2% @ 1000 W (up to 100% @ 50 W CW) |
| Max. Pulse Width (H100) | 100 ms @ 100 W |
| Max. Duty Cycle (H100) | 25% @ 100 W (up to 100% @ 25 W CW) |
| Power Supply Requirements | |
| External Power Supply P/N | W1303539 (Standard); W1304007 (Optional) |
| Supply Voltage | +32 VDC (Main); +15 VDC, -15 VDC, +3.3 VDC (Aux) |
| AC Input | 176 – 264 VAC, single-phase |
| Physical & Environmental | |
| Application | Broadband linear pulse amplifier for NMR/MRI (16.4–21.1 T systems) |
| Cooling | Forced air |
| Protection | Over-current, over-voltage, thermal protection |
| Version | 001 / 002 |
| Manufacturer | BRUKER BioSpin, France |
