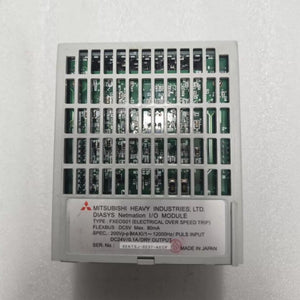

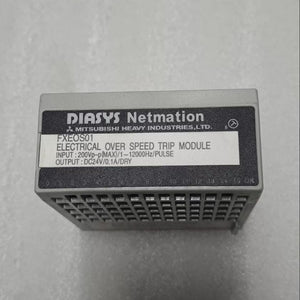

1 PCS used Mitsubishi FXEOS01 Electrical Over Speed Trip Module #LYQ007
1 PCS used Mitsubishi FXEOS01 Electrical Over Speed Trip Module #LYQ007
| Item | Specification |
|---|---|
| Product Type | EOST (Electrical Over Speed Trip) Module |
| Applicable System | Diasys Netmation, ControlNet™ FLEX I/O™ |
| Turbine Speed Input | 1 channel, 1 – 12000 Hz; 1 Vp-p – 200 Vp-p |
| F/D Conversion Accuracy | 0.01% FSR |
| Resolution | < 0.1 Hz |
| Conversion Interval | Max. 60 msec at 3000 Hz |
| EOST Output (Trip) | 2 channels; DC 30 V / 100 mA, dry contact |
| Trip Speed Setting | 800 – 1200 Hz |
| Speed Sensor Power | -24 V DC (non-isolated) |
| Auxiliary Outputs | 4 channels (open collector); 1 – 5 V DC |
| Analog Input | 1 channel, 4 – 20 mA |
| Digital Input | 1 channel (photo-coupler); DC 24 V / 5 mA |
| Serial Interface | EIA RS-232C (PS/2) × 1 (maintenance) |
| Self-Diagnosis | Application error, watchdog, clock monitor, connector check, low voltage, bus timeout |
| LED Indicator | 1 unit; Green (Normal), Red (Abnormal) |
| Power Supply | - DC 24 V ±10% / < 300 mA
|
| Operating Temp | 0 – 55 °C |
| Storage Temp | -25 – 85 °C |
| Humidity | 0 – 95% RH (non-condensing) |
| Shock / Vibration | 15 G / 2 G @ 10 – 500 Hz |
| Dimensions (D×H×W) | 110 mm × 46 mm × 92 mm |
| Weight | Approx. 250 g |
| Standards | CE, UL, CSA |
| Made In | Japan |
| Compatible Terminals | 1794-TB3/TB3S, 1794-TBN/TBNF |
