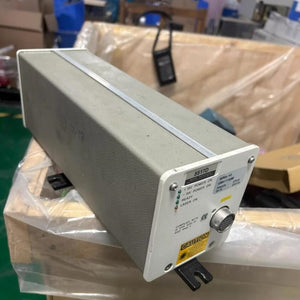

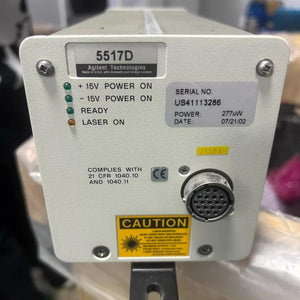

1 PCS used Agilent 5517D Laser Head #LYQ007
1 PCS used Agilent 5517D Laser Head #LYQ007
| Parameter | Specification |
|---|---|
| Product Model | 5517D Laser Head |
| Laser Type | Helium-Neon (He-Ne), Continuous Wave (CW), Dual-Frequency |
| Nominal Vacuum Wavelength | 632.991354 nm |
| Wavelength Accuracy (3σ, Lifetime) | ±0.1 ppm (±0.02 ppm with factory calibration) |
| Wavelength Stability (1 Hour) | ±2 ppb (±0.002 ppm) typical |
| Wavelength Stability (Lifetime) | ±20 ppb (±0.02 ppm) typical |
| Beam Power Output (Min.) | 180 µW (Standard) |
| Beam Power Output (Max.) | 1 mW |
| Beam Diameter (Standard) | 6 mm (0.25 in) |
| Beam Diameter (Options) | 3 mm (Opt. 003), 9 mm (Opt. 009) |
| Reference Frequency | 3.4 – 4.0 MHz |
| Max. Measuring Velocity | 1000 mm/s |
| Warm-up Time | < 10 minutes (4 min typical) |
| Power Supply | +15 V ±0.3 V @ 2.2 A max; -15 V ±0.3 V @ 0.02 A max |
| Power Dissipation | 35 W (warm-up), 23 W (operation) |
| Weight | 3.4 kg (7.5 lb) |
| Dimensions | 142.0 (W) × 83.7 (H) × 360.0 (D) mm |
| Beam Height | 79.5 ± 1.0 mm |
| Safety Classification | Class II Laser |
| MTBF (Typical) | > 50,000 hours |
| Operating Temperature | 0 °C to 40 °C |
