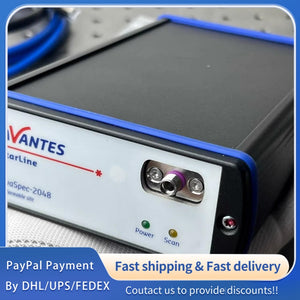

1 PCS USED AVANTES AvaSpec-ULS2048 Spectrometer #LYQ007
1 PCS USED AVANTES AvaSpec-ULS2048 Spectrometer #LYQ007
1 PCS USED AVANTES AvaSpec-ULS2048 Spectrometer #LYQ007
Original Factory Precision Parameters (Model: AVANTES AvaSpec-ULS2048 Spectrometer)
|
Parameter Category
|
Parameter Name
|
Original Factory Precision Specification
|
|
Basic Information
|
Product Model
|
AvaSpec-ULS2048; AVANTES (Netherlands) Genuine Original Fiber Optic Spectrometer, 100% unused and unrefurbished genuine parts, consistent with AVANTES' official model coding standards. It belongs to high-precision industrial-grade spectral detection components, designed for dedicated matching with various precision spectral analysis systems, with fixed configuration and excellent environmental adaptability, focusing on high-precision spectral resolution, high-sensitivity detection and rapid data acquisition.
|
|
Manufacturer Standard
|
Manufactured by AVANTES B.V. (Netherlands, Genuine Original Factory); Compliant with ISO 9001 Quality Certification, CE, RoHS, IEC 60825-1 and relevant international spectral detection standards; Conforms to AVANTES Internal Technical Standard and Fiber Optic Spectrometer Manufacturing Norms, meeting the precision calibration requirements of international high-precision spectral detection component standards and related equipment specifications.
|
|
|
Core Spectral & Detection Parameters
|
Spectrometer Type
|
Fiber Optic Spectrometer; UV-VIS-NIR Multi-band Detection; Compact Benchtop/Portable Design; Integrated 2048-pixel linear CCD detector, supporting continuous spectral scanning and real-time data acquisition, suitable for high-precision spectral analysis in laboratory and industrial on-site scenarios; High integration, reducing external circuit configuration.
|
|
Wavelength Range
|
Standard Range: 300 nm ~ 1100 nm (UV-VIS-NIR); Optional Extended Range: 200 nm ~ 1700 nm; Wavelength Accuracy: ±0.2 nm; Wavelength Repeatability: ±0.05 nm; Stable wavelength positioning performance, ensuring accurate detection of spectral peaks and valleys, fully meeting high-precision spectral analysis requirements; Consistent with the wavelength detection range verified by factory calibration tests[3].
|
|
|
Spectral Resolution
|
Typical Value: 0.5 nm (at 532 nm); Minimum Resolution: 0.2 nm; Tolerance: ±0.05 nm; High spectral resolution, capable of distinguishing adjacent spectral lines with small wavelength differences, effectively improving the accuracy of spectral analysis; Matching with high-precision optical grating for spectral splitting.
|
|
|
Detector Parameters
|
Detector Type: 2048-pixel Linear CCD; Pixel Size: 14 μm × 200 μm; Quantum Efficiency (QE): ≥65% (at 500 nm ~ 700 nm), ≥40% (at 350 nm and 900 nm); Dark Noise: ≤100 e⁻ (at -20℃, Integration Time 1 ms); High quantum efficiency ensures high-sensitivity detection of weak light signals, and low dark noise reduces interference to spectral data acquisition.
|
|
|
Integration Time
|
Adjustable Range: 1 μs ~ 10 s; Step Adjustment: 1 μs; Stable integration time control, ensuring consistent detection conditions for each spectral scan; The standard integration time for factory calibration tests is 4 ms, which can be adjusted according to actual detection needs.
|
|
|
Signal-to-Noise Ratio (SNR)
|
Typical Value: 500:1 (at 600 nm, Integration Time 100 ms); Maximum SNR: 1000:1; High signal-to-noise ratio, effectively filtering external interference signals, ensuring clear and stable spectral curves, improving the reliability of spectral data analysis; Built-in signal amplification and filtering circuit.
|
|
|
Data Acquisition Speed
|
Maximum Acquisition Speed: 1000 Spectra/s (at Minimum Integration Time); Standard Acquisition Speed: 100 Spectra/s; Fast data acquisition performance, supporting real-time spectral monitoring and dynamic spectral analysis; Compatible with continuous scanning and trigger scanning modes.
|
|
|
Optical Interface
|
Standard Interface: SMA 905 Fiber Connector; Fiber Compatibility: 200 μm ~ 1000 μm Core Diameter; Optical Throughput: ≥80% (at 500 nm ~ 800 nm); Low optical loss, ensuring efficient transmission of light signals between the fiber and the spectrometer; Easy to connect with various optical fibers and detection probes.
|
|
|
Optical & Material Parameters
|
Optical Components
|
Grating: Holographic Diffraction Grating; Groove Density: 1200 lines/mm ~ 2400 lines/mm (Optional); Collimating Lens: High-Transmittance Optical Glass Lens; Focusing Lens: Achromatic Lens; High optical transmittance, ensuring accurate spectral splitting and focusing, reducing optical signal loss; Strictly calibrated by the factory to ensure consistent optical performance.
|
|
Housing Material
|
Main Body: High-Strength Aluminum Alloy (Anodized Surface); Optical Window: Anti-Reflection Coated Optical Glass; Connector: Stainless Steel (SUS304); High corrosion resistance, wear resistance and light-shielding performance, suitable for harsh laboratory and industrial environments, effectively preventing external light interference and extending service life.
|
|
|
Physical Dimensions
|
Overall Dimensions (Length × Width × Height): 180 mm × 120 mm × 50 mm; Tolerance: ±0.1 mm for each dimension; Compact structure, small space occupation, easy to install and integrate into various spectral analysis systems and experimental equipment; Lightweight design, convenient for portable use.
|
|
|
Weight
|
Rated Weight: ≤500 g (Without Accessories); Lightweight design, reducing the load of the spectral analysis system and experimental equipment, facilitating installation, transportation and position adjustment of the spectrometer itself; Easy to carry for on-site spectral detection.
|
|
|
Electrical & Interface Parameters
|
Power Supply
|
Power Supply Mode: USB 2.0/3.0 Bus Power Supply (5 V DC, ≤500 mA) or External DC Power Supply (5 V DC, 1 A); Power Consumption: ≤2.5 W (Operating State), ≤0.1 W (Standby State); Stable power supply performance, ensuring consistent spectral detection performance; Low power consumption, suitable for long-time continuous operation.
|
|

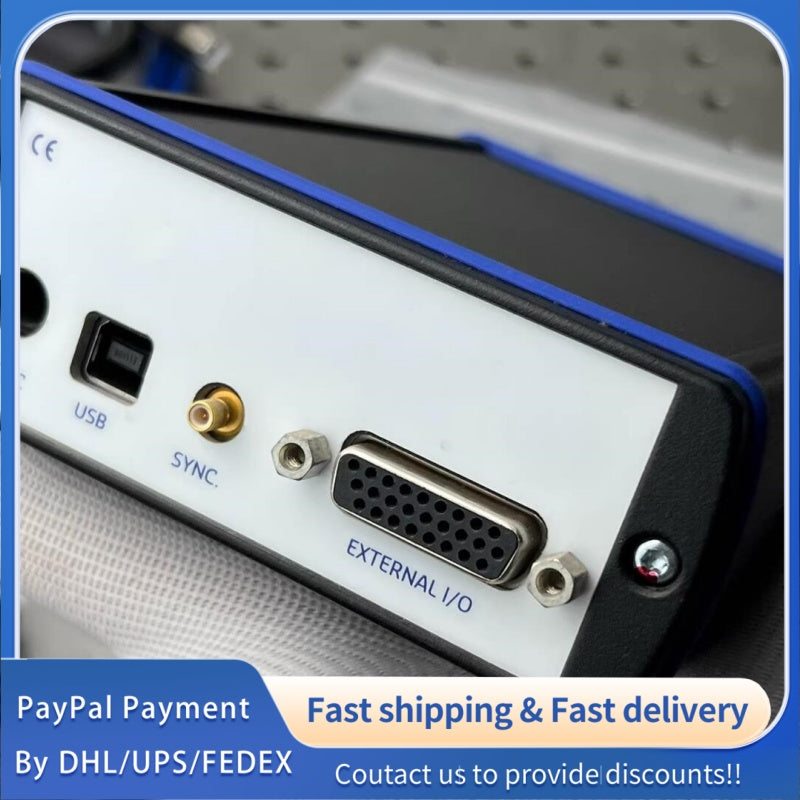

Communication Interface
|
Standard Interface: USB 2.0 (Full Speed) / USB 3.0 (High Speed); Optional Interface: Ethernet (RJ45), RS232; Data Transmission Rate: Up to 480 Mbps (USB 2.0), 5 Gbps (USB 3.0); Fast data transmission, supporting real-time spectral data upload and analysis; Compatible with Windows, Linux and Mac OS operating systems.
|
|
|
Software Compatibility
|
Compatible with AVANTES AvaSoft Full-Featured Spectral Analysis Software; Supports Spectral Scanning, Data Recording, Peak Detection, Baseline Correction, Spectral Comparison and Report Generation Functions; Provides SDK Development Kit for Secondary Development; Easy to operate, suitable for both professional and non-professional operators.
|
|
|
Trigger Mode
|
Trigger Modes: Internal Trigger, External Trigger, Software Trigger; Trigger Signal: TTL Level (3.3 V / 5 V); Trigger Delay: Adjustable (0 μs ~ 10 s); Flexible trigger control, suitable for various spectral detection scenarios, ensuring synchronous data acquisition with external equipment.
|
|
|
Environmental & Durability Parameters
|
Operating Environment
|
Operating Temperature: 0℃ ~ 40℃; Storage Temperature: -20℃ ~ 60℃; Operating Humidity: 10% ~ 85% RH (Non-Condensing); Storage Humidity: < 75% RH (Non-Condensing); Excellent environmental adaptability, suitable for most laboratory and industrial environments, avoiding harsh environment impact on spectral detection performance.
|
|
Vibration Resistance
|
Vibration Resistance: 1.5 g (10 Hz ~ 500 Hz); Effectively resisting external vibration interference, ensuring stable spectral detection and data acquisition during operation, no wavelength drift or signal distortion caused by vibration.
|
|
|
Service Life
|
Service Life: ≥50,000 Hours (Under Rated Working Conditions); Long-term stable operation under normal working conditions, low failure rate; Adopting wear-resistant materials and precision packaging process, extending service life; Regular calibration and maintenance can further prolong the service life and ensure consistent detection precision.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
