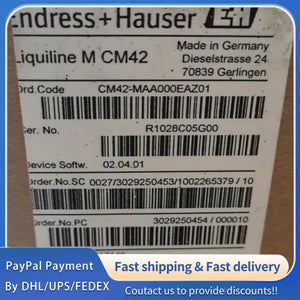

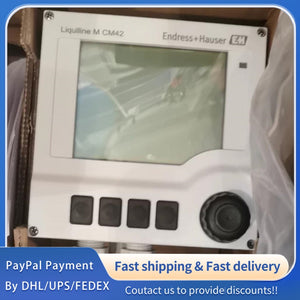

1 PCS new E+H Transmitter CM42-MAA000EAZ01 #LYQ007
1 PCS new E+H Transmitter CM42-MAA000EAZ01 #LYQ007
1 PCS new E+H Transmitter CM42-MAA000EAZ01 #LYQ007
|
Parameter
|
Specification (CM42-MAA000EAZ01)
|
Unit
|
E+H Factory Notes (Original Description)
|
|
Brand & Origin
|
Endress+Hauser (E+H), Germany, Original Factory, Brand New Genuine Product
|
-
|
100% brand-new original product manufactured by E+H official factory in Germany, in line with E+H global quality system standards.
|
|
Product Model & Part No.
|
Model: Transmitter; Part Number: CM42-MAA000EAZ01; Standard Part No.: CM42MAA000EAZ01
|
-
|
Original factory model and part number, unchanged; dedicated for E+H industrial process measurement systems, standardized design for easy replacement.
|
|
Measurement Principle
|
Potentiometric Measurement, High-precision Glass Electrode Compatibility, Temperature Compensation Technology
|
-
|
Adopts advanced potentiometric measurement principle, compatible with E+H original glass electrodes, with automatic temperature compensation for accurate measurement.
|
|
Measurement Range (pH)
|
0.00 ~ 14.00 pH, Adjustable Measurement Range, Resolution: 0.01 pH
|
pH
|
Wide pH measurement range, high resolution, suitable for various industrial process media pH measurement requirements.
|
|
Measurement Range (ORP)
|
-1000 ~ +1000 mV, Resolution: 1 mV, Adjustable Measurement Range
|
mV
|
Full-range ORP measurement, high resolution, ensuring accurate monitoring of redox potential in industrial process media.
|
|
Measurement Precision
|
pH: ±0.01 pH (25°C); ORP: ±1 mV (25°C); Temperature Compensation: ±0.01 pH/°C
|
pH/mV/°C
|
High measurement precision, built-in high-precision temperature compensation module, reducing temperature impact on measurement results.
|
|
Temperature Compensation Range
|
0 ~ 100 °C, Automatic Temperature Compensation, Manual Compensation Optional
|
°C
|
Wide temperature compensation range, automatic compensation as standard, manual compensation available for special process requirements.
|
|
Response Time
|
≤1 s (90% Response, 25°C), Fast Response to Medium Changes
|
s
|
Ultra-fast response speed, ensuring timely capture of pH/ORP changes in industrial process media, no lag in measurement.
|
|
Output Type
|
Dual 4 ~ 20 mA Analog Output, HART Digital Communication, Relay Output (2 Channels Optional)
|
mA
|
Dual analog output + HART digital communication, compatible with various industrial control systems, easy for remote monitoring and parameter adjustment.
|
|
Output Current Accuracy
|
±0.1% of Full Scale (4 ~ 20 mA), High Output Stability
|
%
|
High output current accuracy, stable signal transmission, ensuring accurate signal acquisition by the upper control system.
|
|
Working Voltage
|
DC 12 ~ 30 V, Allowable Voltage Fluctuation: ±10%, Ripple Voltage: ≤100 mVpp
|
V DC
|
Wide voltage input range, strong anti-voltage fluctuation ability, adapting to industrial on-site unstable power supply environment.
|
|
Working Current
|
Typical: 30 mA; Maximum: 60 mA (Under Full Load & Peak Operation)
|
mA
|
Low power consumption design, suitable for long-term continuous operation, reducing energy consumption and system heat generation.
|
|
Operating Temperature Range
|
-10 ~ 60 °C (Operating); -20 ~ 70 °C (Storage); No Frost Damage
|
°C
|
High and low temperature resistance, built-in temperature protection circuit, adapting to various harsh industrial on-site temperature environments.
|
|
Relative Humidity
|
5 ~ 95% (Non-condensing), No Dew Formation, Anti-moisture Design
|
%
|
Internal components adopt anti-moisture and anti-corrosion coating, effectively preventing moisture damage and extending service life.
|
|
Protection Level
|
IP65 (Waterproof, Dustproof), Anti-Impact: IK07, Suitable for Harsh Industrial Environments
|
-
|
High protection level, waterproof, dustproof and anti-impact, adapting to dusty, humid and harsh industrial on-site environments.
|
|
Anti-interference Performance
|
Meets IEC 61000-4 Standard, Anti-EMI, Anti-RFI, Anti-Surge, Anti-Static (±25 kV)
|
-
|
Metal shielding case design, excellent anti-interference ability, ensuring stable operation in complex industrial electromagnetic environments.
|
|
Physical Dimensions (W×H×D)
|
96 × 96 × 110 (±0.5) mm (Panel-mounted); 100 × 100 × 120 mm (Wall-mounted)
|
mm
|
Compact structural design, standardized installation size, easy to install and disassemble on industrial production lines.
|
|
Weight
|
Approx. 450 ~ 550 g (Net Weight, Without Cable & Packaging)
|
g
|
Lightweight design, convenient for transportation, installation and maintenance, without increasing installation load.
|
|
Protection Functions
|
Short-Circuit Protection, Overload Protection, Reverse Polarity Protection, Overheating Protection, Under-voltage Protection
|
-
|
Comprehensive protection design, quick response to abnormalities, protecting the transmitter and connected control equipment from damage.
|
|
Certifications & Compliance
|
ISO 9001, CE, UL, IEC 61000-4, IEC 60529, RoHS, FCC, HART 7 Compatible
|
-
|
Complies with international quality, safety and environmental protection standards, applicable to global industrial automation projects.
|
|
Warranty Period
|
1 Year (Original E+H Factory Warranty, Covering Manufacturing Defects)
|
Year
|
Professional after-sales support provided by E+H, global after-sales network, ensuring timely maintenance and problem solving.
|
|
Compatibility
|
Siemens, Allen-Bradley, Mitsubishi, Omron Series PLCs, DCS Systems, Industrial Touch Screens
|
-
|
Plug-and-play, perfect compatibility with mainstream industrial control systems, easy to debug and put into use.
|
|
Operating Life
|
≥100,000 Hours (Continuous Operation Under Rated Conditions)
|
Hours
|
High-quality industrial components and strict production process, ensuring long-term stable operation, reducing maintenance cost.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
