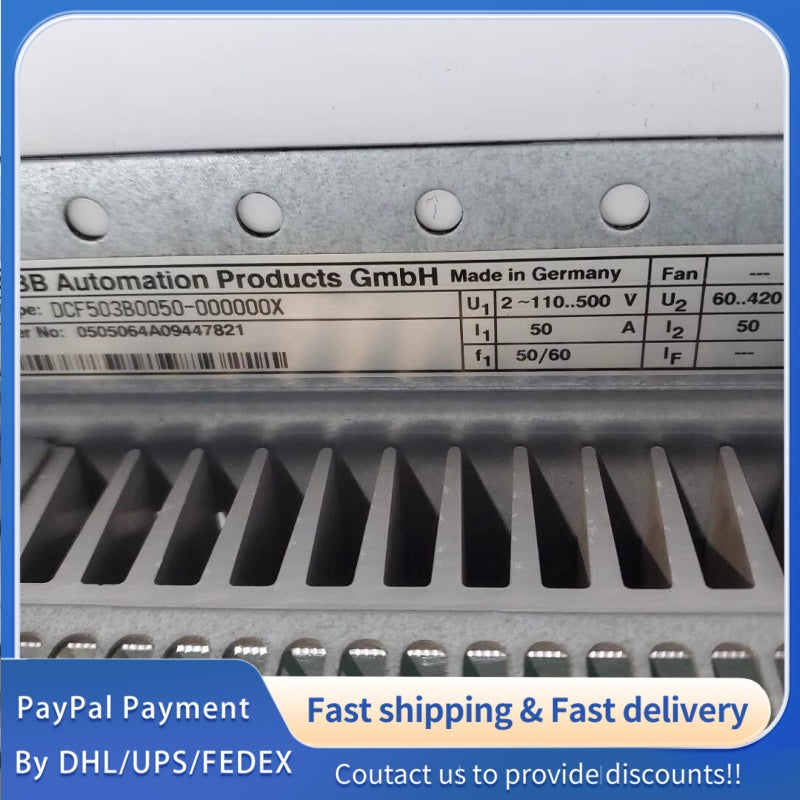

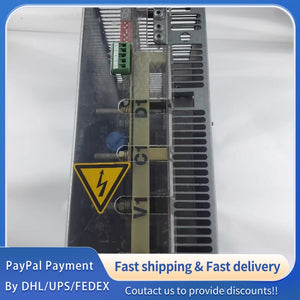

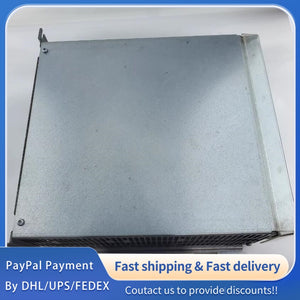

1 PCS used ABB DCF503B0050-0000000 Field Exciter module#LYQ007
1 PCS used ABB DCF503B0050-0000000 Field Exciter module#LYQ007
| Parameter | Value |
|---|---|
| Product Type | External Field Exciter Module |
| Model | DCF503B0050-0000000 |
| Order Code | 3ADT209019R0201 |
| Output Current Range | 0.3 – 50 ADC |
| Control Type | Half‑controlled single‑phase bridge (1‑quadrant) |
| AC Input Voltage | 110 V (–15%) … 500 V (+10%); single‑phase |
| Max Supply Voltage | 500 VAC (690 VAC with autotransformer) |
| Input Frequency | 45 … 65 Hz |
| AC Isolation Voltage | 690 V |
| Line Reactor | 160 μH; 45–65 Hz |
| Inrush Current | < 5 A / 20 ms |
| Control Power Supply | 115 / 230 VAC (auto‑ranging) |
| Control Power Consumption | 15 W; 30 VA |
| Communication Interface | RS485 (Modbus RTU) |
| Baud Rate (Default) | 9600 bps, 8 data bits, 1 stop bit, odd parity |
| Control Board | SDCS‑FEX‑32 |
| Dimensions (W×H×D) | 347 mm × 125 mm × 370 mm |
| Net Weight | Approx. 10.36 kg |
| Operating Temperature | –20 °C … +60 °C |
| Protection Class | IP20 |
| Certifications | CE, UL, IEC |
| Country of Origin | Germany |
