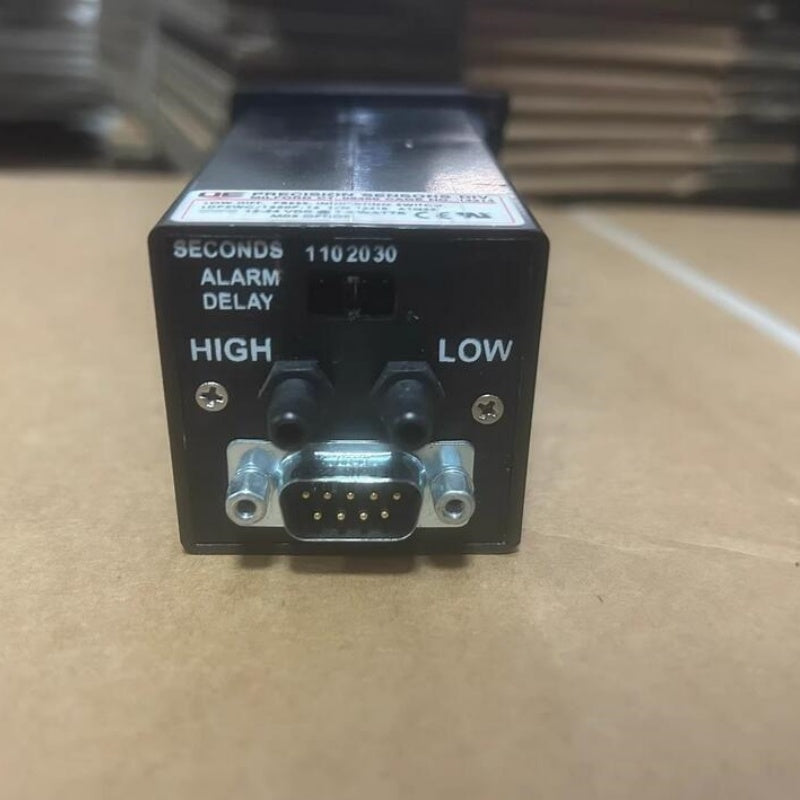

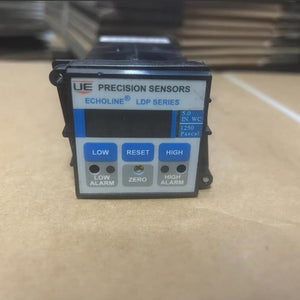

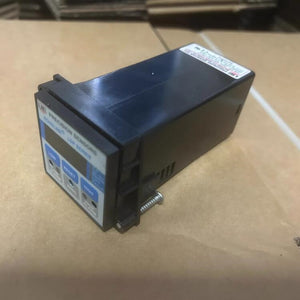

1 PCS used UE ECHOLINE LDP5WC/1250P-16 sensor #LYQ007
1 PCS used UE ECHOLINE LDP5WC/1250P-16 sensor #LYQ007
| Parameter | Specification |
|---|---|
| Manufacturer | UE Precision Sensors (United Electric Controls) |
| Product Line | ECHOLINE® LDP Series |
| Model | LDP5WC/1250P-16 |
| Measuring Principle | Low Differential Pressure Monitor / Switch |
| Measurement Range | 0–5 inches WC (0–1250 Pa) |
| Display Accuracy (0–40°C) | ±1.0% of Full Scale (LDP standard) |
| Switch Repeatability | ±1.5% of Full Scale (LDP standard) |
| Switch Output | SPDT dry contact, 1 A @ 30 VDC (latching as standard; M01 = non-latching) |
| Analog Output | 4–20 mA or 0–10 VDC (non-isolated, current sinking) |
| Set Point Adjustment | 5–95% of range (field adjustable) |
| Time Delay | 1, 10, 20, or 30 seconds (field selectable; default 10 s) |
| Overpressure Rating | ±80 inches WC (for ranges ≥1 inch WC) |
| Proof Pressure | ±14.5 psig (for ranges ≥1 inch WC) |
| Burst Pressure | 20 psig (LDP standard); 150 psig (Corrosive Media variant) |
| Media Compatibility | Clean dry air, inert gases (Corrosive Media variant: 316L SST/FKM wetted) |
| Operating Temperature | 0–40°C (standard); 0–55°C (Corrosive Media variant) |
| Power Supply | 12–24 VDC, ~1.4 W |
| Enclosure | 1/16 DIN panel mount, polycarbonate housing |
| Process Connections | Push-in 1/4" OD or barbed 1/8" FNPT fittings |
| Approvals | UL508, UL991, CE, S2-0200 |
| Key Features | Maintenance Mode, ECHO Diagnostics, LED alarm flash, local reset |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
