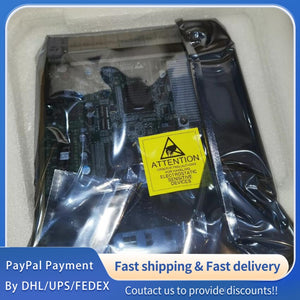

1 PCS new Raisecom iTN8800-II-NXU Main Control Board #LYQ007
1 PCS new Raisecom iTN8800-II-NXU Main Control Board #LYQ007
| Parameter Category | Parameter Name | iTN8800-II-NXU Specification |
|---|---|---|
| Basic Information | Product Model | iTN8800-II-NXU |
| Manufacturer | Raisecom Technology Co., Ltd. | |
| Product Type | Main Control & Management Board | |
| Chassis Compatibility | iTN8800-II-DC (2RU chassis) | |
| Slot Position | Slots 1–2 (main control slots) | |
| Interface Configuration | Console Port | 1 × USB Console (local management) |
| Management Port | 1 × RJ45 NEG (network management) | |
| Clock Port | 1 × 2Mbps/2MHz BITS (RJ45) | |
| Debug Port | 1 × Debug (reserved) | |
| Expansion Ports | EXT1, EXT2 (reserved) | |
| Redundancy & Reliability | Redundancy Mode | Dual main control 1:1 hot backup |
| Switchover Time | < 50ms (carrier‑grade) | |
| Hot‑Swappable | Yes (supports online replacement) | |
| Performance | Switching Capacity | 120Gbps (system switching fabric) |
| Forwarding Performance | Line‑rate packet forwarding | |
| MTU | 9600 bytes (jumbo frame support) | |
| Protocols Supported | Management | SNMP v1/v2c/v3, Telnet, SSH, HTTP/HTTPS |
| Routing | IPv4/IPv6 dual stack, OSPF, BGP, MP‑BGP | |
| MPLS | MPLS‑TP, IP/MPLS, LDP, RSVP‑TE | |
| Protection | G.8031, G.8032, G.8131, LAG/LACP, BFD | |
| OAM | IEEE 802.3ah, 802.1ag, ITU‑T Y.1731 | |
| Synchronization | SyncE (ITU‑T G.8261/G.8262), IEEE 1588v2 | |
| Electrical Parameters | Power Input | -48V DC (-40V ~ -57V) |
| Power Consumption | ≤ 35W (typical) | |
| Isolation | 1kV surge protection | |
| Mechanical Parameters | Dimensions | Standard 19‑inch plug‑in module |
| Weight | ≤ 1.2kg (net) | |
| Installation | Front‑mounted, hot‑swappable | |
| Environmental Parameters | Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -25°C ~ 65°C | |
| Operating Humidity | 10% ~ 90% (non‑condensing) | |
| Vibration/Shock | Complies with telecom equipment standards | |
| Protection Level | IP30 (chassis‑mounted) | |
| Certifications | Compliance | IEC 60950, CE, FCC, RoHS |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
