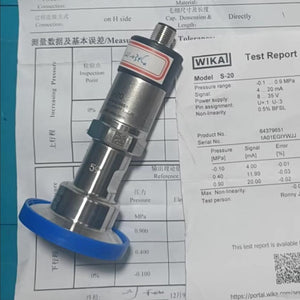

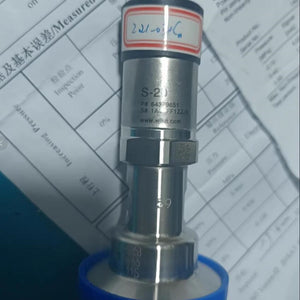

1 PCS new WIKA S-20 (with 990.22 Diaphragm Seal) Pressure Transmitter #LYQ007
1 PCS new WIKA S-20 (with 990.22 Diaphragm Seal) Pressure Transmitter #LYQ007
| Parameter | Specification |
|---|---|
| Model | S-20 (with 990.22 sanitary diaphragm seal) |
| Type | Gauge / Absolute pressure transmitter |
| Measuring Range (S-20) | 0...0.04 bar to 0...160 MPa (0...10 to 0...20,000 psi)WIKA |
| Non-Linearity | 0.125%, 0.25%, or 0.5% BFSL (Best Fit Straight Line) |
| Output Signal | 4...20 mA (2-wire), DC 0...10 V, DC 1...5 V (3-wire)WIKA |
| Power Supply | 12...35 V DC (for 4...20 mA) ; 15...35 V DC (for voltage output) |
| Electrical Connection | Angular connector DIN 175301-803 A ; M12 x 1 (optional) |
| Process Connection (990.22) | Sanitary clamp (Tri-Clamp) DN38 (1.5"), DN50.5 (2") |
| Seal Material (990.22) | Diaphragm & Wetted Parts: Stainless steel 1.4435 (316L) |
| Fill Fluid (990.22) | KN92 (food/pharma grade mineral oil, FDA/USP/EP compliant) |
| Surface Roughness | Ra ≤ 0.76 µm (Ra ≤ 0.30 µin) per ASME BPE |
| Overpressure Limit | 2 x rated pressure |
| Shock Resistance | 100 g, 6 ms (IEC 60068-2-27) |
| Vibration Resistance | 10 g, 10...2000 Hz (IEC 60068-2-6) |
| Media Temperature (Standard) | -40 °C to +100 °C ; (with 990.22: +10 °C to +80 °C, SIP to +130 °C) |
| Ambient Temperature | -40 °C to +85 °C |
| Protection Class | IP67 (IP68 / IP6K9K optional) |
| Approvals | cULus, ATEX (optional) |
| Long-Term Stability | < 0.1 % per year |
| Service Life | 100 million load cycles |
| Data Sheet Reference | WIKA PE 81.61 (English) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
