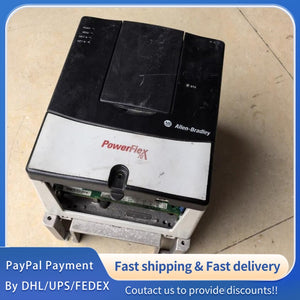

1 PCS used AB Inverter 20AC8P7A0AYNANC0 #LYQ007
1 PCS used AB Inverter 20AC8P7A0AYNANC0 #LYQ007
1 PCS used AB Inverter 20AC8P7A0AYNANC0 #LYQ007
Product Overview: AB Inverter Model 20AC8P7A0AYNANC0, a high-performance industrial-grade inverter independently developed and manufactured by Rockwell Automation (Allen-Bradley), USA, is a core component for AC motor speed regulation and control. It integrates advanced frequency conversion control technology, stable electrical performance, compact structural design and comprehensive protection functions, specially designed for scenarios requiring precise speed regulation, energy saving and reliable operation in industrial automation production lines. The product undergoes strict factory precision calibration, full-process quality inspection and aging testing in accordance with Rockwell Automation's global strict quality standards, ensuring 100% brand-new original quality without any manual modification or secondary processing. It fully complies with international industrial electrical standards (IEC 61800, IEC 60947, ISO 9001) and relevant international certifications, featuring strong anti-interference ability, stable working performance, long service life and easy installation. It is perfectly compatible with AB PLCs, contactors, encoders and other industrial control equipment, widely used in metallurgy, mining, power generation, petroleum, chemical industry, machinery manufacturing, building automation and other fields, providing professional and reliable speed regulation and control support for the safe, stable and efficient operation of industrial production systems.
|
Parameter
|
Specification (20AC8P7A0AYNANC0)
|
Unit
|
AB Factory Notes (Original Description)
|
|---|---|---|---|
|
Brand & Origin
|
Rockwell Automation (Allen-Bradley), USA, Original Factory, Brand New Genuine Product
|
-
|
100% brand-new original product manufactured by Allen-Bradley official factory, in line with global quality management system standards.
|
|
Product Series & Model
|

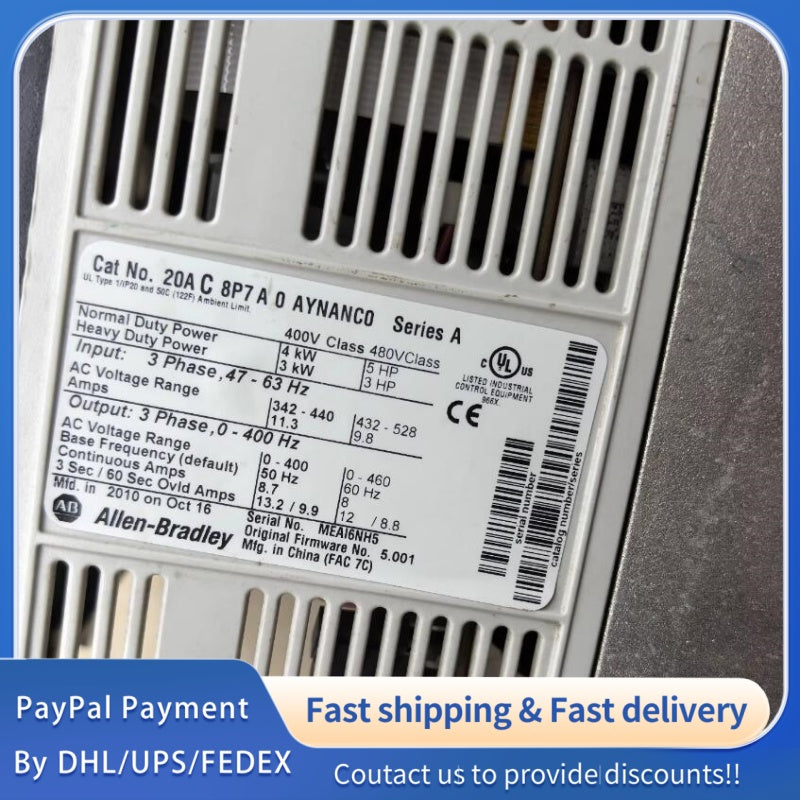

Series: PowerFlex 525; Model: 20AC8P7A0AYNANC0; Part Number: 20AC8P7A0AYNANC0 (Standard Factory Code)
|
-
|
Original factory model and part number, unchanged; dedicated for AB PowerFlex 525 series, standardized design for easy replacement and matching.
|
|
Product Category
|
Industrial Grade Inverter, AC Motor Speed Regulator, Variable Frequency Drive (VFD), Core Control Component
|
-
|
Integrates frequency conversion control, signal processing, energy saving and protection functions, serving as a key component in AC motor speed regulation circuits.
|
|
Input Voltage
|
AC 400-480V, 3-Phase; Allowable Voltage Fluctuation: ±10%; Frequency: 50/60 Hz ±5%
|
V AC, Hz
|
Stable input voltage design, strong anti-fluctuation ability, adapting to harsh industrial on-site power supply environment.
|
|
Output Voltage
|
AC 0-480V, 3-Phase; Adjustable Voltage: 0-100% of Input Voltage; Frequency Range: 0-600 Hz
|
V AC, Hz
|
Stepless voltage and frequency regulation, precise speed control, meeting the needs of different industrial motor speed regulation scenarios.
|
|
Output Current
|
Typical: 8.7A; Maximum: 10.4A (Overload, 1 Minute); 13.1A (Peak, 3 Seconds)
|
A
|
Low power consumption design, built-in overcurrent protection circuit, preventing component damage due to excessive current.
|
|
Rated Power
|
4.0 kW (5.0 HP) at 480V, 3-Phase, 50/60 Hz; Efficiency: ≥95% (Full Load)
|
kW (HP), %
|
High efficiency energy-saving design, reducing energy consumption and operating costs for industrial production.
|
|
Control Mode
|
V/F Control, Vector Control (Sensorless); Optional Closed-Loop Vector Control with Encoder
|
-
|
Dual control mode optional, strong versatility; sensorless vector control ensures precise speed regulation and stable operation.
|
|
Speed Regulation Accuracy
|
±0.5% (V/F Control); ±0.1% (Sensorless Vector Control); ±0.01% (Closed-Loop Vector Control)
|
-
|
High speed regulation accuracy, ensuring stable motor operation and improving production process precision.
|
|
Signal Response Time
|
≤10ms (Input Signal); ≤5ms (Output Signal); ≤2ms (Control Signal)
|
ms
|
Ultra-fast signal response, ensuring real-time transmission and execution of control commands, improving system control efficiency.
|
|
Communication Interface
|
Ethernet (RJ45), RS-485, USB Host/Device, AB DeviceNet, AB ControlNet, PROFINET
|
-
|
Multi-interface design, supporting mainstream industrial communication protocols, facilitating remote monitoring and device connection.
|
|
Operating Temperature Range
|
0 ~ 50 °C (Operating); -40 ~ 70 °C (Storage); No Frost Damage
|
℃
|
Built-in efficient heat dissipation structure, high and low temperature resistance, adapting to various harsh industrial temperature environments.
|
|
Relative Humidity
|
5 ~ 95% (Non-condensing), No Dew Formation, Anti-moisture Design
|
%
|
Internal components adopt anti-moisture and anti-corrosion coating, effectively preventing moisture damage and extending service life.
|
|
Anti-interference Performance
|
Meets IEC 61000-4 Standard, Anti-EMI, Anti-RFI, Anti-surge, Anti-static (±4kV)
|
-
|
Excellent anti-interference ability, ensuring stable signal transmission and operation in complex industrial electromagnetic environments.
|
|
Protection Level
|
IP20 (Inverter Body); IP30 (With Protection Cover, Optional)
|
-
|
Standard IP20 protection, dustproof; optional IP30 protection cover for harsh dust environments.
|
|
Physical Dimensions (W×H×D)
|
140 × 250 × 190 (±1) mm (Without Protection Cover)
|
mm
|
Compact structural design, saving equipment cabinet space, easy to install and disassemble on site.
|
|
Weight
|
Approx. 3.5 ~ 4.0 kg (Net Weight, Without Packaging)
|
kg
|
Reasonable weight design, convenient for transportation, installation and maintenance, without increasing cabinet load.
|
|
Protection Functions
|
Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Phase Loss, Ground Fault, Motor Overload Protection
|
-
|
Integrated multiple comprehensive protection functions, quick response to abnormalities, effectively protecting the inverter and connected motor.
|
|
Certifications & Compliance
|
ISO 9001, CE, UL, IEC 61800, IEC 60947, RoHS, FCC
|
-
|
Complies with international quality, safety and environmental protection standards, applicable to global industrial control projects.
|
|
Warranty Period
|
1 Year (Original AB Factory Warranty, Covering Manufacturing Defects)
|
Year
|
Professional after-sales support provided by Rockwell Automation, including free technical guidance and maintenance services.
|
|
Compatibility
|
AB SLC 500/ControlLogix/CompactLogix Series PLCs, AB PowerFlex Series Inverters, AB Encoders
|
-
|
Plug-and-play, perfect matching with AB industrial control system, no need to modify parameters, easy to debug and use.
|
