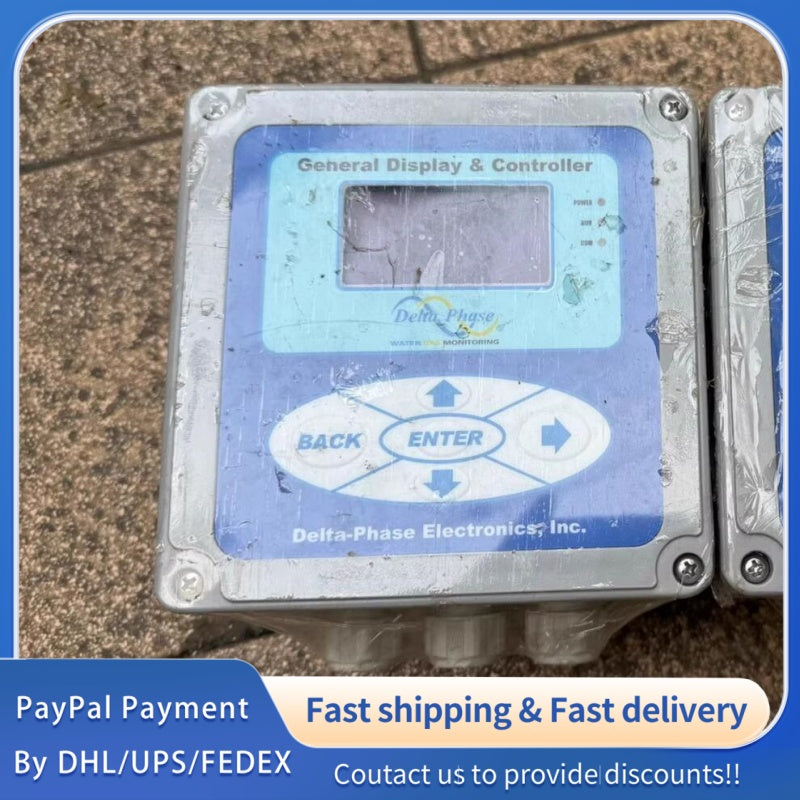

1 PCS used Delta Phase GDC-01-AC Split-Type Ultrasonic Level Gauge #LYQ007
1 PCS used Delta Phase GDC-01-AC Split-Type Ultrasonic Level Gauge #LYQ007
1 PCS used Delta Phase GDC-01-AC Split-Type Ultrasonic Level Gauge #LYQ007
Product Overview: Delta Phase GDC-01-AC Split-Type Ultrasonic Level Gauge is a high-precision, industrial-grade level measuring instrument independently developed and manufactured by Delta Phase official factory. As a professional split-type level monitoring device, it is specially designed for continuous, accurate measurement and real-time monitoring of liquid level in various industrial scenarios, integrating advanced ultrasonic transmission/reception technology, high-precision signal processing module, and separate transducer-display structure. The product undergoes strict factory calibration, full-process quality inspection and aging testing in accordance with Delta Phase global strict quality standards, ensuring 100% brand-new original quality without any manual modification or secondary processing. It fully complies with international industrial measurement standards (IEC 61131-2, ISO 9001) and relevant international certifications, featuring high measurement accuracy, stable signal transmission, strong environmental adaptability and reliable long-term operation. With split-type design, it effectively solves the problem of difficult installation and maintenance in harsh on-site environments, and is widely used in water treatment, chemical industry, petroleum, metallurgy, food and beverage, environmental protection and other fields, providing professional and reliable liquid level monitoring support for industrial production safety and efficient operation.
|
Parameter
|
Specification (Delta Phase GDC-01-AC)
|
Unit
|
Delta Phase Factory Notes (Original Description)
|
|---|---|---|---|
|
Brand & Origin
|
Delta Phase, Original Factory, Brand New Genuine Product
|
-
|
100% brand-new original product manufactured by Delta Phase official factory, in line with global quality management system standards.
|
|
Product Model & Type
|
Model: GDC-01-AC; Product Name: Split-Type Ultrasonic Level Gauge; Power Type: AC
|
-
|
Original factory model, unchanged; split-type design, AC power supply, dedicated for industrial liquid level measurement scenarios.
|
|
Product Category
|
Industrial Grade Split-Type Ultrasonic Level Gauge, Liquid Level Measuring Instrument
|
-
|
Split-type structure (transducer + controller), integrating liquid level measurement, signal processing and data display functions.
|
|
Measurement Range
|
0 ~ 20 m (Any Segment Optional); Optional Extended Range: 0.5 ~ 1 m (Static Clean Environment)
|
m
|
Wide measurement range, covering most industrial liquid level measurement needs; range accuracy based on static clean environment.
|
|
Measurement Accuracy
|
0.25 ~ 0.5% (Full Range); ±1 ~ ±3 mm (Outside Blind Zone Multiple, 25℃)
|
%, mm
|
High measurement accuracy, calibrated with standard test equipment; accuracy guaranteed under standard temperature and blind zone requirements.
|
|
Detection Blind Zone
|
≤100 ~ 300 mm (Customizable According to Range and User Requirements)
|
mm
|
Adjustable blind zone, customizable according to on-site measurement needs to avoid measurement errors caused by tank top obstacles.
|
|
Ultrasonic Frequency
|
20 ~ 40 kHz (Industrial Grade High Stability Transducer)
|
kHz
|
High-stability ultrasonic frequency, strong anti-interference ability, suitable for complex industrial on-site environments.
|
|
Output Signal
|
4 ~ 20 mA Analog Signal; RS485 Digital Signal (Optional One); Switch Capacity Customizable
|
-
|
Dual output signal options, compatible with most industrial control systems; switch capacity customizable by user request during ordering.
|
|
Working Power Supply
|
AC 220V ±10%; Optional DC 24V (Customizable); Frequency: 50 ±1 Hz
|
V AC/DC, Hz
|
Dual power supply options, stable power supply performance, adapting to different on-site power supply conditions.
|
|
Operating Temperature Range
|
0 ~ +40 ℃ (Default); Wider Range Customizable; Storage Temperature: -30 ~ 50 ℃
|
℃
|
Standard temperature range meets most industrial scenarios; wider temperature range available for customization according to user needs.
|
|
Relative Humidity
|
5 ~ 95% (Non-condensing), No Dew Formation
|
%
|
Anti-moisture design, internal components with anti-corrosion coating, adapting to high-humidity environments such as water treatment workshops.
|
|
Protection Level
|
IP65 (Transducer & Controller); Optional Higher Protection Level Customization
|
-
|
IP65 protection level, dustproof and waterproof, suitable for harsh industrial on-site use; higher protection level available for customization.
|
|
Physical Dimensions
|
Controller: 200 (H) × 86 (W) × 135 (D) mm; Transducer: Customizable; Installation Hole: Ф68~70 mm
|
mm
|
Standard controller size, easy to install; transducer size customizable; installation hole compatible with standard industrial mounting specifications.
|
|
Installation Method
|
Threaded Installation (M31×1.5); Optional Flange Installation (Customizable)
|
-
|
Standard threaded installation, easy to disassemble and maintain; flange installation available for customization according to on-site needs.
|
|
Wiring Mode
|
Four-Wire System; Lead Length: 0.5 m (Default), Customizable Extension
|
-
|
Four-wire system wiring, stable signal transmission; lead length can be customized to meet split-type installation distance requirements.
|
|
Weight
|
Controller: Approx. 0.8 ~ 1.2 kg; Transducer: Approx. 0.5 ~ 0.8 kg (Depends on Customization)
|
kg
|
Lightweight design, easy to transport, install and maintain; weight may vary slightly according to customized specifications.
|
|
Certifications & Compliance
|
ISO 9001, CE, RoHS, FCC, IEC 61131-2
|
-
|
Complies with international quality, safety and environmental protection standards, applicable to global industrial liquid level measurement projects.
|
|
Warranty Period
|
1 Year (Original Delta Phase Factory Warranty, Covering Manufacturing Defects)
|
Year
|
Professional after-sales support provided by Delta Phase, including free calibration guidance and technical maintenance services.
|
|
Calibration Interval
|
12 Months (Recommended); 24 Months (Maximum, Under Normal Use)
|
Months
|
Regular calibration recommended to ensure long-term measurement accuracy; compatible with Delta Phase official calibration services.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
