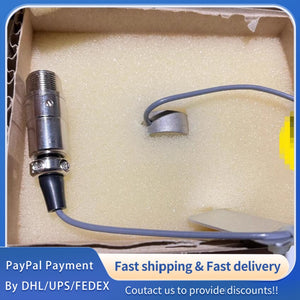

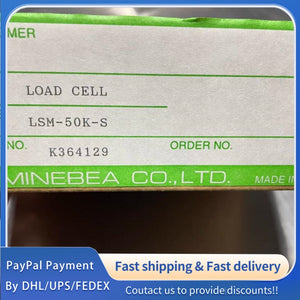

1 PCS NEW Minebea NMB LSM‑50K‑S Load Cell #LYQ007
1 PCS NEW Minebea NMB LSM‑50K‑S Load Cell #LYQ007
| Item | Specification |
|---|---|
| Part Number | LSM‑50K‑S |
| Rated Capacity | 490.3 N {50 kgf} |
| Safe Overload | 150 % R.C. |
| Ultimate Overload | 200 % R.C. |
| Rated Output | 0.6 mV/V ± 0.1 mV/V |
| Non‑linearity | 1 % R.O. |
| Hysteresis | 1 % R.O. |
| Repeatability | 1 % R.O. |
| Excitation Voltage (Recommended) | 5 V or less |
| Excitation Voltage (Maximum) | 12 V |
| Zero Balance | ± 0.1 mV/V |
| Input Resistance | 350 Ω ± 5 Ω |
| Output Resistance | 350 Ω ± 5 Ω |
| Insulation Resistance | ≥ 1,000 MΩ (DC 50 V, bridge‑to‑body) |
| Compensated Temperature Range | 0 °C to 50 °C |
| Safe Operating Temperature | −10 °C to 60 °C |
| Temperature Effect on Zero | 1.0 % R.O. / 10 °C |
| Temperature Effect on Output | 1.0 % LOAD / 10 °C |
| Cable | φ1.0, 4‑core shielded, 0.5 m, direct‑mount |
| Protection Class | IP64 or equivalent |
| Element Material | Stainless steel |
| Weight | Approx. 2 g |
| Durability | 1,000,000 cycles at rated load |
