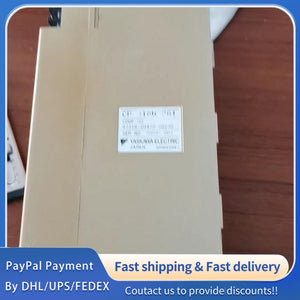

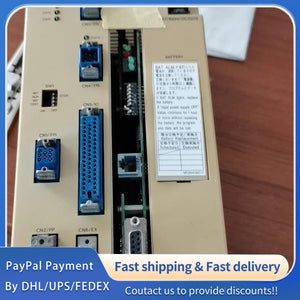

1 PCS used Yaskawa Controller CP-316H (87316-20470) CP-316H/261 #LYQ007
1 PCS used Yaskawa Controller CP-316H (87316-20470) CP-316H/261 #LYQ007
1 PCS used Yaskawa Controller CP-316H (87316-20470) CP-316H/261 #LYQ007
1. General Information (Original Yaskawa Factory Standard)
|
Parameter
|
Specification (CP-316H: 87316-20470)
|
Specification (CP-316H/261)
|
Unit
|
Notes (Factory Description)
|
|
Brand
|
Yaskawa (Yaskawa Electric Corporation)
|
Yaskawa (Yaskawa Electric Corporation)
|
-
|
Genuine Yaskawa Original, 100% Authentic[2][3]
|
|
Product Model
|
CP-316H (Order Code: 87316-20470)
|
CP-316H/261
|
-
|
Original Factory Model, Factory Calibrated[2][3]
|
|
Product Name
|
Yaskawa CP-316H Industrial Controller
|
Yaskawa CP-316H/261 Industrial Controller
|
-
|
High-Precision Industrial Control, Stable Performance[3]
|
|
Product Type
|
Industrial-Grade Controller, Programmable Control Module
|
Industrial-Grade Controller, Programmable Control Module
|
-
|
Suitable for Industrial Automation Control Scenarios[3]
|
|
Operating Voltage
|
24 VDC (Nominal); Allowable Range: 9 ~ 36 VDC (Wide Voltage)
|
24 VDC (Nominal); Allowable Range: 9 ~ 36 VDC (Wide Voltage)
|
VDC
|
Compatible with Industrial Standard Power Supply[3]
|
|
Power Consumption
|
Approx. 8 W (Typical, Full Load)
|
Approx. 8.5 W (Typical, Full Load)
|
W
|
Low Power Consumption, Energy-Saving[3]
|
|
I/O Channels
|
Local: 8 Digital Input / 4 Digital Output / 2 Analog Input / 2 Analog Output; Extendable to 256 Points
|
Local: 8 Digital Input / 4 Digital Output / 2 Analog Input / 2 Analog Output; Extendable to 256 Points
|
Channels
|
Support Remote Expansion, High Flexibility[3]
|
|
Analog Input Range
|
4-20 mA DC, 0-10 VDC; Accuracy: ±0.1% FS
|
4-20 mA DC, 0-10 VDC; Accuracy: ±0.1% FS
|
-
|
High Measurement Accuracy, Stable Signal Acquisition[3]
|
|
Analog Output Range
|
-10 V to 10 V, 0 to 10 V; Accuracy: ±1%
|
-10 V to 10 V, 0 to 10 V; Accuracy: ±1%
|
-
|
Precise Output Control, Adaptable to Different Sensors[3]
|
|
Program Capacity
|
16k Steps (256k Words)
|
16k Steps (256k Words)
|
Steps, Words
|
Adequate Capacity for Complex Control Programs[3]
|
|
Data Capacity
|
General Registers: 16384 Words; I/O Registers: 6400 Words Each (Input/Output)
|
General Registers: 16384 Words; I/O Registers: 6400 Words Each (Input/Output)
|
Words
|
Large Data Storage Space, Meets Industrial Needs[3]
|
|
Communication Interfaces
|
215/216 Interface, RS-232 Serial Port, Profibus DP Bus (Supports Fiber Optic Redundant Repeater)
|
215/216 Interface, RS-232 Serial Port, Profibus DP Bus (Supports Fiber Optic Redundant Repeater)
|
-
|
Stable Communication, Supports Redundant Transmission[3]
|
|
Operating Temperature Range
|
-10 ~ +70 °C (Ambient); Extendable to -40 ~ +85 °C (Optional)
|
-10 ~ +70 °C (Ambient); Extendable to -40 ~ +85 °C (Optional)
|
°C
|
Wide Adaptability, Suitable for Harsh Environments[3]
|
|
Storage Temperature Range
|
-40 ~ +85 °C; No Condensation
|
-40 ~ +85 °C; No Condensation
|
°C
|
Suitable for Long-Term Storage/Transportation[3]
|
|
Relative Humidity
|
5 ~ 95% RH (Non-Condensing)
|
5 ~ 95% RH (Non-Condensing)
|
% RH
|
Strong Humidity Resistance[3]
|
|
Protection Level
|
IP30 (Aluminum Reinforced Enclosure)
|
IP30 (Aluminum Reinforced Enclosure)
|
-
|
Dust-Tight, Suitable for Control Cabinet Installation[3]
|
|
Mounting Type
|
Standard 35 mm DIN Rail Mounting
|
Standard 35 mm DIN Rail Mounting
|
-
|
Easy to Install/Disassemble, Convenient Maintenance[3]
|
|
Dimensions (W×H×D)
|
Approx. 90 × 110 × 80 mm (Tolerance: ±0.5 mm)
|
Approx. 90 × 110 × 82 mm (Tolerance: ±0.5 mm)
|
mm
|
Compact Design, Saves Installation Space[3]
|
|
Weight
|
Approx. 0.45 kg (Including Housing & Connector)
|
Approx. 0.48 kg (Including Housing & Connector)
|
kg
|
Lightweight, Easy to Transport[3]
|
|
Certifications
|
CE Certified, EN55022 (EMC), EN61000 (Anti-Interference)
|
CE Certified, EN55022 (EMC), EN61000 (Anti-Interference)
|
-
|
Complies with International Industrial Standards[3]
|
|
Service Life
|
≥ 10 Years (Continuous Operation, Normal Condition); ≥ 50,000 Hours MTBF
|
≥ 10 Years (Continuous Operation, Normal Condition); ≥ 50,000 Hours MTBF
|
Years, Hours
|
Long Service Life, Low Maintenance[3]
|
|
Warranty Period
|
12 Months (Original Factory Warranty)
|
12 Months (Original Factory Warranty)
|
Months
|
Covers Manufacturing Defects[2]
|
|
Application
|
Industrial Automation, DCS System, Frequency Converter Control, Soft Start Control, Power Plant, Petrochemical, Water/Wastewater Treatment
|
Industrial Automation, DCS System, Frequency Converter Control, Soft Start Control, Power Plant, Petrochemical, Water/Wastewater Treatment
|
-
|
Widely Used in Various Industrial Scenarios[3]
|
|
Special Features
|
High Anti-Interference, Programmable, Practical and Durable
|
High Anti-Interference, Programmable, Enhanced Stability
|
-
|
Adaptable to Complex Industrial Control Requirements[3]
|
