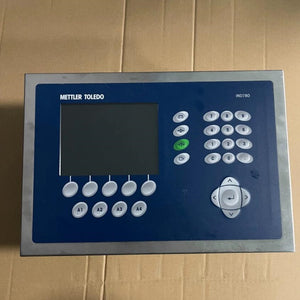

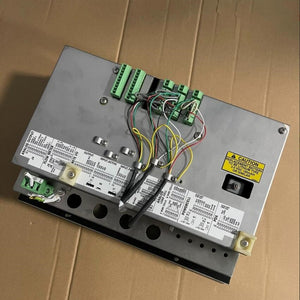

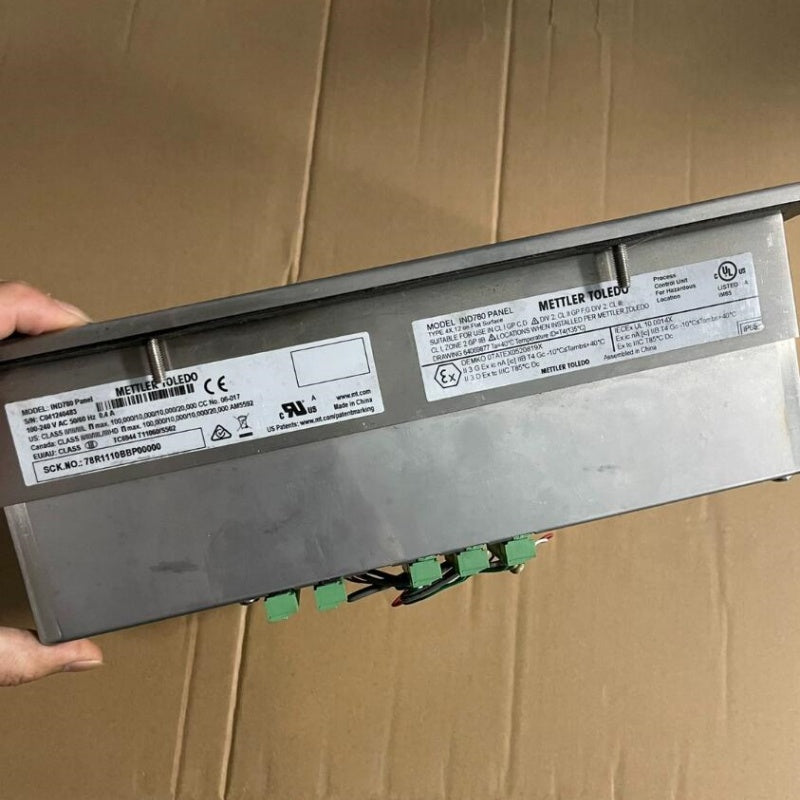

1 PCS used Mettler Toledo IND780 Panel weighting indicator #LYQ007
1 PCS used Mettler Toledo IND780 Panel weighting indicator #LYQ007
| Parameter | Specification |
|---|---|
| Product Type | IND780 Panel-mount Weighing TerminalMETTLER TOLEDO |
| Display | Graphical monochrome backlit LCD; 320 x 240 pixels; 5.7" (145 mm) QVGA; optional active TFT colorMETTLER TOLEDO |
| Display Update Rate | 10 HzMETTLER TOLEDO |
| Scale Channels | Up to 4 concurrent channels (Analog, IDNet, POWERCELL®, MT-SICS) with metrologically approved sumMETTLER TOLEDO |
| Analog Load Cell | 8 x 350 Ω per channel (2–3 mV/V); 16 total per terminal; 10 VDC excitation; 0.1 µV min sensitivityMETTLER TOLEDO |
| Internal A/D Rate | >366 HzMETTLER TOLEDO |
| Target Comparison Rate | 50 HzMETTLER TOLEDO |
| PLC Interface Rate | 20 HzMETTLER TOLEDO |
| Serial Interface Rate | 20 HzMETTLER TOLEDO |
| Resolution | 1,000,000 divisions (internally); Analog: 10,000d NTEP / 10,000e NMI; IDNet: scale-dependentMETTLER TOLEDO |
| Keypad | Flat membrane tactile keys; polyester overlay; 30 keys: 5 primary, 15 navigation/numeric, 15 soft/app (3x5 programmable, 4 app keys)METTLER TOLEDO |
| Power Supply | Universal AC 100–240 VAC, 49–61 Hz; 400 mA; Panel: 2-position removable terminal strip (16–12 AWG)METTLER TOLEDO |
| Enclosure Material | 304L stainless steel front plateMETTLER TOLEDO |
| Protection Rating | Type 4x / Type 12 (IP65 when mounted on flat surface)METTLER TOLEDO |
| Dimensions (HxWxD) | 220 x 320 x 105 mm (8.7 x 12.6 x 4.1 in)METTLER TOLEDO |
| Cutout Dimensions | 194 x 294 mmMETTLER TOLEDO |
| Operating Temp | -10 °C to 40 °C (14 °F to 104 °F); 10–95% RH non-condensingMETTLER TOLEDO |
| Storage Temp | -40 °C to 60 °C (-40 °F to 140 °F); 10–95% RH non-condensingMETTLER TOLEDO |
| Communications | Standard: 1x RS-232, 1x RS-232/422/485 (300–115,200 baud), Ethernet 10/100 Base-T, USB Host; Optional: 2x additional serial; PLC: PROFIBUS DP, EtherNet/IP, DeviceNet, ControlNet, ModbusTCP, Allen-Bradley Remote I/OMETTLER TOLEDO |
| Discrete I/O | Local: 4 isolated inputs (5–30 VDC sink/source; 5 VDC internal source), 4 isolated outputs (NO relay/SS, 30 VAC/VDC max 1 A); Remote: 4x6 isolated (60 VDC/250 VAC max 1 A each, total ≤2 A); Up to 8 remote pairs per terminalMETTLER TOLEDO |
| Units | Primary: lb, kg, g, ton, metric ton; Secondary: lb, kg, g, ton, metric ton, oz, ozt, dwt, customMETTLER TOLEDO |
| Safety Approvals | UL/cUL (UL60950-1, UL508, CSA 22.260950-1); CE (90/384/EEC, EN45501, 89/336/EEC, EN55022:1988 Class A); NTEP (CoC #06-017); Canada AM-5592; Europe NMI TC6944METTLER TOLEDO |
| Hazardous Area | Zone 2/22, Division 2 (Class I/II, Groups A–D, F–G) when installed per drawing 174020RMETTLER TOLEDO |
| Software Features | TraxDSP™ filtering, TraxEMT™ maintenance, CalFREE™, CalTest™, SmartTrac™, Alibi Memory (256k records), Event Logging, MinWeigh™, 4 security levels, 10 print templates, 99 message stringsMETTLER TOLEDO |
