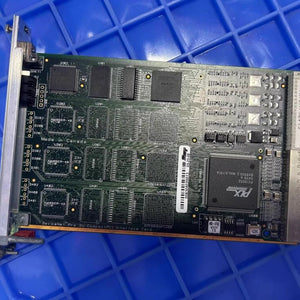

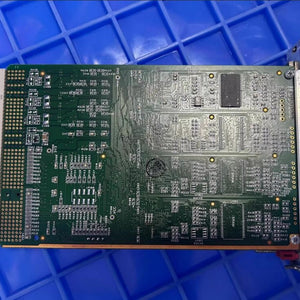

1 PCS used AMAT 0190-16926 DeviceNet Scanner Board #LYQ007
1 PCS used AMAT 0190-16926 DeviceNet Scanner Board #LYQ007
| Parameter | Details |
|---|---|
| Part Number | 0190-16926 |
| Manufacturer | Applied Materials (AMAT) |
| Product Type | DeviceNet Scanner Interface Board |
| Form Factor | CompactPCI (cPCI) 3U |
| DeviceNet Compliance | ODVA DeviceNet Specification Release 2.0 |
| Communication Baud Rates | 125 kbps, 250 kbps, 500 kbps |
| Network Capacity | Supports up to 63 DeviceNet nodes (0-63) |
| Backplane Interface | CompactPCI bus, 32-bit/33MHz |
| Isolation | Galvanic isolation between DeviceNet network and backplane (2500Vrms) |
| Power Requirements | +5V DC @ 0.8A (max.) from cPCI backplane |
| DeviceNet Power Load | 50mA (max.) @ 24V DC |
| Status Indicators | LED indicators for Module Status, Network Status, Communication Activity |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Relative Humidity | 5% – 95% (non-condensing) |
| Vibration Resistance | 3 orthogonal axes, 4-100Hz sine wave |
| Shock Resistance | 30G, 11ms duration (3 axes) |
| Dimensions (H x W x D) | 100mm x 160mm x 20mm (3U cPCI standard) |
| Weight | 0.31 kg (0.68 lbs) |
| Firmware Support | Supports DeviceNet Master/Slave modes, Explicit & I/O Messaging |
| Certifications | CE, UL Recognized |
| Typical Applications | Semiconductor manufacturing equipment, Factory automation I/O control |
