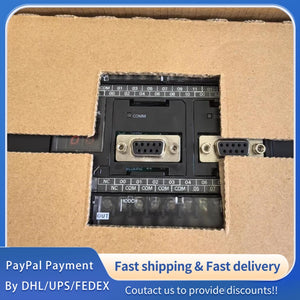

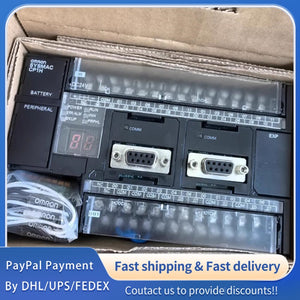

1 PCS NEW Omron CP1H-XA40DT-D Programmable Controller #LYQ007
1 PCS NEW Omron CP1H-XA40DT-D Programmable Controller #LYQ007
1 PCS NEW Omron CP1H-XA40DT-D Programmable Controller #LYQ007
General Information (Omron Original Factory Standard)
Model Overview: Omron CP1H-XA40DT-D, Original Japanese Factory Product, Brand New Genuine, Factory Calibrated, No Manual Modification. It is a high-performance compact programmable controller (PLC), specially designed for small and medium-sized industrial automation control scenarios. The controller integrates powerful logic control, analog control, high-speed counting and pulse output functions, featuring compact structure, fast processing speed, strong anti-interference ability and easy programming. It fully complies with Omron original factory quality standards, IEC 61131-2 industrial control specifications and global industrial automation application requirements[1][2]. The model coding conforms to Omron CP1H series product specifications, corresponding to CPU type, I/O configuration, power supply mode and communication function[1][2].
|
Parameter
|
Specification (CP1H-XA40DT-D)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand
|
Omron (Japan, Original Factory, Brand New Genuine Product)
|
-
|
100% brand new Omron original product, produced in Japan in strict accordance with Omron original factory quality control standards, factory calibrated and performance tested before delivery[1][2].
|
|
Product Model
|

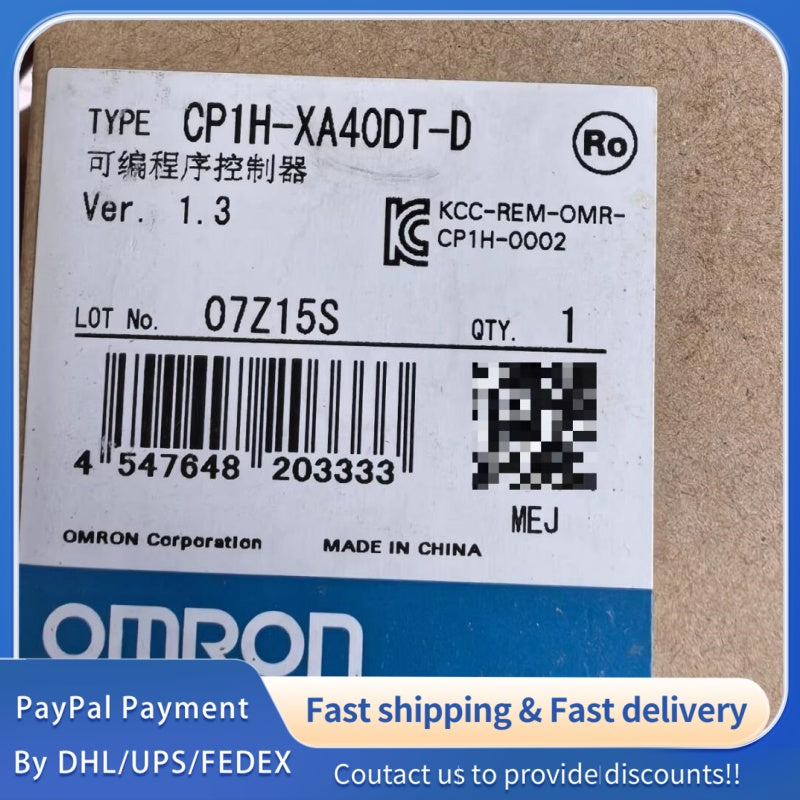

CP1H-XA40DT-D (Order Code: CP1H-XA40DT-D; Factory Code: CP1HXA40DTD)
|
-
|
Original factory model, unchanged, belonging to Omron CP1H series compact PLC; model coding conforms to Omron industrial programmable controller standard[1][2].
|
|
Product Type
|
Compact Programmable Controller (PLC), Industrial Automation Controller
|
-
|
Specialized for automatic control of small and medium-sized industrial automation equipment, integrating multiple control functions, applicable to various industrial automation scenarios[1][2].
|
|
CPU Type
|
32-bit RISC CPU; Processing Speed: 0.1 μs per Basic Instruction
|
μs
|
High-speed 32-bit RISC CPU, fast instruction processing speed, ensuring efficient operation of complex control programs[1][2].
|
|
I/O Configuration
|
Digital Input: 24 Points (NPN/PNP Selectable); Digital Output: 16 Points (Transistor, NPN, Open Collector)
|
Points
|
Flexible input type selection, transistor output with fast response speed, suitable for high-frequency switching control scenarios[1][2].
|
|
Analog Input/Output
|
Built-in: 2 AI (Voltage/Current Selectable) + 1 AO (Voltage/Current Selectable); Expandable via Special Modules
|
Channels
|
Built-in analog I/O meets basic analog control needs; expandable design adapts to complex control system upgrades[1][2].
|
|
Analog Input Range
|
Voltage: 0 ~ 10 V DC, -10 ~ 10 V DC; Current: 4 ~ 20 mA DC; Resolution: 1/4000
|
V DC, mA DC
|
Multiple input ranges selectable, high resolution, ensuring accurate collection of analog signals[1][2].
|
|
Analog Output Range
|
Voltage: 0 ~ 10 V DC, -10 ~ 10 V DC; Current: 4 ~ 20 mA DC; Resolution: 1/4000
|
V DC, mA DC
|
Multiple output ranges selectable, high resolution, ensuring accurate output of analog control signals[1][2].
|
|
High-Speed Counter
|
Built-in 6 Channels; Maximum Frequency: 100 kHz (Differential Input), 50 kHz (Sink Input)
|
kHz, Channels
|
High-frequency counting function, suitable for speed measurement, position control and other high-speed signal processing scenarios[1][2].
|
|
Pulse Output
|
Built-in 4 Channels; Maximum Frequency: 100 kHz (CW/CCW, Pulse Train); Support Positioning Control, Speed Control
|
kHz, Channels
|
High-frequency pulse output, supporting various motion control modes, suitable for servo motor, stepping motor control[1][2].
|
|
Supply Voltage
|
DC 24 V ±10%; Power Consumption: ≤ 25 W (Including Built-in I/O)
|
V DC, W
|
Stable DC voltage input, adaptable to industrial power supply environments, low power consumption[1][2].
|
|
Program Memory
|
Built-in 20 kSteps; Expandable to 80 kSteps via Memory Card
|
kSteps
|
Adequate built-in program memory, expandable design meets complex control program requirements[1][2].
|
|
Data Memory
|
Built-in 10 kWords (SRAM); Support Data Retention via Super Capacitor (≥ 10 Days without Power)
|
kWords, Days
|
Large-capacity data memory, reliable data retention function, avoiding data loss when power is off[1][2].
|
|
Communication Interface
|
Built-in RS-232C, RS-485; Support Host Link, NT Link, Modbus RTU Protocol; Expandable to Ethernet
|
-
|
Multiple built-in communication interfaces, supporting mainstream industrial communication protocols, easy to integrate into industrial control networks[1][2].
|
|
Operating Temperature Range
|
0 ~ 55 ℃ (32 ~ 131 ℉); No Condensation Allowed; Ambient Humidity: 10 ~ 90% RH (Non-Condensing)
|
℃, ℉, % RH
|
Adaptable to harsh industrial on-site temperature and humidity fluctuations, stable performance[1][2].
|
|
Storage Temperature Range
|
-20 ~ 65 ℃ (-4 ~ 149 ℉); Relative Humidity ≤ 95% RH (Non-Condensing)
|
℃, ℉, % RH
|
Suitable for long-term storage and transportation, effectively protecting internal electronic components from environmental impact[1][2].
|
|
Dimensions (W × H × D)
|
100 × 89 × 88 mm (Excluding Terminals); DIN Rail Mount (35 mm)
|
mm
|
Compact size, DIN rail mounting design, easy to install in industrial control cabinets, saving installation space[1][2].
|
|
Housing Material
|
High-Quality Flame-Retardant Plastic (UL94 V-0); Anti-Impact, Dust-Proof
|
-
|
Flame-retardant and durable housing material, strong anti-impact and dust-proof performance, suitable for harsh industrial on-site environments[1][2].
|
|
Programming Software
|
CX-Programmer (Version 9.7 or Higher); Support IEC 61131-3 Standard Languages
|
-
|
Compatible with Omron CX-Programmer software, supporting multiple standard programming languages, easy to program and debug[1][2].
|
|
Certifications
|
UL Certified, CE Certified, ISO 9001 Quality Management System Certified, IEC 61131-2 Certified
|
-
|
Complies with international industrial safety standards and quality management system standards, applicable to global markets[1][2].
|
|
Warranty Period
|
12 Months (Original Factory Warranty, Brand New Product)
|
Months
|
Covers manufacturing defects of brand new products, free repair or replacement provided by the original factory within the warranty period[1][2].
|
|
Application
|
Small and Medium-Sized Industrial Automation Equipment, Conveyor Systems, Packaging Machinery, Textile Machinery, Food Processing Machinery, Electronic Equipment Assembly Lines
|
-
|
Widely used in various small and medium-sized industrial automation scenarios, providing reliable and efficient control solutions[1][2].
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
