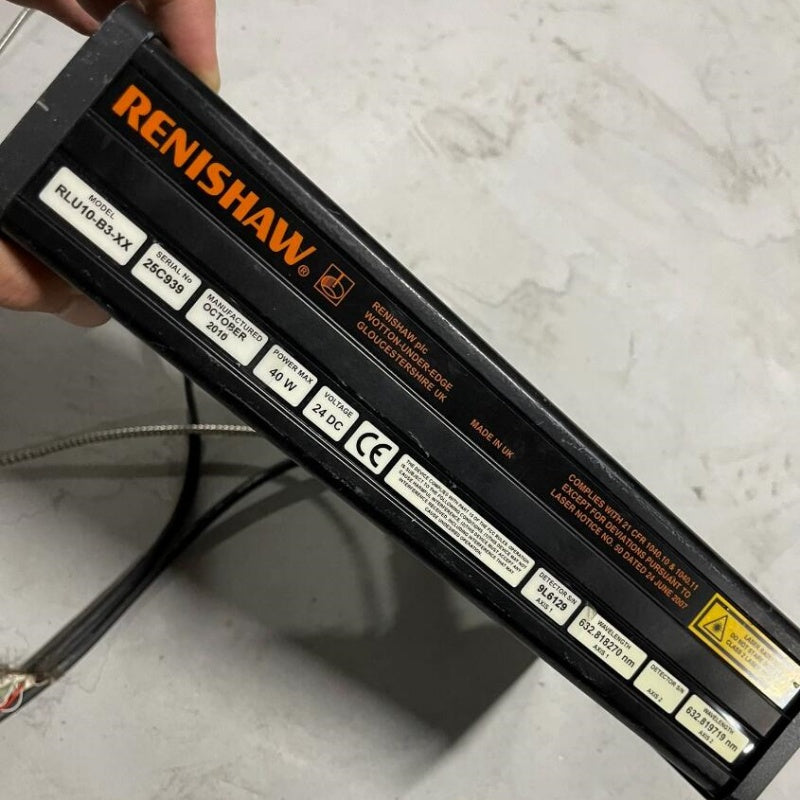

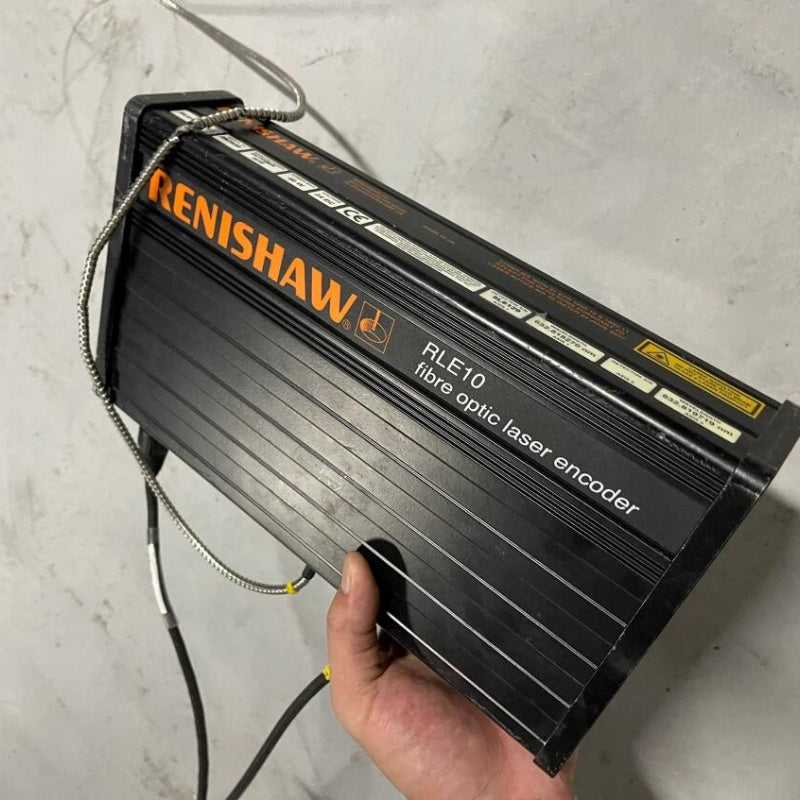

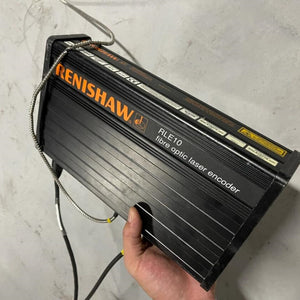

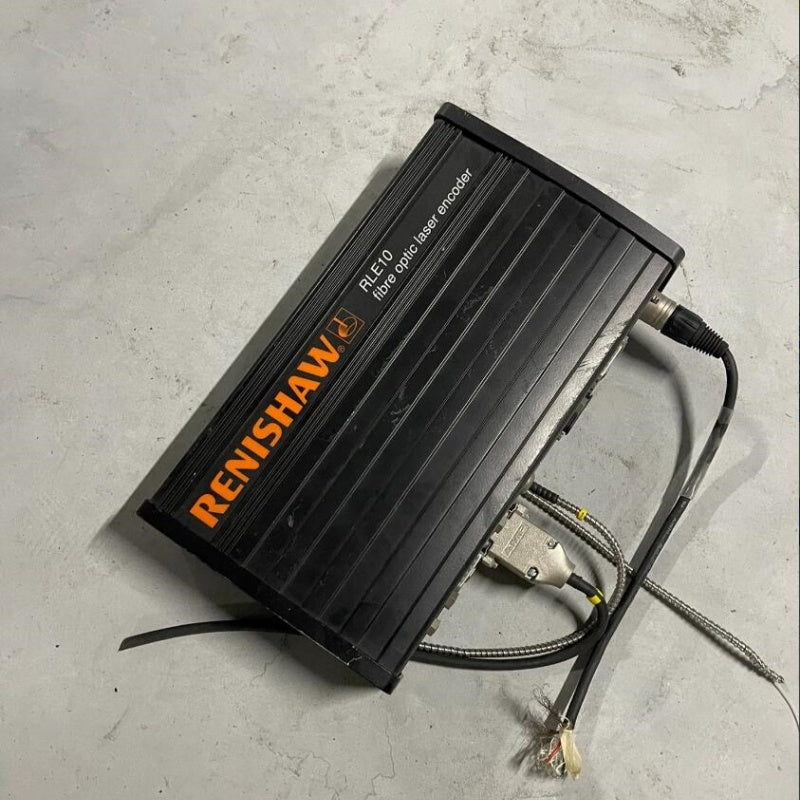

1 PCS used RENISHAW RLU10-B3-XX (RLE10) Fiber Optic Laser Encoder #LYQ007

Regular price $7,500.00 Sale price $1,500.00
40 People are viewing this right now
Add to Wishlist
Add to Compare

1 PCS used RENISHAW RLU10-B3-XX (RLE10) Fiber Optic Laser Encoder #LYQ007
1 PCS used RENISHAW RLU10-B3-XX (RLE10) Fiber Optic Laser Encoder #LYQ007
Regular price $7,500.00 Sale price$1,500.00
1 PCS used RENISHAW RLU10-B3-XX (RLE10) Fiber Optic Laser Encoder #LYQ007

1 PCS used RENISHAW RLU10-B3-XX (RLE10) Fiber Optic Laser Encoder #LYQ007

$1,500.00
Parameter Value Notes
Laser Type Class 2 HeNe (Helium-Neon) <300 µW cw, max <1 mW
Wavelength 632.818270 nm (Axis 1, NTP) 632.819719 nm (Axis 2)
Beam Diameter 3 mm Fixed configuration
Fiber Length 6 m (B = 6 m) Armored fiber, Ø 5 mm
Axes Single-axis XX denotes no second axisRenishaw
Frequency Stability <±10 ppb (1 min)

<±50 ppb (1 hr)

<±50 ppb (8 hr)		 RLE10 standard
Vacuum Wavelength Stability ±0.1 ppm (3 years) Long-term accuracy
Parameter Value Notes
Analog Signal Period 158 nm (Plane mirror)

316 nm (Retroreflector)		 1 Vpp sine/cosine
Digital Resolutions 10, 20, 39.5, 79, 158, 316 nm (Plane mirror)

20, 39.5, 79, 158, 316, 633 nm (Retroreflector)		 RS422 quadrature
Update Rates 0.3125, 0.625, 1.25, 2.5, 5, 10, 20 MHz User-selectable
Max Velocity 1 m/s (Plane mirror)

2 m/s (Retroreflector)		 Resolution-dependent
Output Formats Dual RS422 digital quadrature

1 Vpp analog sine/cosine		 Simultaneous outputs
Parameter Value Notes
Analog Signal Period 158 nm (Plane mirror)

316 nm (Retroreflector)		 1 Vpp sine/cosine
Digital Resolutions 10, 20, 39.5, 79, 158, 316 nm (Plane mirror)

20, 39.5, 79, 158, 316, 633 nm (Retroreflector)		 RS422 quadrature
Update Rates 0.3125, 0.625, 1.25, 2.5, 5, 10, 20 MHz User-selectable
Max Velocity 1 m/s (Plane mirror)

2 m/s (Retroreflector)		 Resolution-dependent
Output Formats Dual RS422 digital quadrature

1 Vpp analog sine/cosine		 Simultaneous outputs

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
