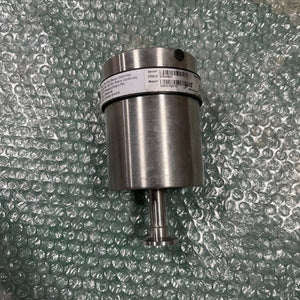

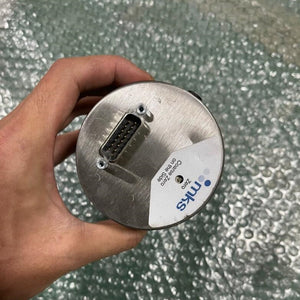

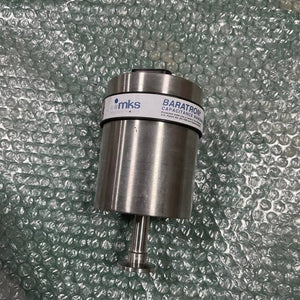

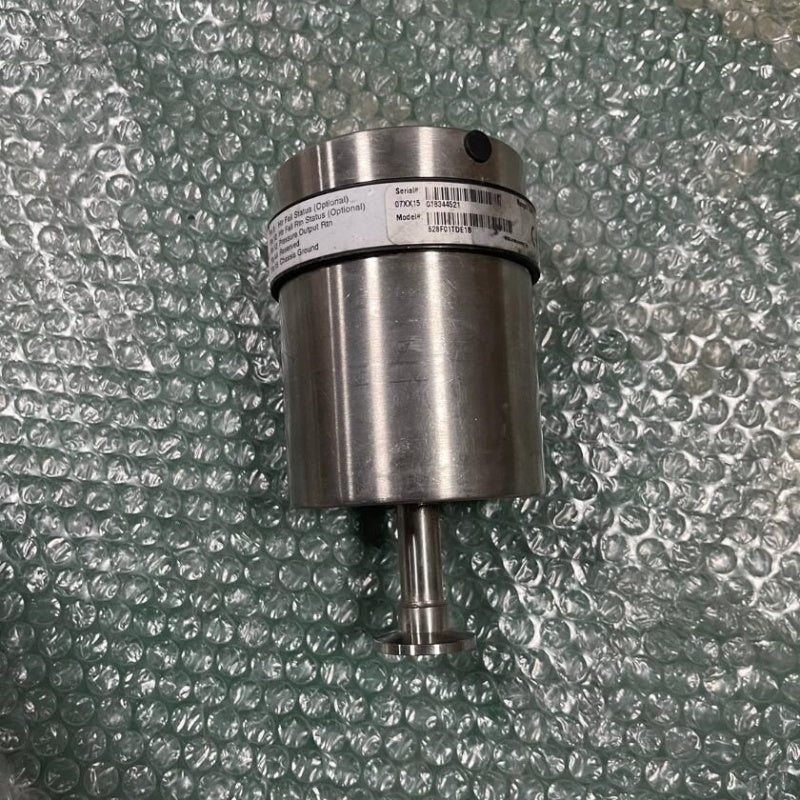

1 PCS used MKS 628F01TDE1B Baratron® Capacitance #LYQ007
1 PCS used MKS 628F01TDE1B Baratron® Capacitance #LYQ007
| Parameter | Specification |
|---|---|
| Part Number | 628F01TDE1B |
| Product Type | Heated Baratron® Capacitance Manometer |
| Measurement Type | Absolute Total Pressure |
| Full Scale Range | 1 Torr |
| Sensor Temperature | 100°C (Heated) |
| Accuracy | 0.50% of Reading (for 0.25, 0.1, 0.05 Torr ranges); 0.25% of Reading (for 1–25,000 Torr ranges) |
| Resolution | 0.001% of Full Scale (0.002% of FS for 0.05 Torr) |
| Temperature Coefficients | Zero: 0.01% FS/°C (0.25 & 0.1 Torr); 0.02% Reading/°C (Span) |
| Operating Temperature Range | 15°C to 50°C |
| Warm-up Time | 4 hours (for <1 Torr ranges) |
| Overpressure Limit | 45 psia (310 kPa) or 120% of Full Scale (whichever greater) |
| Wetted Materials | Inconel® |
| Input Power | ±15 VDC ±5% @ 0.60 Amps (Max) |
| Output Signal | 0–10 VDC into >10 kΩ load |
| Fitting Type | 1/2" (12.7 mm) OD Tube (Standard); Optional: 8 VCR®, NW16 KF, etc. |
| Electrical Connector | 15-pin D-sub with Thread Lock |
| Calibration | Vertical (Standard) |
| Volume | 6.3 cc |
| Compliance | CE |
