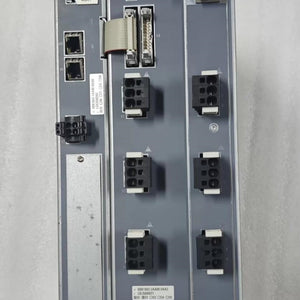

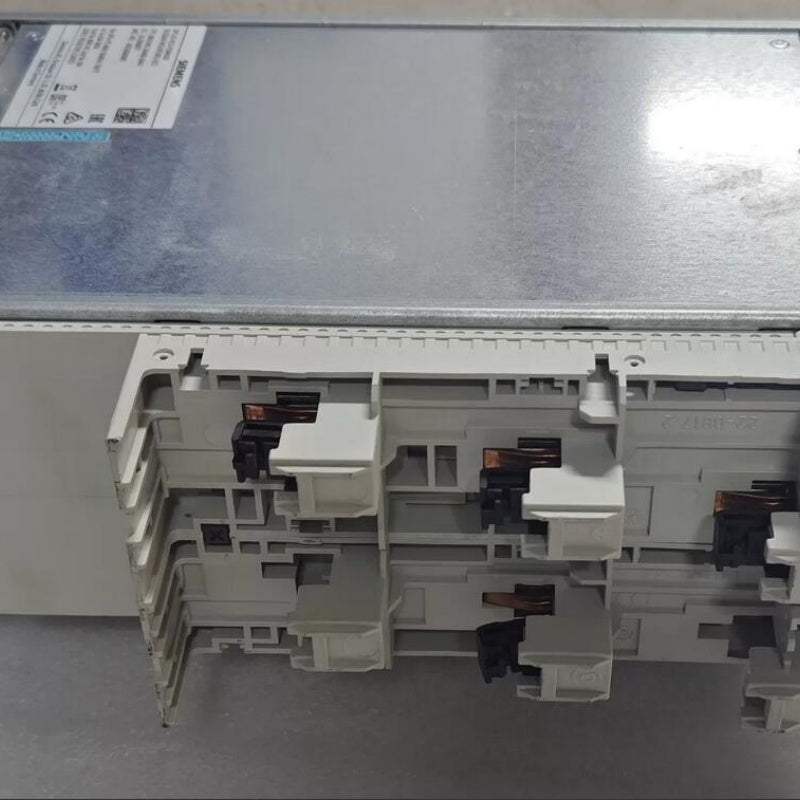

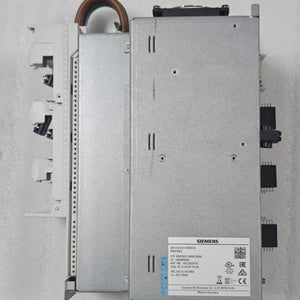

1 PCS used Siemens SIPLUS HCS CIMATIC 6BK1943-1AA00-0AA0 #LYQ007
1 PCS used Siemens SIPLUS HCS CIMATIC 6BK1943-1AA00-0AA0 #LYQ007
| Parameter | Specification |
|---|---|
| Product Designation | SIPLUS HCS4300 CIM4310 Central Interface Module |
| Order Number | 6BK1943-1AA00-0AA0 |
| Product Family | SIPLUS HCS (Heating Control System) |
| Main Function | Central Interface Module (CIM), intelligent processor module |
| Supply Voltage | 24 V DC |
| Voltage Tolerance | 20% (relative symmetrical tolerance) |
| Power Consumption | 3 W active power input |
| Communication Interface | PROFINET IO |
| Transmission Rate | Max. 100 Mbit/s |
| PROFINET Connection | 2 x RJ45 connectors |
| Other Protocols | PROFIBUS DP: No; EtherNet/IP: No |
| Power Supply Connection | 2 x 2-pin connector with tension spring connection |
| Conductor Cross-Section | Solid: 0.2 ... 2.5 mm²; Finely stranded: 0.2 ... 2.5 mm²; AWG: 26 ... 12 |
| Slots | 1 slot (for POM4320 connection) |
| Status Indicators | 3 LEDs: Green (ready), Yellow (heating on/off), Red (error) |
| Dimensions (W x H x D) | 56 mm x 285 mm x 136 mm |
| Mounting | Screw mounting to POM, vertical installation |
| Cooling | Forced ventilation |
| Protection Class | IP20 |
| Overvoltage Category | III |
| Pollution Degree | 2 |
| Operating Temperature | 0 ... +55 °C |
| Storage/Transport Temp | -25 ... +70 °C |
| Relative Humidity | Max. 95% at +25 °C (non-condensing) |
| Certifications | CE, UL, RCM (C-TICK), KC, EAC (GOST-R), China RoHS |
| EMC Standards | IEC 61000-6-4, IEC 61000-4-2/3/4/5/6 |
| Enclosure | Metal, encapsulated design |
| Country of Origin | Germany |
