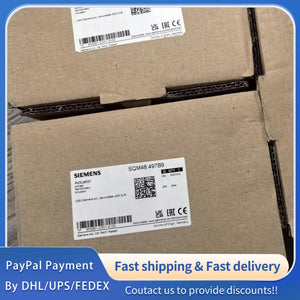

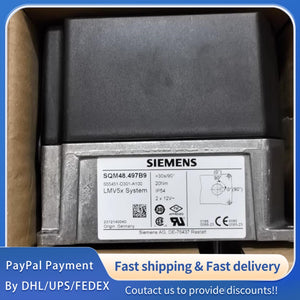

1 PCS NEW Siemens Actuator SQM48.497B9 #LYQ007
1 PCS NEW Siemens Actuator SQM48.497B9 #LYQ007
1 PCS NEW Siemens Actuator SQM48.497B9 #LYQ007
General Information (Siemens Original Factory Standard)
|
Parameter
|
Specification (SQM48.497B9)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand
|
Siemens (Germany, Original Factory, Brand New Genuine Product)
|
-
|
100% brand new Siemens original product, produced in Germany in strict accordance with Siemens original factory quality control standards, factory calibrated and performance tested before delivery to ensure positioning precision and operational reliability[1][2][3].
|
|
Product Model
|
SQM48.497B9 (Order Code: SQM48.497B9; Factory Code: S55451-D301-A100)
|
-
|
Original factory model, unchanged, belonging to the standard version of Siemens SQM48 series linear actuator; model coding conforms to Siemens industrial electromechanical actuator series standard[1][3].
|
|
Product Type
|
Industrial Linear Actuator, Electromechanical Actuator, Burner Control Actuator
|
-
|
Specialized for demanding industrial applications, mainly used to drive dampers, valves and oil pressure controllers, realizing precise positioning and process control[1][2][3].
|
|
Rated Torque
|
20 Nm
|
Nm
|
High rated torque, ensuring stable driving capacity for various industrial valves and dampers, meeting the requirements of heavy-load positioning[1][2][3].
|
|
Holding Torque
|
Up to 20 Nm
|
Nm
|
Excellent holding torque performance, ensuring the actuator can stably maintain its position under load, avoiding displacement and ensuring control precision[1][2][3].
|
|
Running Time (90° Rotation)
|
30 ~ 120 seconds; Standard: 30 seconds
|
s
|
Adjustable running time, adapting to different control rhythm requirements of industrial systems; standard 30 seconds for quick and precise positioning, improving control efficiency[1][2][3].
|
|
Rotation Angle
|
90 Degrees
|
°
|
Standard 90-degree rotation, perfectly matching the control requirements of industrial dampers, butterfly valves and other components, ensuring precise control of fluid or gas flow[1][2][3].
|
|
Supply Voltage
|
2 x 12 V AC; Optional: 24 V AC
|
V AC
|
Stable voltage input, adapting to industrial power supply environments, ensuring consistent performance of the actuator during long-term operation[1][2].
|
|
Rotation Direction
|
Interchangeable (Clockwise / Counterclockwise)
|
-
|
Flexible rotation direction adjustment, facilitating mechanical connection and system design, adapting to different on-site installation requirements[1].
|
|
Protection Level (Housing)
|
IP54 (With Suitable M16 Connector)
|
-
|
IP54 protection level, providing effective dust-proof and waterproof performance, suitable for harsh industrial environments with dust or moisture[1][2].
|
|
Housing Material
|
Die-Cast Aluminum Lower Housing, Plastic Cover
|
-
|
High-quality housing material, featuring corrosion resistance and impact resistance, effectively protecting internal components and extending service life[1].
|
|
Drive Shaft
|
Hardened Steel, 14 mm Key Shaft
|
mm
|
Hardened steel drive shaft with high strength and wear resistance, 14 mm key shaft design, ensuring stable power transmission[1][3].
|
|
Gear
|
Steel Spur Gear
|
-
|
Steel spur gear, featuring stable transmission, low noise and long service life, ensuring precise and reliable operation of the actuator[1].
|
|
Cable Entry
|
2 x M16
|
-
|
Dual M16 cable entry, facilitating cable connection and sealing, ensuring the protection level of the actuator and stable signal transmission[1].
|
|
Communication
|
CAN Bus
|
-
|
Equipped with CAN bus communication interface, enabling seamless integration with compatible control systems such as Siemens LMV5 series, suitable for modern industrial automation solutions[1][3].
|
|
Operating Temperature Range
|
-20 ~ 60 ℃ (Ambient); No Condensation Allowed
|
℃
|
Adaptable to harsh industrial on-site temperature fluctuations, stable performance in low and high temperature environments, ensuring continuous operation[1][2].
|
|
Storage Temperature Range
|
-25 ~ 70 ℃; Relative Humidity ≤ 95% RH (Non-Condensing)
|
℃, % RH
|
Suitable for long-term storage and transportation, effectively protecting internal electronic and mechanical components from damage[1].
|
|
Weight (Net)
|
Approx. 1.6 kg (Including Actuator & Built-in Components)
|
kg
|
Reasonable weight, reducing the load of mounting brackets, easy to transport and install on industrial equipment[1][2].
|
|
Service Life
|
≥ 10 Years (Continuous Operation, Normal Working Conditions); ≥ 60,000 Hours MTBF
|
Years, Hours
|
Long service life and high reliability, made of high-quality materials and precision manufacturing, low maintenance cost, suitable for long-term continuous operation of industrial systems[1][2][3].
|
|
Warranty Period
|
12 Months (Original Factory Warranty, Brand New Product)
|
Months
|
Covers manufacturing defects of brand new products, free repair or replacement provided by the original factory within the warranty period; does not cover damage caused by improper operation[1][2].
|
|
Application
|
Industrial Burners, Boiler Systems, Industrial Furnaces, Heat Treatment Equipment, HVAC Systems, Butterfly Valve Control, Damper Control
|
-
|
Widely used in various industrial fields requiring precise positioning control, especially suitable for burner management systems where precise control of fuel and air flow is crucial for efficiency and safety[1][2][3].
|
|
Special Features
|
High Torque, Precise Positioning, IP54 Protection, CAN Bus Communication, Interchangeable Rotation Direction, Durable Structure
|
-
|
Integrated multiple advantages, strong environmental adaptability, convenient installation and maintenance, stable and reliable performance, suitable for harsh industrial control scenarios[1][2][3].
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
