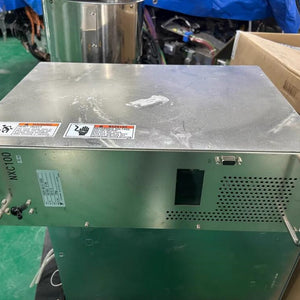

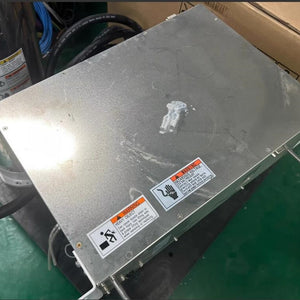

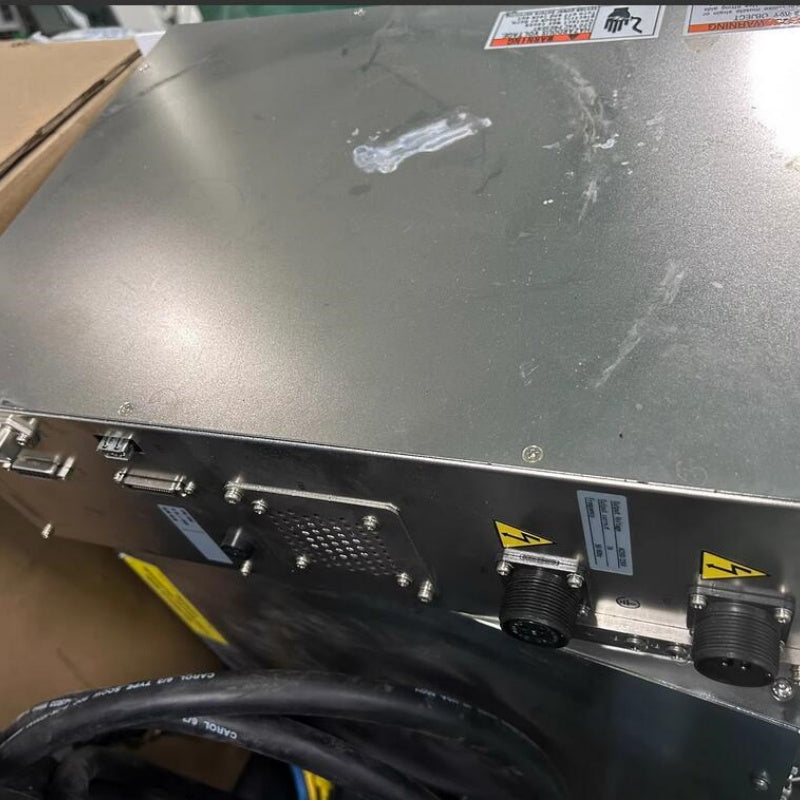

1 PCS used YASKAWA NXC100 Controller ERCR-ND10-C000 #LYQ007
1 PCS used YASKAWA NXC100 Controller ERCR-ND10-C000 #LYQ007
| Item | Specifications |
|---|---|
| Controller Model | NXC100 (ERCR-ND10-C000) |
| Manufacturer | YASKAWA ELECTRIC CORPORATION (JAPAN) |
| Applicable Robots | MOTOMAN HP3, HP3L, HP3XF, HP5 |
| Control Axes | Up to 8 axes (6 robot axes + 1 external axis, max. 200W) |
| Servo System | YASKAWA Σ-II, Σ-III series AC servo motors (200VAC spec.) |
| Total Motor Capacity | 650W (35% load factor) |
| Input Power Supply | Single-phase 200/220 VAC, 50/60 Hz, 1.1 kVA |
| Power Fluctuation | ±10% |
| Frequency Fluctuation | ±2 Hz |
| External Dimensions (W×H×D) | 425 × 133 × 300 (385) mm |
| Approx. Mass | 16 kg |
| Cooling Method | Forced air cooling (Front intake, Rear exhaust) |
| Installation | Vertical or horizontal mounting |
| Ambient Temperature (Operation) | 0°C to +40°C |
| Ambient Temperature (Storage) | -10°C to +60°C |
| Relative Humidity | Max. 90% RH (non-condensing) |
| Standard I/O | 12 Inputs / 14 Outputs (Expandable to 40/40) |
| Analog I/O | 3 channels (optional) |
| Position Detection | Absolute encoder |
| Program Memory | 60,000 steps / 10,000 instructions |
| Programming Language | INFORM III |
| Communication Interface | RS-232C, Ethernet |
| Teach Pendant | Windows CE OS, 6.5" TFT color LCD (640×480 dots), 1.3 kg |
| Safety Standards | ISO 10218 (EN compliant) |
| Applications | Small parts handling, assembly, packaging (Not for arc welding) |
