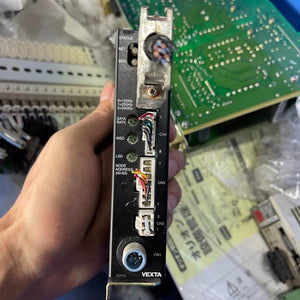

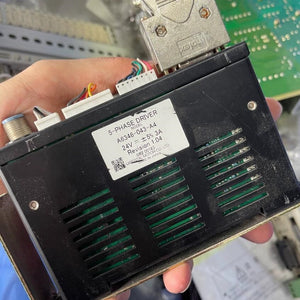

1 PCS used VEXTA A6346-043-A4 5-Phase Driver #LYQ007
1 PCS used VEXTA A6346-043-A4 5-Phase Driver #LYQ007
| Item | Specifications |
|---|---|
| Model | A6346-043-A4 |
| Type | 5-phase Stepping Motor Driver |
| Power Supply Voltage | 24 VDC ± 5% |
| Output Current | 3 A/phase |
| Revision | 1.04 |
| Manufacturer | ORIENTAL MOTOR CO., LTD. |
| Origin | Made in Japan |
| Weight | Approx. 0.3 kg |
| Control Method | Pulse input type (5-phase bipolar drive) |
| Step Modes | Full step, Half step, Micro-step |
| Input Signal Level | Opto-isolated, 5-24 VDC compatible |
| Protection Functions | Over-current protection, Over-heat protection, Voltage fluctuation protection |
| Insulation Resistance | 10 MΩ min. (at 500 VDC) |
| Dielectric Strength | 1,500 VAC for 1 minute (between power and control circuits) |
| Operating Ambient Temperature | 0°C to +40°C |
| Operating Ambient Humidity | 85% RH max. (non-condensing) |
| Storage Temperature | -20°C to +65°C |
| External Dimensions | Approx. 100 (W) × 30 (H) × 120 (D) mm |
| Mounting | Panel mount (4 screw holes) |
| Main Interface | CN1: Control signal connector
|
