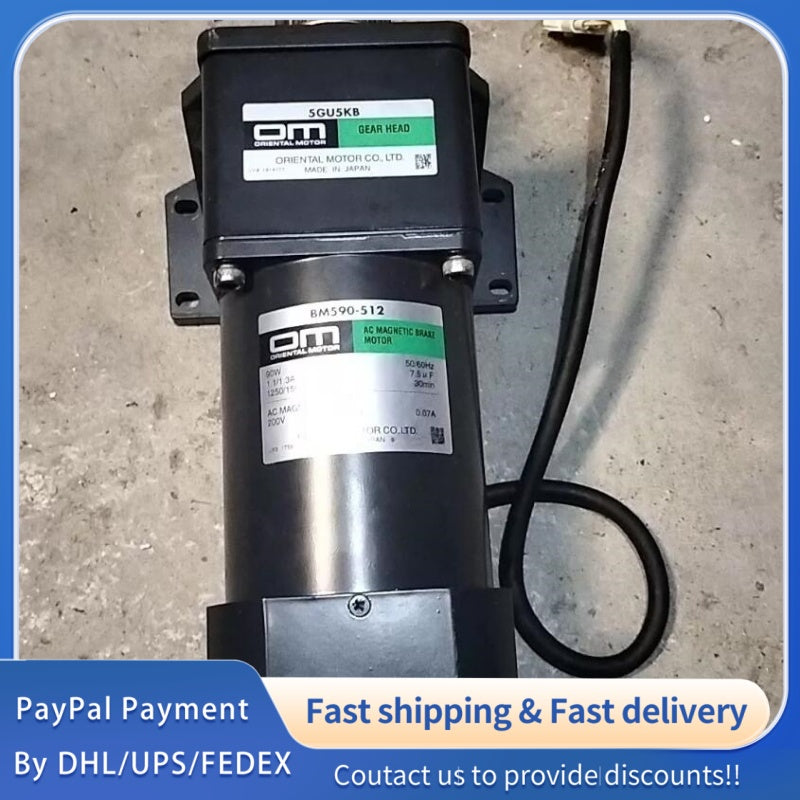

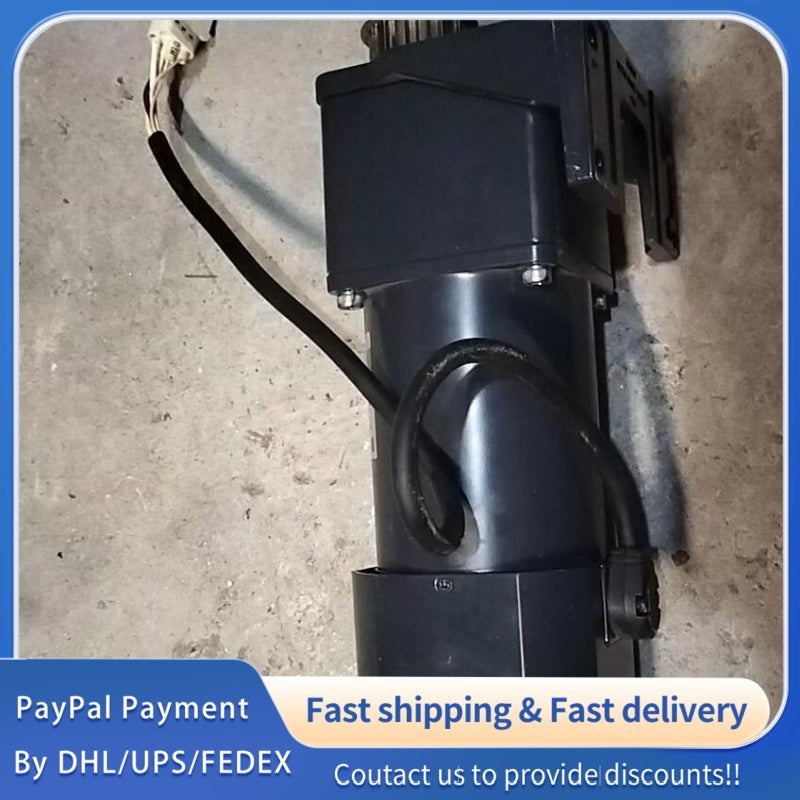

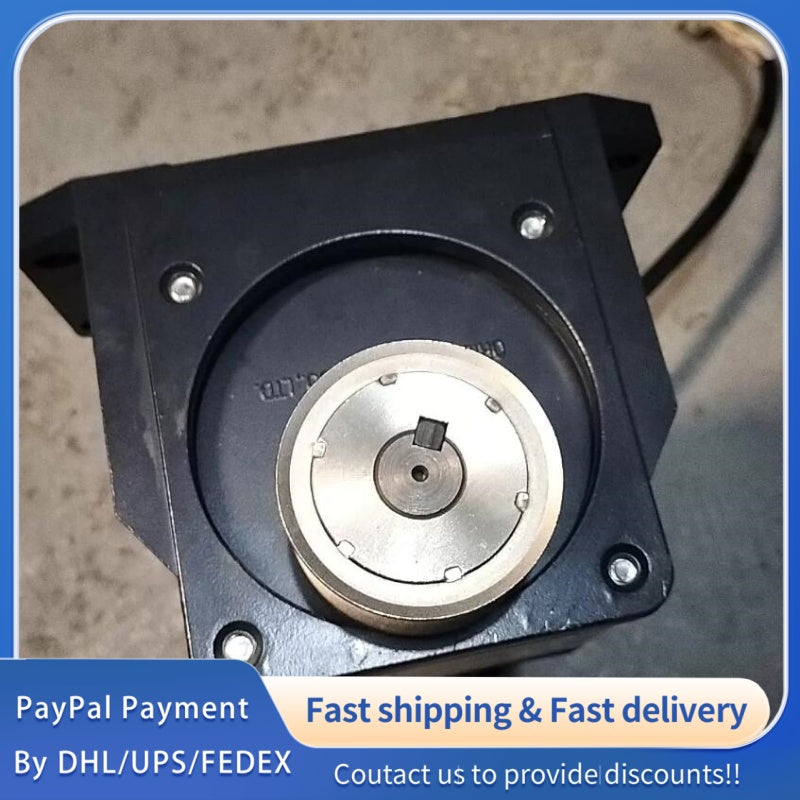

1 PCS used Oriental Motor BM590-512 with 5GU5KB Gearhead #LYQ007
1 PCS used Oriental Motor BM590-512 with 5GU5KB Gearhead #LYQ007
| Item | Specification |
|---|---|
| Model | BM590-512 + 5GU5KB |
| Motor Type | AC Electromagnetic Brake Motor (Power-off activated) |
| Output Power | 90 W (1/8 HP) |
| Frame Size | 90 mm (3.54 in) |
| Voltage | Single‑phase 200–230 VAC, 4‑pole |
| Frequency | 50/60 Hz |
| Rated Speed (Motor) | 1400 rpm (50 Hz) / 1700 rpm (60 Hz) |
| Gearhead Type | Parallel Shaft (GU Series)Oriental Motor |
| Gear Ratio | 5:1Oriental Motor |
| Output Shaft Diameter | 15 mmOriental Motor |
| Rated Output Speed | 280 rpm (50 Hz) / 340 rpm (60 Hz) |
| Rated Output Torque | Approx. 30 N·m (265 lb‑in) |
| Permissible Radial Load | 400 N |
| Permissible Axial Load | 150 N |
| Insulation Class | E (120°C) |
| Dielectric Strength | 1.5 kV AC for 1 min (coil‑to‑frame)Oriental Motor |
| Insulation Resistance | ≥ 100 MΩ (500 V DC megger) |
| Thermal Protector | Built‑in auto‑reset; Open: 120±5°C, Reset: 77±15°C |
| Ambient Temperature | −10°C to +40°C (non‑freezing) |
| Ambient Humidity | ≤ 85% RH (non‑condensing) |
| Protection Grade | IP54 (motor) |
| Brake Voltage | Same as motor supply |
| Brake Operation | Power‑off engaged (holds load when power is cut) |
| RoHS Compliance | Yes |
| Safety Standards | UL, CSA, CE |
