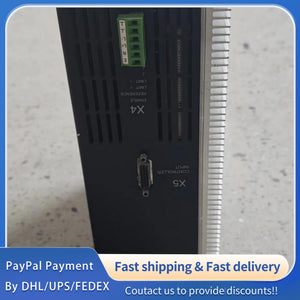

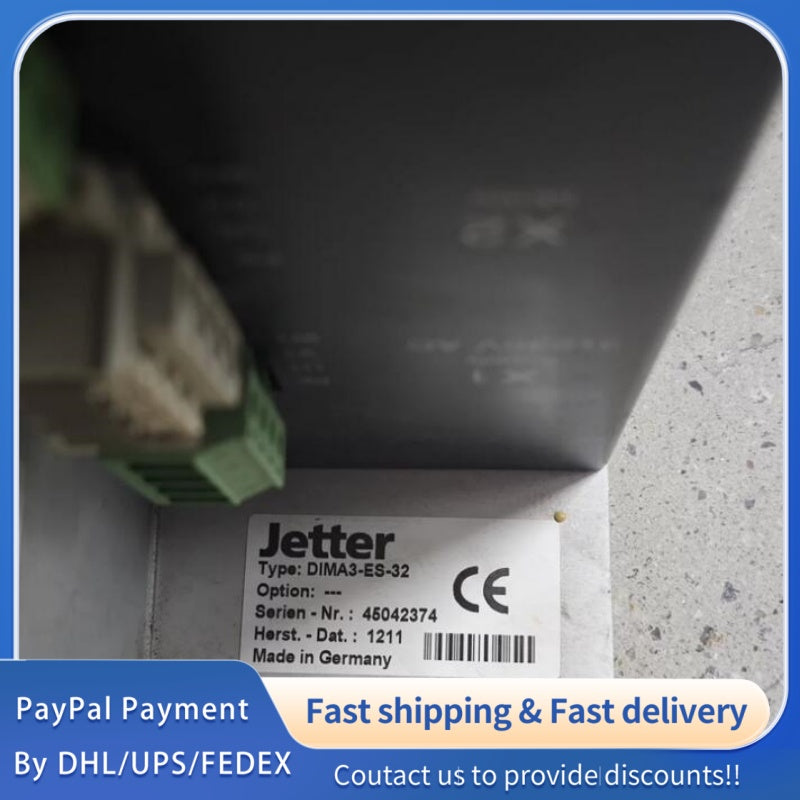

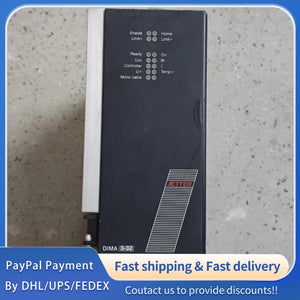

Part Number: DIMA3-ES-32
Brand: Jetter AG

Product Series: DIMA3 Series Industrial Servo Drive

Product Type: High-Performance Compact Servo Drive

Core Application: Precision motion control systems, including CNC machine tools, robotic arms, packaging machinery, printing equipment and automated assembly lines; suitable for high-dynamic and high-precision positioning scenarios.

Core Features: Support for multiple control modes; compact design for space-saving installation; built-in high-precision encoder interface; comprehensive protection mechanism; strong anti-interference performance; EEPROM data storage for parameter retention after power-off.

Electrical Specifications
Input Voltage Range: Three-Phase AC 380V ~ 480V, 50Hz/60Hz (±10% tolerance)

Rated Output Current: 32A (continuous operation, S1 duty cycle)

Peak Output Current: 64A (duration ≤3s, for emergency acceleration/deceleration conditions)

Control Power Supply: DC 24V ±10%, 0.8A rated current

Encoder Interface: Supports 24-bit Absolute Encoder and Incremental Encoder, max input frequency 1MHz

Isolation: 2500V AC isolation between power circuit and control circuit; 1500V AC isolation between output and ground

Power Consumption: ≤80W (no-load condition); ≤500W (rated load condition)

Control Modes: Position Control, Speed Control, Torque Control (switchable via parameter configuration); supports JOG manual mode

Protection Functions: Overcurrent protection, overvoltage protection, undervoltage protection, overheating protection, short-circuit protection, encoder fault protection, motor overload protection

ESD Protection: ±8 kV (contact), ±15 kV (air) per IEC 61000-4-2 standard

Overheating Protection: Auto-shutdown when module temperature exceeds 85℃; auto-recovery after cooling to 65℃
