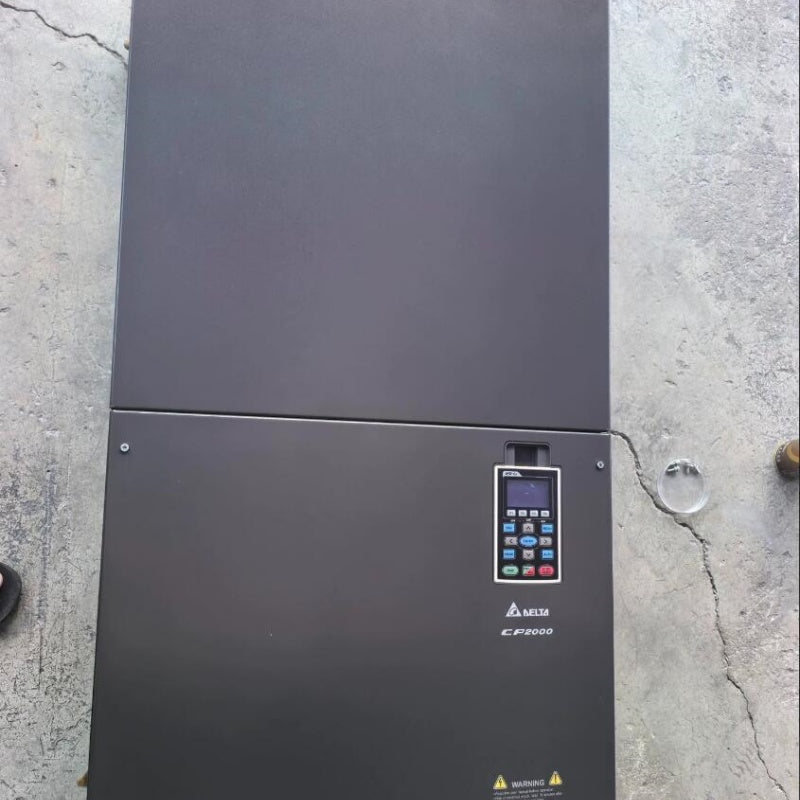

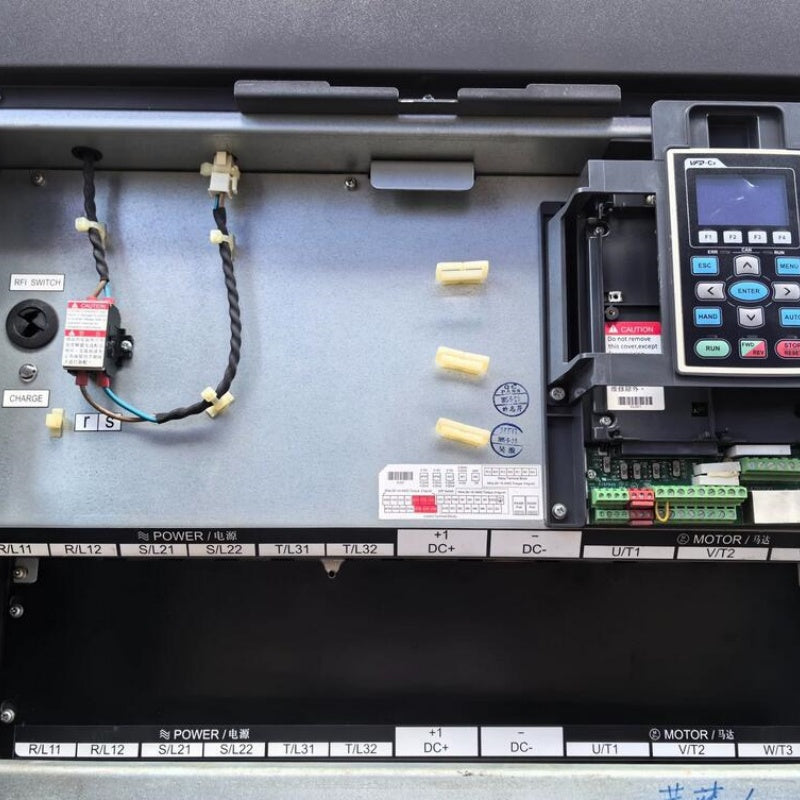

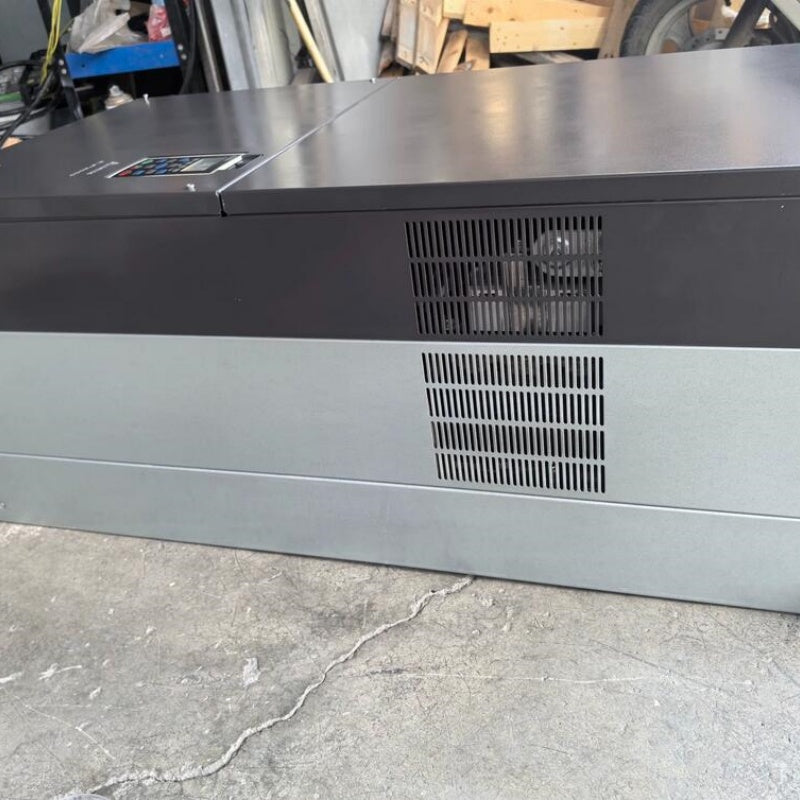

1 PCS used Delta CP2000 Series | VFD2800CP43A-21 | 280kW inverter #LYQ007
1 PCS used Delta CP2000 Series | VFD2800CP43A-21 | 280kW inverter #LYQ007
| Parameter Category | Parameter Name | Specification |
|---|---|---|
| General | Model | VFD2800CP43A-21 |
| Series | CP2000 | |
| Rated Output Power | 280 kW | |
| Rated Output Current (Normal Duty) | 530 A | |
| Output Capacity (Normal Duty) | 422 kVA | |
| Applicable Motor (HP) | 375 HP | |
| Input | Input Voltage | 380–480 V AC, 3-phase, -15% ~ +10% |
| Input Frequency | 50/60 Hz | |
| Built-in DC Reactor | Yes | |
| Built-in EMC Filter | No | |
| Output | Output Frequency Range | 0–600 Hz |
| Carrier Frequency | 2–15 kHz (Default: 8 kHz) | |
| Control Modes | V/f Control, Sensorless Vector Control (SVC), Torque Control | |
| Overload | Light Duty Overload | 120% of rated current for 1 minute per 5 minutes |
| Normal Duty Overload | 120% of rated current for 1 minute per 5 minutes; 160% for 3 seconds per 25 seconds | |
| Environment | Ambient Operating Temperature | -10°C to +50°C |
| Storage/Transport Temperature | -25°C to +70°C | |
| Protection Class (IP) | IP20 | |
| NEMA Rating | NEMA 1 | |
| Physical | Cooling Method | Fan Cooling |
| Weight | Approx. 230 kg | |
| Communication | Standard Communication | Modbus RTU (RS-485), BACnet |
| Optional Communication Cards | Profibus-DP, DeviceNet, Modbus TCP, EtherNet-IP, CANopenDelta | |
| Safety & Approvals | Approvals | CE, UL, cULDelta |
| Safe Stop | STO (Safe Torque Off) | |
| Miscellaneous | Built-in PLC | 10k StepsDelta |
| Braking Chopper | Optional |
