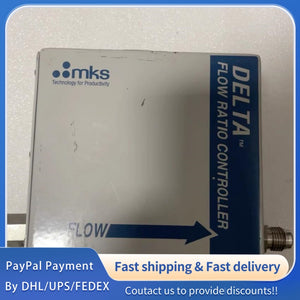

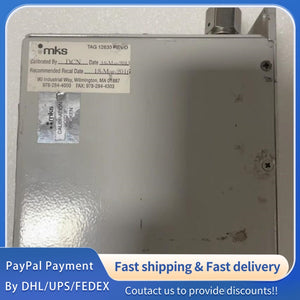

1 PCS used MKS DELTA Flow Controller FRCA141B24#LYQ007
1 PCS used MKS DELTA Flow Controller FRCA141B24#LYQ007
1 PCS used MKS DELTA Flow Controller FRCA141B24#LYQ007
Original Factory Precision Parameters (Model: MKS DELTA FRCA141B24 Flow Controller)
|
Parameter Category
|
Parameter Name
|
FRCA141B24 Specification
|
|
Basic Information
|
Product Model
|
FRCA141B24; MKS DELTA Genuine Original Flow Controller, 100% unused and unrefurbished genuine parts; Industrial-grade precision gas flow controller
|
|
Manufacturer Standard
|
Manufactured by MKS; Complies with CE, UL, ISO 9001, IEC 61010-1, RoHS 2.0 Standards; Conforms to MKS Internal Technical and Quality Norms for Flow Controllers; Anti-EMI/EMS design meets industrial precision operation requirements
|
|
|
Product Application
|
Semiconductor Manufacturing, Industrial Process Control, Laboratory Gas Analysis, Chemical Reaction Control, Vacuum Coating, Optical Fiber Manufacturing, Medical Equipment, Precision Gas Distribution Systems
|
|
|
Core Performance Parameters
|
Flow Controller Type
|
Thermal Mass Flow Controller (MFC); Constant Flow Control Mode; Suitable for precise control of dry, non-corrosive, non-condensing gases
|
|
Flow Range (Full Scale)
|
0 ~ 500 sccm (Standard Cubic Centimeters per Minute); Adjustable; Continuous Flow Control, no obvious fluctuation during long-term operation
|
|
|
Flow Control Precision
|
±0.5% FS (Full Scale); High control precision, meeting the requirements of high-precision gas flow control applications
|
|
|
Flow Repeatability
|
±0.1% FS; Excellent repeatability, ensuring consistent flow output in long-term cyclic operation
|
|
|
Linearity
|
±0.5% FS; Good linearity, ensuring accurate flow control at any point within the full flow range
|
|
|
Response Time
|
≤100 ms (90% of Full Scale); Fast response, quickly adapt to gas flow demand changes in the process
|
|
|
Zero Drift
|
≤±0.1% FS/Year; Low zero drift, reducing the frequency of calibration and ensuring long-term measurement accuracy
|
|
|
Temperature Coefficient
|
≤±0.01% FS/℃ (Operating Temperature Range); Low temperature influence, ensuring stable performance in different temperature environments
|
|
|
Gas & Pressure Parameters
|
Compatible Gas Types
|
Air, Nitrogen (N₂), Argon (Ar), Helium (He), Oxygen (O₂), Hydrogen (H₂), Methane (CH₄) and other dry, non-corrosive, non-condensing gases; Customizable for special gas types
|
|
Inlet Pressure Range
|
0.1 ~ 1.0 MPa (1 ~ 10 Bar); Stable flow control under different inlet pressure conditions within the range
|
|
|
Outlet Pressure Range
|
0.05 ~ 0.8 MPa (0.5 ~ 8 Bar); Adjustable according to actual process requirements
|
|
|
Pressure Coefficient
|
≤±0.05% FS/MPa; Low pressure influence, ensuring flow stability when inlet/outlet pressure changes slightly
|
|
|
Gas Purity Requirement
|
≥99.99% (Clean Dry Gas); No oil, dust or other impurities, avoiding sensor and valve blockage
|
|
|
≤1×10⁻⁹ Pa·m³/s (He); Ultra-low leak rate, ensuring no gas leakage and process safety
|
||
|
Control & Communication Parameters
|
Control Mode
|
Manual Control (Local Knob) + Remote Control (Standard); Support 4~20 mA DC Signal Control, RS485 (Modbus-RTU) Communication
|
|
Communication Baud Rate
|
RS485: 9600~115200 bps (Adjustable); Support remote parameter configuration, flow monitoring and fault query
|
|
|
Control Signal Input
|
4~20 mA DC (Isolated); 0~10 V DC (Optional); Precise flow adjustment via external control signal
|
|
|
Feedback Signal Output
|
4~20 mA DC (Isolated); Real-time output of actual flow parameters for monitoring and feedback control
|
|
|
Interface Protection
|
2500 V AC Optical Isolation (1 Minute); ESD Protection ±15 kV (Contact), ±25 kV (Air); Protect internal control components from interference and damage
|
|
|
Display Function
|
LED Digital Display; Real-time display of Actual Flow, Set Flow and Working Status; Display Accuracy: ±0.1%
|
|
|
Protection & Safety Parameters
|
Over-Flow Protection
|
Built-in Flow Detection; Alarm & Cut off Gas Output when Flow ≥110% FS; Automatic Recovery after Fault Elimination
|
|
Under-Flow Protection
|
Alarm when Flow ≤5% FS (Adjustable); Prompt for abnormal flow conditions, ensuring process safety
|
|
|
Over-Temperature Protection
|
Alarm & Cut off Gas Output when Internal Temperature ≥85℃; Automatic Recovery after Cooling to ≤75℃; Protect internal components
|
|
|
Sensor Fault Protection
|
Alarm & Cut off Gas Output when Sensor Open/Short Circuit; Prevent misoperation caused by sensor failure
|
|
|
Valve Fault Protection
|
Alarm when Valve Jam/Leakage is Detected; Prompt for maintenance, avoiding gas waste and safety hazards
|
|
|
Fault Alarm Function
|
Built-in Fault Self-Diagnosis Function; Output Alarm Signal (Sound & Light) when Fault Occurs; Support Fault Log Storage (Max 500 Entries); Convenient for Fault Diagnosis and Maintenance
|
|
|
Password Protection
|
Support 6~16 Bit Password Protection; Prevent Misoperation and Parameter Modification; Protect Flow Control Precision Parameters
|
|
|
Environmental & Structural Parameters
|
Operating Temperature
|
-10℃ ~ 60℃; Stable operation in extreme temperature environments, adapt to various industrial working conditions
|
|
Storage Temperature
|
-20℃ ~ 80℃; Stable storage performance, no performance degradation after long-term storage in harsh environments
|
|
|
Relative Humidity
|
5% ~ 95% (Non-Condensing); Resists humid industrial environments, no short circuit or malfunction
|
|
|
Protection Class
|
IP54; Dustproof and waterproof design, suitable for installation in outdoor or wet industrial sites
|
|
|
Installation Type
|
Base Mounting / DIN Rail Mounting (Optional); Installation Thread: M4 (Standard), Customizable; Easy to install and disassemble, convenient for maintenance
|
|
|
Dimensions (L×W×H)
|
180×100×220 mm (±2 mm); Compact structure, small installation space, easy to integrate with process equipment
|
|
|
Functional & Other Parameters
|
Start-up Time
|
≤300 ms (Standard Working Conditions); Fast start-up, quickly enter working state, realize real-time flow control
|
|
Remote Control Function
|
Support Remote On/Off, Flow Adjustment, Parameter Configuration, Fault Query via RS485/Ethernet (Optional); Convenient for Centralized Control of Multiple Controllers
|
|
|
Service Life
|
≥10000 Operating Hours (Continuous Operation, Standard Working Conditions); High reliability, reducing maintenance frequency
|
|
|
Calibration Function
|
Support Manual Calibration & Automatic Calibration; Provide MKS Original Calibration Tools (Optional); Ensure Long-term Flow Precision and Parameter Consistency
|
