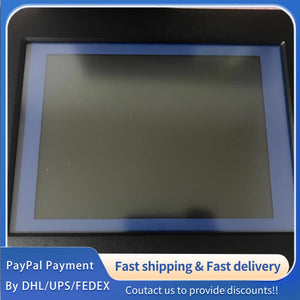

1 PCS used QTERM-G75 GB252 HMI Touch Screen #LYQ007
1 PCS used QTERM-G75 GB252 HMI Touch Screen #LYQ007
| Parameter | Specification |
|---|---|
| Display | Color TFT (256 colors); 640×480 pixels; 10.4 in (264 mm) diagonal; 0.33 mm dot pitch; cold‑cathode fluorescent backlight (software‑controllable brightness) |
| Touch Screen | Analog‑resistive; transparent touch area over display; labeled soft‑key underlay on both sides |
| Processor | 400 MHz Intel XScale (standard); 200 MHz Intel XScale (PoE version) |
| Memory | 8 MB Flash + 32 MB RAM (standard); 4 MB Flash + 16 MB RAM (PoE) |
| Interfaces | 1× EIA‑232 (DB9f); optional 2nd serial (EIA‑232/422/485); optional 10/100Base‑T Ethernet (RJ45); optional PoE (IEEE 802.3af); optional PS/2 keyboard |
| Power | 8–26 VDC; 860 mA @ 12 VDC; PoE (IEEE 802.3af) option |
| Operating Temp | −10 °C to +60 °C |
| Storage Temp | −20 °C to +70 °C |
| Humidity | 0–95% RH, non‑condensing |
| Vibration | 5–5000 Hz, 4 g RMS |
| Shock | 20 g, 3 ms, any axis |
| Housing | Aluminum panel‑mount; NEMA‑4 front sealing; dimensions 330×260×56 mm; weight 3.2 kg |
| Certifications | FCC Part 15 Class A; CE (EN60950, EN55022, EN55024) |
| Software | Qlarity object‑based language; Qlarity Foundry Windows design tool |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
