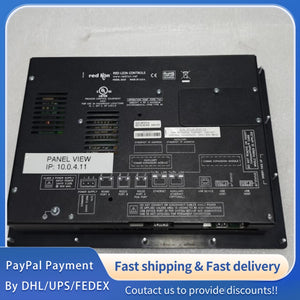

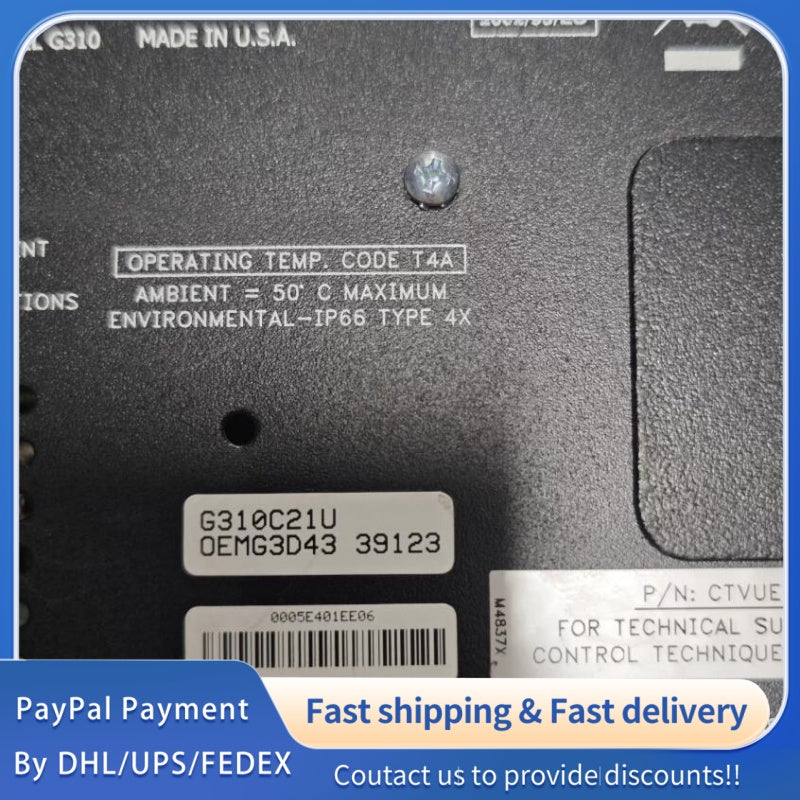

Part Number: G310C21U
Alternate P/N: N/A (Original Red Lion Component, Fully Compatible with Red Lion Automation Systems)
Brand: Red Lion Controls
Product Category: Industrial Human-Machine Interface (HMI) Touch Screen (Color TFT LCD Display)
Product Series: Red Lion G3 Series HMI (Compatible with Most Brand PLCs, DCS, and Industrial Control Systems)
Core Application: Specialized in intuitive human-machine interaction for industrial automation systems, widely used in manufacturing, packaging, material handling, automotive, food & beverage, and water/wastewater industries. It enables real-time equipment status monitoring, parameter setting, data logging, alarm management, and seamless communication with upstream controllers, ensuring efficient operation and quick troubleshooting in harsh industrial environments.
Core Features: 10.4-inch color TFT LCD display with high brightness and contrast; resistive touch panel for reliable operation with gloves; built-in multi-protocol communication interfaces; support for over 300 industrial protocols; integrated data logging and recipe management functions; rugged industrial-grade housing with IP65 front protection; configurable alarm notifications (visual/audio); easy programming via Red Lion Crimson 3.1 software; compact design for space-constrained installations; low power consumption and high operational stability.
2. Display & Touch Specifications
Display Type: 10.4-inch color TFT LCD
Resolution: 800 × 600 pixels (SVGA)
Display Color: 256,000 true colors; Brightness: 300 cd/㎡ (adjustable); Contrast Ratio: 500:1; Backlight Type: LED, service life ≥ 50,000 hours (at 25°C)
Touch Panel Type: 4-wire resistive touch, single-touch operation; Touch Accuracy: ±2 pixels (within display area); Response Time: ≤15ms; Touch Durability: ≥1 million touches per point
Communication & Interface: Communication Ports: 1 × RS-232, 1 × RS-422/RS-485 (switchable), 1 × Ethernet (RJ45), 1 × USB (Type A, for data transfer/printing); Supported Protocols: Modbus RTU/TCP, Ethernet/IP, PROFINET, DF1, ASCII, and over 300 industrial protocols via Crimson software; Ethernet Speed: 10/100 Mbps (auto-negotiation)
Electrical Specifications: Operating Voltage: 24V DC ±10% (19.2V DC ~ 28.8V DC); Power Consumption: ≤18W (typical), ≤22W (maximum); Reverse Polarity Protection: Yes; Overvoltage Protection: Yes (up to 36V DC)
Protection Functions: ESD Protection: ±15kV (air discharge), ±8kV (contact discharge) per IEC 61000-4-2; Surge Protection: ±2kV (power input) per IEC 61000-4-5; Ingress Protection: IP65 (front panel), IP20 (rear housing); Overheating Protection: Built-in temperature sensor with alarm output.
