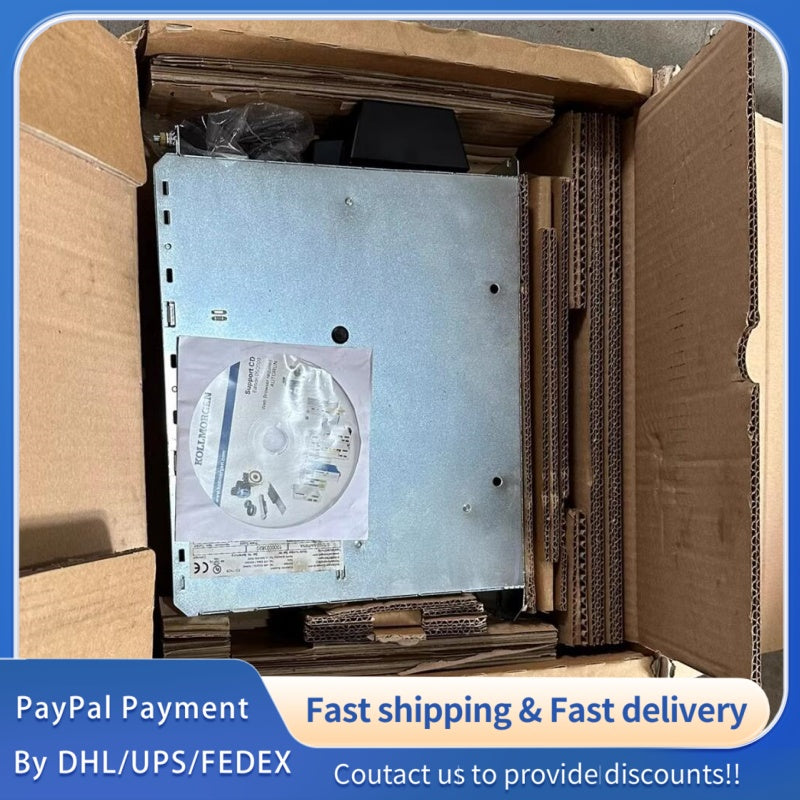

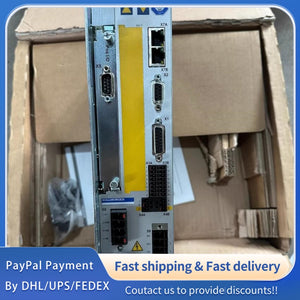

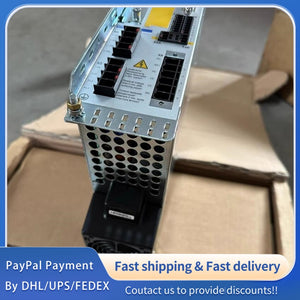

1pc new KOLLMORGEN S70102‑NAPMNA servo drive #LYQ007
1pc new KOLLMORGEN S70102‑NAPMNA servo drive #LYQ007
| Parameter | Value |
|---|---|
| Product Type | Digital Servo Amplifier |
| Model | S70102‑NAPMNA |
| Supply Voltage | 3 × 208 V – 10 % … 3 × 480 V + 10 %, 50/60 HzKollmorgen |
| Rated Output Current (RMS) | 1.5 A (at 3 × 400 V)Kollmorgen |
| Peak Output Current (RMS) | 4.5 A (for approx. 2 s, ±3 %) |
| DC Bus Voltage | 135 … 900 VDCKollmorgen |
| Switching Frequency | 8 kHzKollmorgen |
| Voltage Rise Speed (dU/dt) | 5.7 kV/µs (at 3 × 400 V)Kollmorgen |
| Rated Input Power (S1) | 1.1 kVAKollmorgen |
| Thermal Dissipation | 40 W (at rated current, incl. PSU losses, no brake)Kollmorgen |
| Noise Emission | Max. 43 dB(A)Kollmorgen |
| Weight | 4.4 kgKollmorgen |
| Dimensions (H × W × D) | 345 mm × 70 mm × 243 mm (without connectors)Kollmorgen |
| Cooling | Integrated fan |
| Overheat Protection | Automatic switch‑off |
| Control Interface | CANopen, EtherCAT, RS232, 24 V pulse‑directionKollmorgen |
| Safety Function | Dual‑channel STO (Safe Torque Off), SIL CL3 / PLeKollmorgen |
| Digital I/O | 2 programmable inputs/outputs (IEC 61131‑2 Type 1) |
| Analog Inputs | 2 channels, ±10 V, 16‑bit resolutionKollmorgen |
| Encoder Support | Resolver, EnDat, SSI, Hiperface, incremental encodersKollmorgen |
| Operating Temp. | 0 … +45 °C |
| Storage Temp. | −25 … +55 °CKollmorgen |
| Humidity | 5 … 95 % RH, non‑condensingKollmorgen |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
