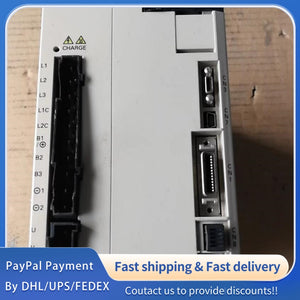

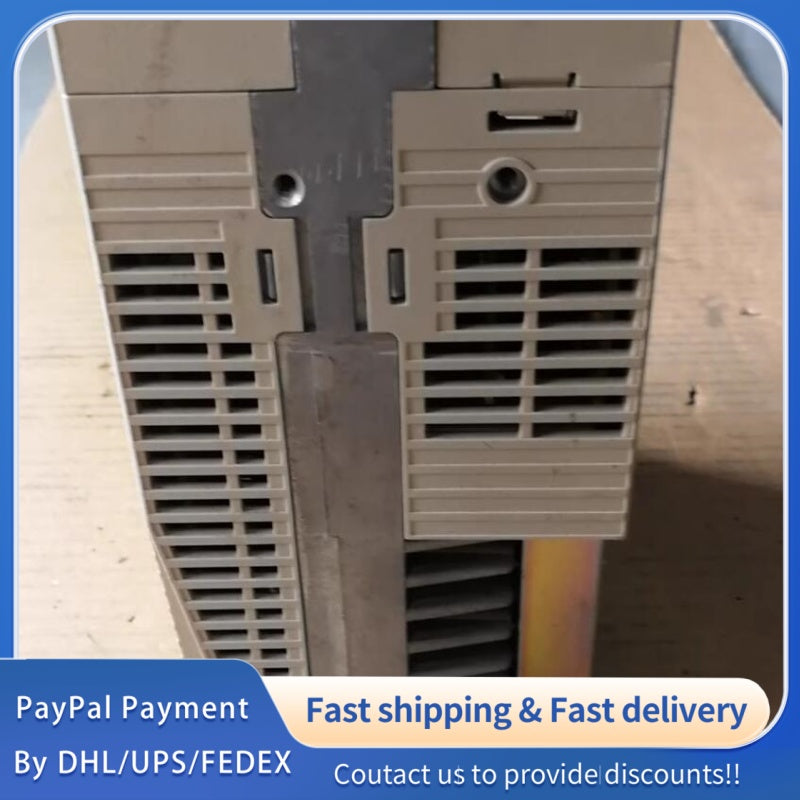

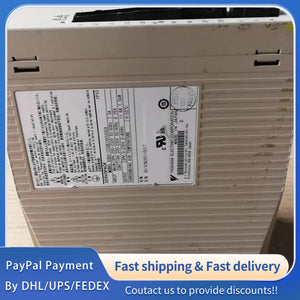

1 PCS used Yaskawa Servo Drive SGDV-120AE1AY595CA #LYQ007
1 PCS used Yaskawa Servo Drive SGDV-120AE1AY595CA #LYQ007
| Parameter | Value |
|---|---|
| Model | SGDV-120AE1AY595CA |
| Series | Sigma-5 SERVOPACK |
| Applicable Motor Max. Capacity | 1.5 kW |
| Continuous Output Current | 11.6 Arms |
| Max. Output Current | 28 Arms |
| Main Circuit Power Supply | Three-phase 200–230 VAC, +10%/–15%, 50/60 HzYaskawa |
| Control Circuit Power Supply | Single-phase 200–230 VAC, +10%/–15%, 50/60 HzYaskawa |
| Control Type | Analog/Pulse Train Command |
| Speed Control Range | 1:5000 |
| Speed Regulation (Rated Speed) | ±0.01% |
| Torque Control Repeatability | ±1% |
| Settling Time (±1%) | 1.2 ms (Typ.) |
| Positioning Pulse Input | 90° phase difference: 1 Mpps; CW/CCW: 200 kpps |
| Command Voltage Input | Max. ±12 V; Impedance ~14 kΩ; Time constant 16 μs |
| Operating Temperature | 0–55 °C |
| Storage Temperature | –20–+85 °C |
| Humidity | 90% RH max. (non-condensing) |
| Vibration Resistance | 4.9 m/s² |
| Shock Resistance | 19.6 m/s² |
| Protection Class | IP10 |
| Pollution Degree | 2 |
| Altitude | ≤1000 m |
| Overvoltage Category | III |
| Communication | USB 1.1 (12 Mbps), RS-422A |
| Dimensions (W×H×D) | Approx. 70×180×160 mm |
| Weight | Approx. 2.5 kg |
