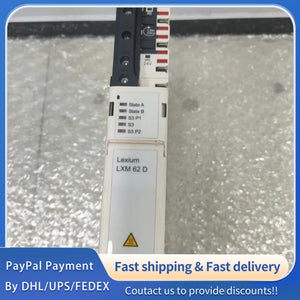

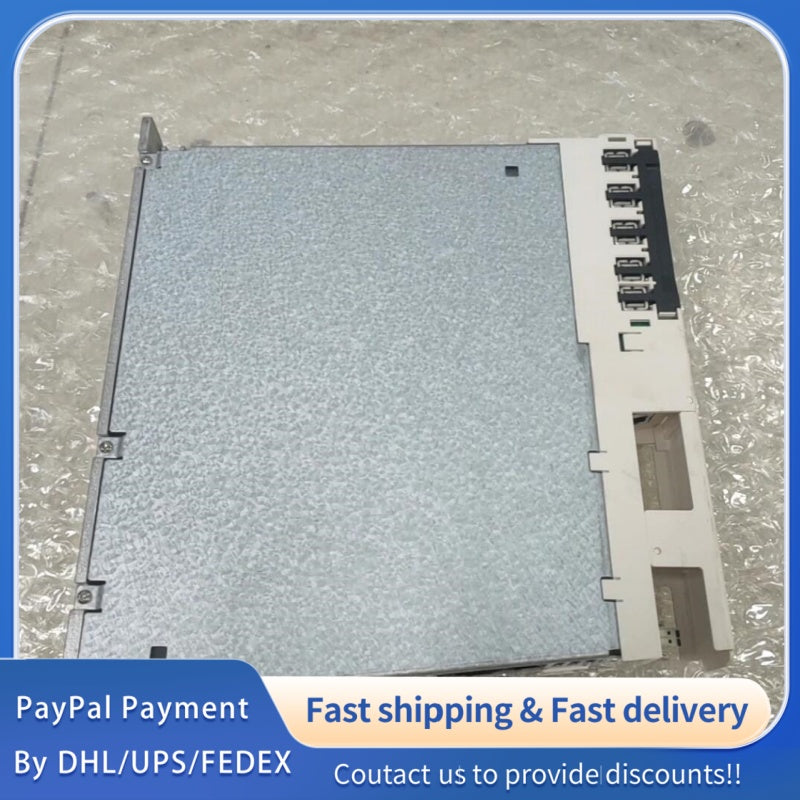

1 PCS USED Schneider Servo Drive LXM62DD27Dxxxxx #LYQ007
1 PCS USED Schneider Servo Drive LXM62DD27Dxxxxx #LYQ007
1 PCS USED Schneider Servo Drive LXM62DD27Dxxxxx #LYQ007
Part Number: LXM62DD27Dxxxxx; Model: LXM62DD27Dxxxxx; Product Name: Schneider LXM62DD27Dxxxxx High-Performance Servo Drive; Product Series: Schneider LXM62 Series Servo Drives, Precision Motion Control Drives for Medium-Power Applications
Brand: Schneider Electric (Schneider Electric SE, a global leader in energy management and automation solutions, delivering high-reliability industrial control components for manufacturing, robotics, packaging, and material handling industries worldwide. The brand is renowned for its innovative servo systems that combine precision, durability, and seamless integration with industrial automation ecosystems.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, 100% Functional, RoHS Compliant); Product Category: Stand-Alone Servo Drive, engineered to control AC servo motors with high dynamic response, enabling precise positioning, speed regulation, and torque control in complex motion systems. The "DD27D" variant is optimized for medium-power motor matching and industrial-grade signal processing.
Core Application: Widely integrated with Schneider AC servo motors in precision machining centers, robotic arms, electronic component placement machines, automated assembly lines, packaging machinery, and textile equipment. Specifically suitable for scenarios requiring fast dynamic response, ultra-high positioning precision, and stable operation in harsh industrial environments with electromagnetic interference and temperature fluctuations, such as automotive parts manufacturing and 3C product assembly.
Core Features: Advanced motion control algorithm supporting position, speed, and torque control modes; Built-in high-precision encoder interface for accurate position feedback; Rich communication protocols and I/O interfaces for multi-system integration; Industrial-grade components with strong anti-interference performance; Comprehensive protection functions against overvoltage, overcurrent, overheating, and short circuits; Compact structural design for space-saving installation; Compliance with international industrial safety and EMC standards; Seamless integration with Schneider SoMachine Motion configuration software.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Input Power Supply: 3-Phase AC 400V ±10% (50/60Hz), Voltage Frequency Range: 47Hz ~ 63Hz; Rated Input Current: 7A (Typical), Peak Input Current: 14A (10ms Duration);
Output Parameters: Output Voltage: 0 ~ 380V AC (Variable Frequency, Variable Voltage), Rated Output Current: 7A (Continuous), Peak Output Current: 21A (Short-Time, 3s); Output Frequency Range: 0Hz ~ 1000Hz, Frequency Resolution: 0.01Hz; Torque Ripple: ≤1% of Rated Torque; Supports motor power range up to 2.7kW (matched with Schneider servo motors);
Control Performance: Positioning Accuracy: ±0.003mm (Matching with 131072 PPR Absolute Encoder); Speed Regulation Accuracy: ±0.02% of Rated Speed; Dynamic Response Time: ≤25ms; Encoder Resolution Support: Up to 262144 PPR (Absolute Encoder), 1024 PPR (Incremental Encoder); Supports electronic gearbox and cam profile functions for complex motion sequences.
2.2 Communication & Interface Parameters
Communication Protocols: Built-in CANopen, Modbus RTU (RS-485 Interface), and Ethernet/IP; Optional PROFINET IO and EtherCAT Expansion; Data Transmission Rate: Up to 115200 bps (Modbus RTU), 100 Mbps (Ethernet Interfaces), 1 Mbps (CANopen);
Control Interfaces: 4×Analog Inputs (2×0-10V DC, 2×4-20mA, 16-bit Resolution), 8×Digital Inputs (Optically Isolated, DC 24V, Response Time ≤1ms), 4×Digital Outputs (Transistor Output, DC 24V, 1A per Channel); Encoder Interfaces: Absolute Encoder Interface (SSI, BiSS-C), Incremental Encoder Interface (A/B/Z Phase, Differential Input); Auxiliary Encoder Interface for Master-Slave Synchronization;
Configuration Interface: 1×USB Port (Type B, For Parameter Configuration, Firmware Update, and Data Logging), 1×Emergency Stop Interface (Safety Category 3, EN ISO 13849-1); EMC Performance: Built-in High-Performance EMC Filter (Compliant with EN 61000-6-4), ESD Protection: ±8kV (Contact), ±15kV (Air) Per IEC 61000-4-2; Surge Protection: ±2kV (Line to Ground) Per IEC 61000-4-5.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
