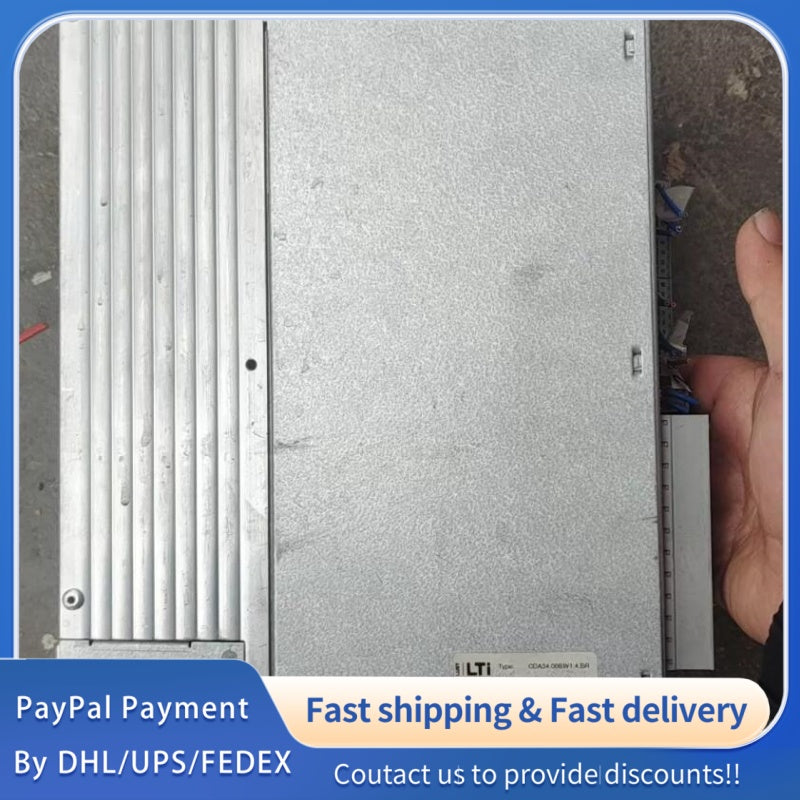

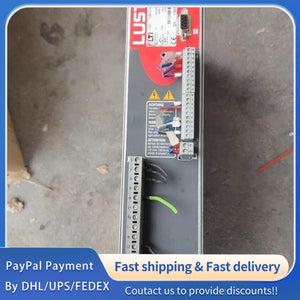

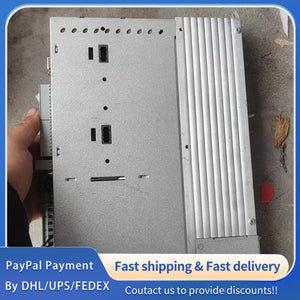

1 PCS used LUST CDA34.008, W1.4, BR servo drive#LYQ007
1 PCS used LUST CDA34.008, W1.4, BR servo drive#LYQ007
| Parameter | Value |
|---|---|
| Model | CDA34.008, W1.4, BR |
| Series | CDA3000 Inverter Drive |
| Recommended rated power (4‑pole motor) | 3.0 kW |
| Device rated power (400V) | 5.7 kVA |
| Input voltage | 3 x 460 V, -25% / +10% |
| Input frequency | 50/60 Hz ±10% |
| Output voltage | 3 x 0 ... 400/460 V |
| Rated output current (Iₙ, 4/8 kHz) | 7.8 A |
| Peak current (1.8 × Iₙ, 4 kHz, 30 s) | 14 A |
| Output frequency range | 0 ... 400 Hz |
| Switching frequency | 4, 8, 16 kHz (factory: 8 kHz) |
| Power loss (4 / 8 kHz) | 135 W / 162 W |
| Braking (BR version) | Internal braking resistor, 6.0 kW at 90 Ω |
| Min. external braking resistance | 81 Ω |
| Dimensions (W × H × D) | 70 × 303 × 250.5 mm |
| Frame size | BG3 |
| Weight | Approx. 4.6 kg |
| Cooling | Wall‑mounted (W‑type) |
| Protection class | IP20 |
| Operating temp. | -10 ... +45 °C |
| Mounting altitude | Up to 1000 m (1% derating per 100 m above) |
