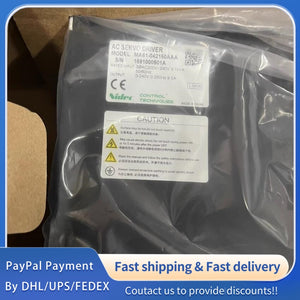

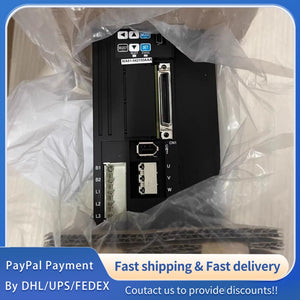

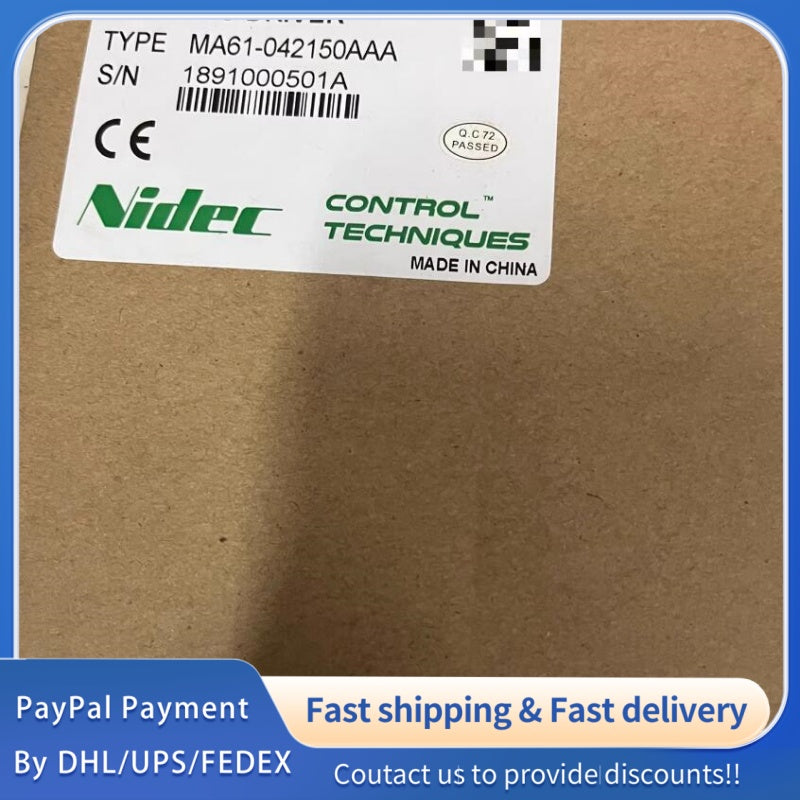

1 PCS new Nidec MA61-042150AAA Servo Drive #LYQ007
1 PCS new Nidec MA61-042150AAA Servo Drive #LYQ007
| Parameter | Value | Unit |
|---|---|---|
| Model | MA61-042150AAA | - |
| Supply Voltage | 3-phase 400 VAC ±10% | V |
| Input Frequency | 50/60 | Hz |
| Rated Output Current | 15.0 | A (rms) |
| Peak Output Current | 30.0 | A (rms) |
| Rated Output Power | 7.5 | kW |
| Max Output Frequency | 550 | Hz |
| Switching Frequency | 8 (default), 2–16 | kHz |
| Current Loop Bandwidth | Up to 3000 | Hz |
| Speed Loop Bandwidth | Up to 250 | Hz |
| Control Update Rate | 125 | μs |
| Encoder Feedback | Supports Hiperface, BiSS, EnDat, incremental | - |
| Encoder Resolution | Up to 8 million counts/rev (speed) | - |
| Position Loop Resolution | 16 bits/rev | - |
| Max Pulse Input Frequency | 1.2 | MHz |
| Electronic Gear Ratio | 0.00015:1 to 2.0000:1 | - |
| Analog Inputs | 3 × 12-bit (±10 V) | - |
| Digital Inputs | 4 × optically isolated (24 VDC) | - |
| Digital Outputs | 1 × relay, 3 × bidirectional | - |
| STO (Safe Torque Off) | SIL3 / PLe certified | - |
| Operating Temperature | -20 to +40 (derate to 55°C) | °C |
| Storage Temperature | -40 to +85 | °C |
| Humidity | 5–95% non-condensing | % |
| Altitude | 0–3000 m (1% derate/100 m above 1000 m) | m |
| Protection | IP20 (enclosure) | - |
| Dimensions (W×H×D) | 148 × 295 × 247 | mm |
| Weight | Approx. 6.2 | kg |
| Cooling | Forced air | - |
| Internal Braking Resistor | 125 W | W |
| EMC Compliance | EN 50081-2, EN 61800-3 | - |
| Certifications | CE, UKCA, RCM, EAC | - |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
