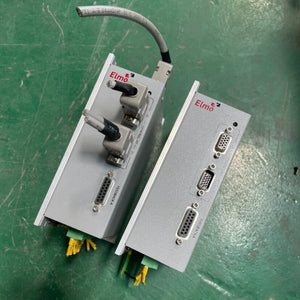

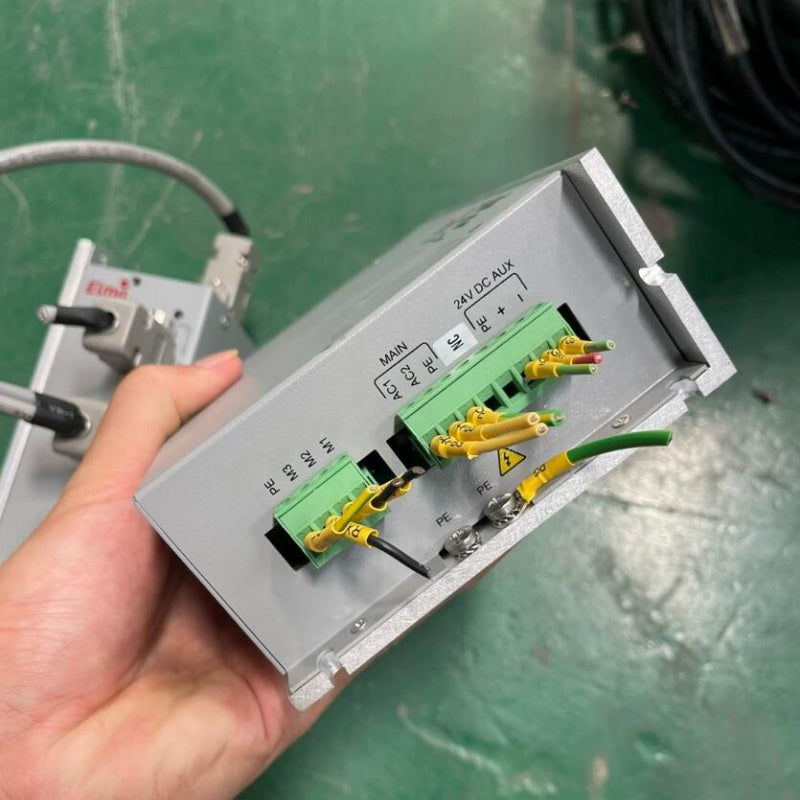

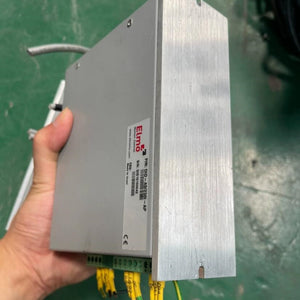

1 PCS used Elmo DID-A9/230I-AP Servo Drive #LYQ007
Parameter
Details
Manufacturer
Elmo Motion Control
Model
DID-A9/230I-AP
Series
SimplIQ (Cornet)
Control Type
Fully digital PWM servo drive
Control Modes
Position, Velocity, Current loops
Motor Type Support
Brushless, Brush, Linear motors
Parameter
Specification
Unit
Nominal Input Voltage
1x 230 VAC
VAC
Input Voltage Range
60 - 270 VAC
VAC
Frequency
47 - 63
Hz
Continuous Output Current
9
A (RMS)
Peak Output Current
18
A (2×Ic)
Continuous Output Power
2700
W
Peak Output Power
6800
W
Efficiency
>93
%
Auxiliary Supply
24 VDC ±15%
VDC
Auxiliary Power
20
VA
Switching Frequency
22
kHz
Parameter
Specification
Feedback Types
Resolver, Incremental encoder, Absolute encoder
Communication
CANopen, RS-232
Resolution
16-bit current/velocity, 32-bit position
Parameter
Specification
Unit
Operating Temp
-25 to +45
°C
Storage Temp
-40 to +85
°C
Humidity
5-95% non-condensing
RH
Cooling
Forced air (fan)
-
Dimensions
175×250×55
mm
Weight
0.69
kg
Protection
IP20
-
