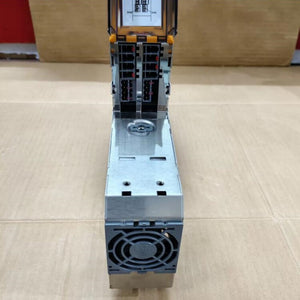

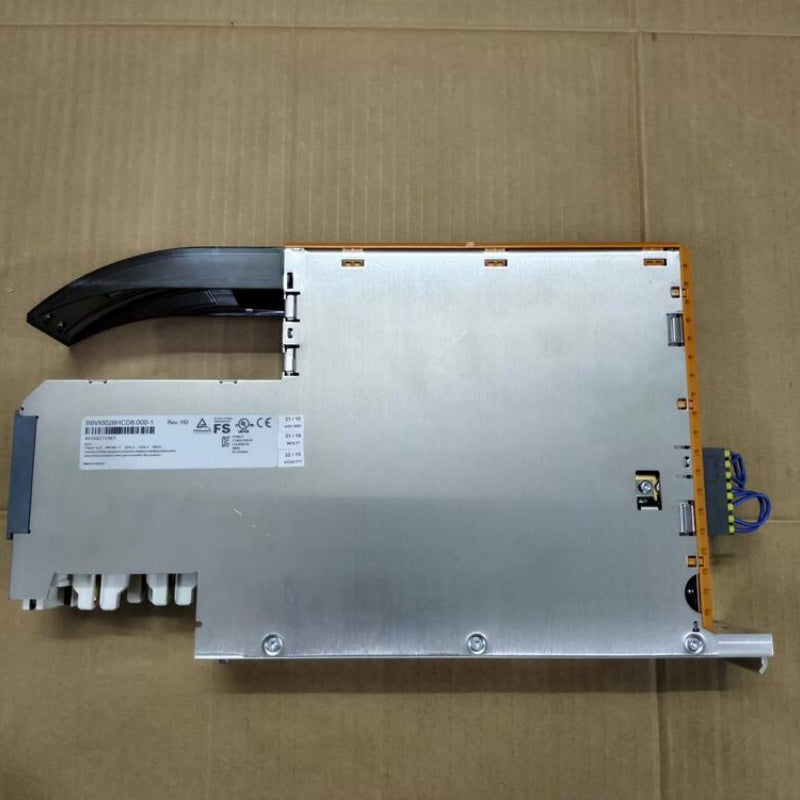

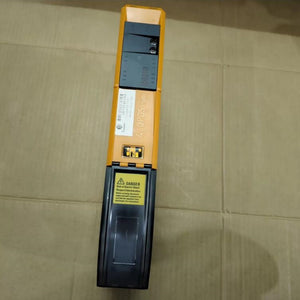

1 PCS used 8BVI0028HCD8.000-1 servo drive #LYQ007
1 PCS used 8BVI0028HCD8.000-1 servo drive #LYQ007
1 PCS used 8BVI0028HCD8.000-1 servo drive #LYQ007
| Parameter Category | Parameter Name | Value |
|---|---|---|
| Product Identity | Model Number | 8BVI0028HCD8.000-1 |
| Product Identity | Type | ACOPOSmulti Two-Axis Inverter Module |
| Product Identity | Cooling Mount | Cold Plate / Feed-Through |
| Electrical | Input Voltage (24V Supply) | 25 VDC ±1.6%B& R Industrial Automation |
| Electrical | Output Voltage (24V Out) | 24 VDC +5.8% / +0.2%B& R Industrial Automation |
| Electrical | Fuse Protection | 500 mA (slow-blow), electronic, auto-resetB& R Industrial Automation |
| Electrical | DC Bus Voltage Range | 260–315 VDC; 315–900 VDCB& R Industrial Automation |
| Electrical | DC Bus Capacitance | 165 µFB& R Industrial Automation |
| Motor Output | Continuous Power per Axis | 2.8 kWB& R Industrial Automation |
| Motor Output | Continuous Current per Axis | 3.8 AₑffB& R Industrial Automation |
| Motor Output | Peak Current per Axis | 9.5 AₑffB& R Industrial Automation |
| Motor Output | Max. Overcurrent Limitation | 10 AB& R Industrial Automation |
| Switching | Default Switching Frequency | 5 kHz (Nominal)B& R Industrial Automation |
| Switching | Supported Frequencies | 5 / 10 / 20 kHzB& R Industrial Automation |
| Switching | Max. Voltage Rise Rate | 10 kV/µs (IEC 60034-17)B& R Industrial Automation |
| Environment | Operating Temp | 5–40 °C (up to 55 °C with derating)B& R Industrial Automation |
| Environment | Storage Temp | -25 to +55 °CB& R Industrial Automation |
| Environment | Transport Temp | -25 to +70 °CB& R Industrial Automation |
| Environment | Humidity (Operating/Storage) | 5–85%, non-condensingB& R Industrial Automation |
| Environment | Max. Altitude | 0–500 m (up to 4000 m with derating)B& R Industrial Automation |
| Environment | Protection Degree | IP20 (EN 60529)B& R Industrial Automation |
| Environment | Pollution Degree | 2 (non-conductive, EN 60664-1)B& R Industrial Automation |
| Environment | Overvoltage Category | III (IEC 60364-4-443:1999)B& R Industrial Automation |
| Mechanical | Module Width | 1 unitB& R Industrial Automation |
| Mechanical | Weight (Wall/Cold Plate/Feed-Through) | ~2.9 kg / ~2.3 kg / ~2.3 kg |
| Safety | Certifications | C-UL-US ListedB& R Industrial Automation |
| EMC | Max Motor Cable Length | 5 kHz: 25 m; 10 kHz: 25 m; 20 kHz: 10 mB& R Industrial Automation |
| I/O | Digital Inputs | 2 inputs; Rated 24 VDC, Max 30 VDC; Switch Threshold <5 V (>15 V)B& R Industrial Automation |
| I/O | Digital Input Current | ~10 mA (rated)B& R Industrial Automation |
| I/O | Digital Input Delay | 52 µs (pos. edge, filtered); 53 µs (neg. edge, filtered)B& R Industrial Automation |
| I/O | Digital Outputs | 2 outputs; 24 VDC ±6%; Max Current 1.1 AB& R Industrial Automation |
| I/O | Output Resistance | Max 0.5 ΩB& R Industrial Automation |
| Diagnostics | Undervoltage Monitoring Threshold | 24 VDC +0% / -5%B& R Industrial Automation |
| Diagnostics | Cable Breakage Monitoring Threshold | ~0.25 AB& R Industrial Automation |
| Diagnostics | Brake Extinction Potential | ~30 VB& R Industrial Automation |
| Diagnostics | Max Extinction Energy per Axis | 3 WsB& R Industrial Automation |
