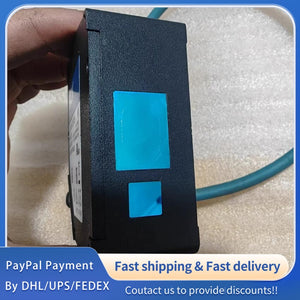

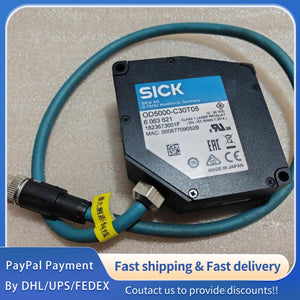

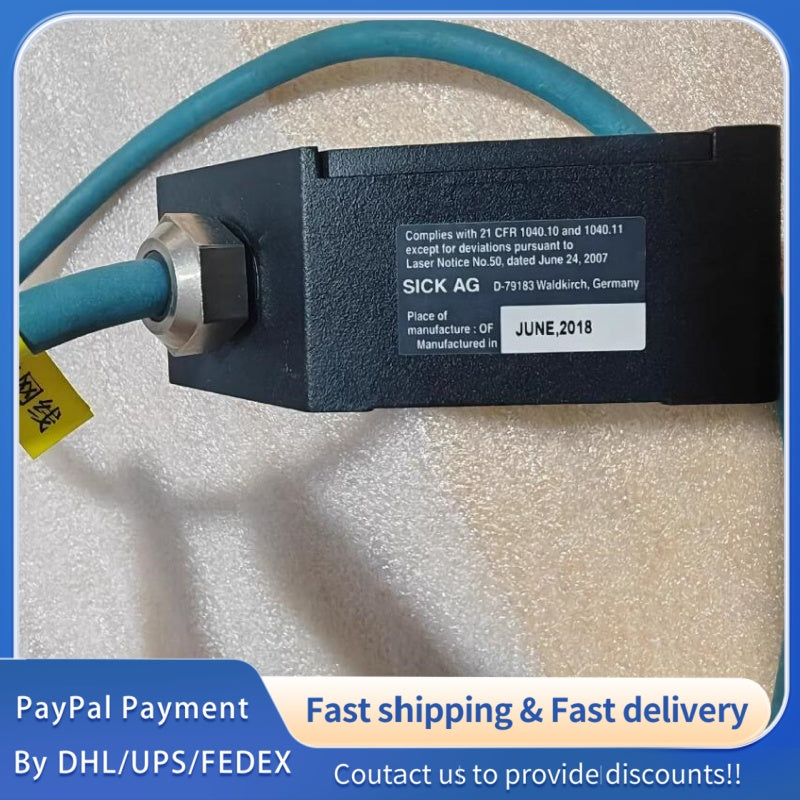

1 PCS used SICK OD5000‑C30T05 Displacement Sensor #LYQ007
1 PCS used SICK OD5000‑C30T05 Displacement Sensor #LYQ007
| Parameter | Value |
|---|---|
| Ordering Information | |
| Model | OD5000‑C30T05SICK |
| Part Number | 6063621SICK |
| Mechanical & Electrical | |
| Supply Voltage | 12 V … 24 V DC, ±10% (incl. residual ripple)SICK |
| Power Consumption | 180 mA at 24 V DCSICK |
| Warm‑up Time | < 10 minSICK |
| Housing Material | Die‑cast aluminumSICK |
| Window Material | Plastic (PMMA)SICK |
| Connection | Cable with plug, M12, 8‑pin, A‑coded, 50 cmSICK |
| Weight | 280 gSICK |
| Dimensions (W × H × D) | 25.9 mm × 71.5 mm × 53.2 mmSICK |
| Protection Class | IP67SICK |
| Performance | |
| Measuring Range | 25 mm … 35 mmSICK |
| Measuring Range (Specular) | 22.5 mm … 28.5 mmSICK |
| Target | Natural objectsSICK |
| Repeatability | 0.05 µmSICK |
| Linearity (Diffuse) | ±3 µm (near side), ±3 µm (far side)SICK |
| Linearity (Specular) | ±4 µm (near side), ±4 µm (far side)SICK |
| Response Time | ≥ 12.5 µsSICK |
| Output Time | ≥ 0.0125 msSICK |
| Measuring Frequency | Up to 80 kHzSICK |
| Optical | |
| Light Source | Visible red laserSICK |
| Laser Class | 1 (IEC 60825‑1:2014, EN 60825‑1:2014)SICK |
| Typical Light Spot Size | Ø 30 µmSICK |
| Outputs | |
| Digital Outputs | 1 … 3 × PNP/NPN, selectable |
| Analog Output | 1 × current output (4 … 20 mA, ≤ 300 Ω) |
| Communication | Ethernet (TCP/IP, UDP/IP) |
| Ambient Data | |
| Operating Temperature | –10 °C … +50 °CSICK |
| Storage Temperature | –20 °C … +70 °CSICK |
| Temperature Drift | ±0.01 % FS/K (–10 °C … +40 °C)SICK |
| Special Functions | |
| Transparent Material Thickness | 0.18 mm … 0.6 mmSICK |
