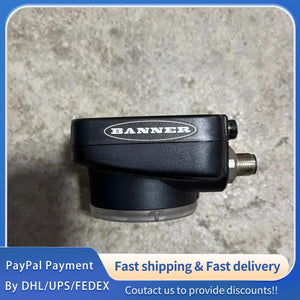

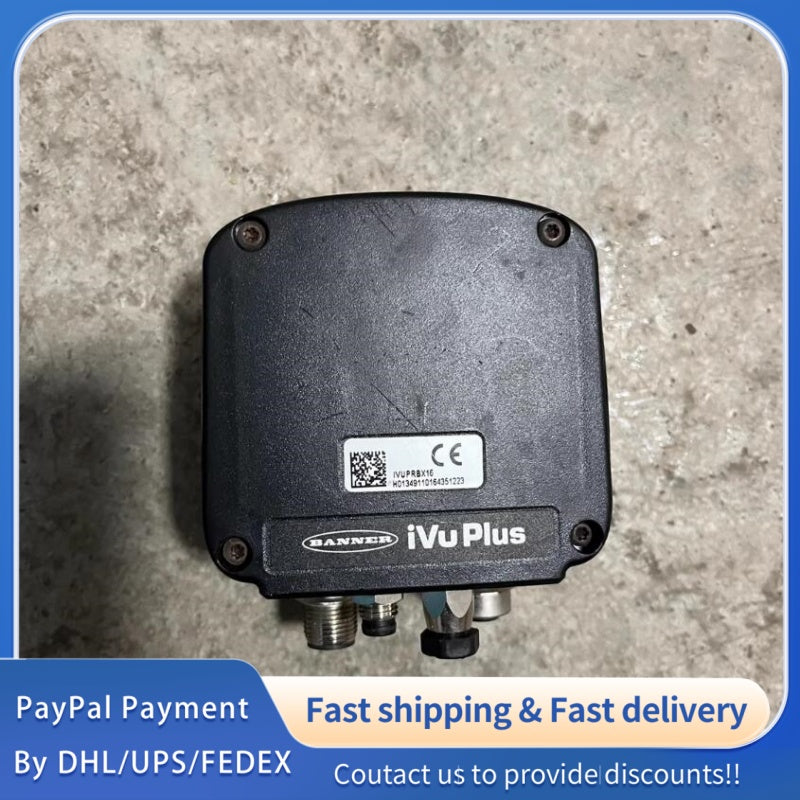

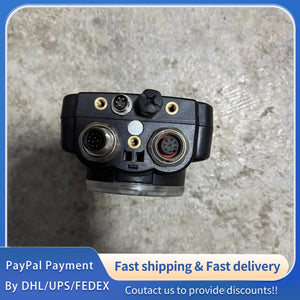

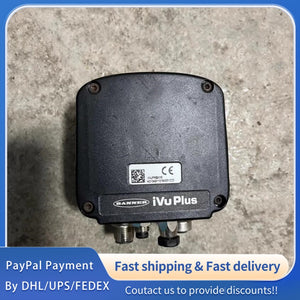

1 PCS used Banner IVUPRBX16 (iVu Plus BCR Gen2) Vision Sensor #LYQ007
1 PCS used Banner IVUPRBX16 (iVu Plus BCR Gen2) Vision Sensor #LYQ007
| Parameter | Value |
|---|---|
| Model | IVUPRBX16 (iVu Plus BCR Gen2 Remote Sensor) |
| Part Number | 3090969 |
| Function | Barcode Reader (BCR), 1D/2D fixed-mount image sensor |
| Image Sensor | 1/3" CMOS monochrome, 752 × 480 pixels (0.36 MP) |
| Lens | 16 mm, C‑mount / M12 × 1 |
| Lighting | No integrated light (external light optional) |
| Frame Rate | Up to 60 fps |
| Inspection Storage | Up to 30 inspections |
| Supply Voltage | 10–30 VDC (nominal 12/24 VDC) |
| Current Consumption | ≤ 1000 mA |
| Housing | Black thermoplastic (Valox™), acrylic window |
| Dimensions (H×W×D) | 79 × 81 × 52 mm |
| Weight | Approx. 0.68 kg (1.49 lb) |
| Operating Temp | 0 °C to +50 °C |
| Ingress Protection | IP67 |
| Display | Remote touchscreen (separate purchase) |
| Connectors | 12‑pin M12 (power), 2 × 4‑pin M8 (USB/Ethernet), 8‑pin M12 (remote display) |
| Communication | Ethernet/IP, PROFINET, Modbus TCP, RS‑232 |
| Digital I/O | 1 PNP/NPN output; external trigger/strobe input |
| Certifications | CE, cULus |
| Special Features | Washdown‑rated, no PC setup required |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
