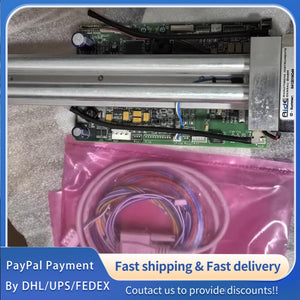

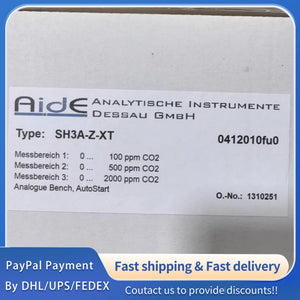

1 PCS new IDE SH3A-Z-XT Infrared Gas Sensor #LYQ007
1 PCS new IDE SH3A-Z-XT Infrared Gas Sensor #LYQ007
1 PCS new IDE SH3A-Z-XT Infrared Gas Sensor #LYQ007
General Information (IDE Original Factory Standard)
|
Parameter
|
Specification (SH3A-Z-XT)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand
|
IDE, Original Factory, Brand New Genuine Product
|
-
|
100% brand new IDE original product, manufactured in strict accordance with original factory quality control standards, factory calibrated and tested before delivery to ensure consistent and accurate performance[1].
|
|
Product Model
|
SH3A-Z-XT (Infrared Gas Sensor; NDIR Technology)
|
-
|
Original factory model, unchanged, belonging to IDE infrared gas sensor series, adopting NDIR core technology, with fixed detection and output configuration, dedicated for high-precision gas concentration detection[1].
|
|
Product Type
|
Infrared Gas Sensor, NDIR Gas Detector, High-Precision Gas Sensing Module
|
-
|
Integrated design, equipped with high-resolution 16-bit ADC, no moving parts, featuring high stability and long service life, specialized for industrial and environmental gas concentration supervision[1].
|
|
Detection Principle
|
NDIR (Non-Dispersive Infrared) Technology, VIS-/NIR- Supplementary Detection
|
-
|
Adopts advanced NDIR technology, combined with VIS- and NIR- supplementary detection, ensuring high accuracy and strong anti-interference ability, suitable for various complex gas detection scenarios[1].
|
|
Detectable Gases
|
CO, CO2, NO, SO2, CH4, CnHm, C2H2, SO2F2, SF6, N2O, CF4, CHF3, etc.
|
-
|
Support single-component or multi-component gas detection (1-3 components simultaneously; up to 6 components for double-layer module), customizable according to customer requirements[1].
|
|
Measurement Range
|
Customizable; Min 0-20ppm, Max 0-100%vol (varies by gas type)
|
ppm/%vol
|
Wide measurement range, customizable according to specific gas type and application scenario; for example, CO2: 0-20ppm to 0-100%vol, CO: 0-500ppm to 0-100%vol[1].
|
|
Accuracy
|
±1% F.S. (Most Gas Types); ±2% F.S. (CHF3)
|
-
|
High-precision detection, with accuracy of ±1% F.S. for most detectable gases, ±2% F.S. for CHF3, ensuring reliable and accurate gas concentration data[1].
|
|
Repeatability
|
±0.5% (Zero Point); ±0.5% (Sample Gas)
|
-
|
Excellent repeatability, with zero point and sample gas repeatability both ±0.5%, ensuring consistent detection results in long-term operation[1].
|
|
Response Time (T90)
|
<2s (at 60l/h); <1s (at 180l/h)
|
s
|
Fast response speed, T90 less than 2s at 60l/h flow rate, less than 1s at 180l/h flow rate, realizing real-time gas concentration monitoring[1].
|
|
Range Drift
|
±2% F.S.
|
-
|
Low range drift, only ±2% F.S., ensuring stable detection performance in long-term continuous operation without frequent calibration[1].
|
|
Noise
|
±0.5% F.S.
|
-
|
Low noise design, noise value ±0.5% F.S., effectively reducing interference and ensuring accurate detection data[1].
|
|
Supply Voltage
|
5V DC (Single Power Supply)
|
V DC
|
Single 5V DC power supply, convenient for power connection, suitable for various portable and fixed installation scenarios[1].
|
|
Power Consumption
|
8W (Single Layer Module); 15W (Double Layer Module)
|
W
|
Low power consumption, 8W for single layer module and 15W for double layer module, energy-saving and environment-friendly, suitable for long-term continuous operation[1].
|
|
Output Signal
|
Digital: RS232, RS485, USB; Analog: 0~1V, 0(4)~20mA
|
-
|
Multiple output signals available, compatible with different control systems, convenient for data transmission and integration[1].
|
|
Compensation Function
|
Automatic Temperature and Pressure Compensation
|
-
|
Equipped with automatic temperature and pressure compensation function, ensuring accurate detection results under different temperature and pressure conditions[1].
|
|
Operating Temperature Range
|
0 ~ 45 ℃ (Ambient); No Condensation Allowed
|
℃
|
Adaptable to common industrial and environmental temperature ranges, stable performance without malfunction, no condensation allowed during operation[1].
|
|
Preheating Time
|
<3min
|
min
|
Short preheating time, less than 3min, enabling quick startup and entering normal detection state[1].
|
|
Dimensions
|
(160~290) × 100 × (70~115) mm (varies by configuration)
|
mm
|
Compact size, dimensions vary slightly according to module configuration, convenient for installation in limited space[1].
|
|
Calibration
|
Manual Zero Point Calibration; Software-Assisted Calibration
|
-
|
Supports manual zero point calibration and software-assisted calibration, easy to operate, ensuring long-term detection accuracy[1].
|
|
Optional Interface
|
2 Electrochemical Unit Analog and Digital Input Interfaces
|
-
|
Optional 2 electrochemical unit analog and digital input interfaces, expandable functions, compatible with more detection scenarios[1].
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
