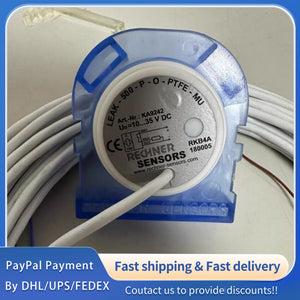

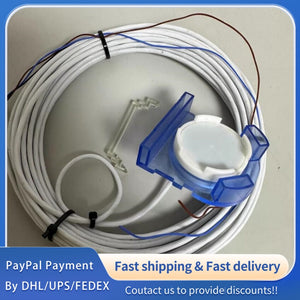

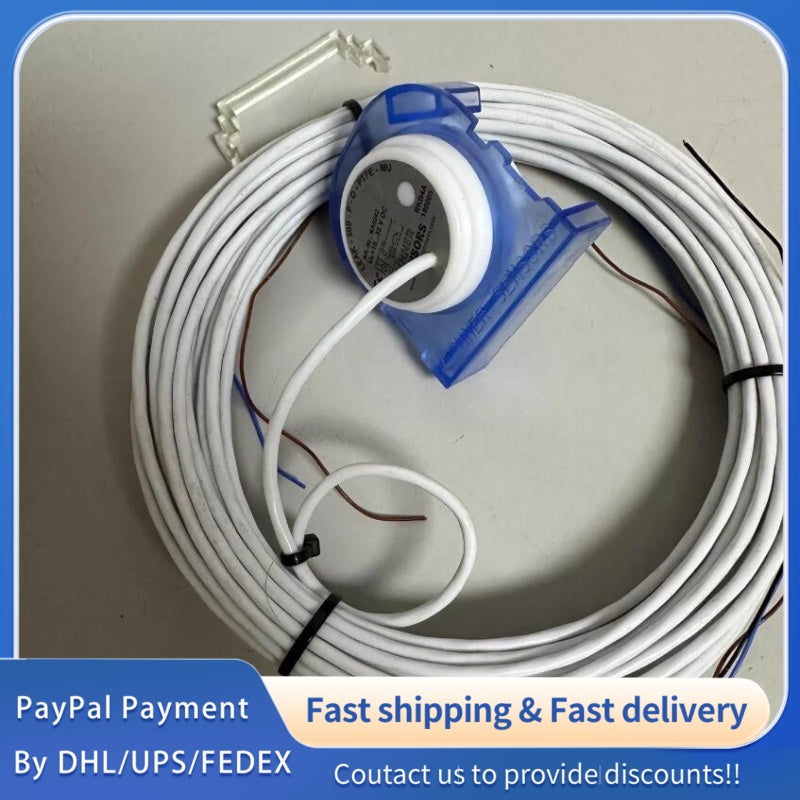

1 PCS used Rechner LEAK-500-O-P-PTFE-MU Leak Detection Sensor #LYQ007
1 PCS used Rechner LEAK-500-O-P-PTFE-MU Leak Detection Sensor #LYQ007
| Parameter Category | Parameter Name | Specification |
|---|---|---|
| Basic Identification | Product Model | LEAK-500-O-P-PTFE-MU (PNP, Normally Closed, PTFE, M12 Connector) |
| Basic Identification | Alternative OEM Code | KA9252 (Equivalent to LEAK-500-P-Ö-PTFE) |
| Basic Identification | Brand | Rechner Sensors (Germany) |
| Basic Identification | Detection Principle | Capacitive Leak Detection |
| Basic Identification | Application | Clean rooms, chemical processing, semiconductor, drip tray monitoring, pipe/container leak alarm |
| Electrical Specifications | Operating Voltage (UB) | 10 ... 35 V DC |
| Electrical Specifications | Max Output Current (Ie) | 250 mA |
| Electrical Specifications | Max Voltage Drop (Ud) | ≤ 2.0 V |
| Electrical Specifications | No-Load Current (Io) | Typ. 15 mA |
| Electrical Specifications | Permitted Residual Ripple | ≤ 10 % |
| Electrical Specifications | Output Type | PNP, Normally Closed (NC) |
| Electrical Specifications | Connection | M12 4-pin Male Connector (MU) |
| Electrical Specifications | Protective Circuits | Built-in (Short-circuit, Overload, Reverse Polarity) |
| Electrical Specifications | LED Indicators | Green (Power ON), Red (Leak Detected) |
| Mechanical Specifications | Sensing Distance (Sn) | 2 mm (Flush Mountable) |
| Mechanical Specifications | Housing Diameter | Ø 38 mm |
| Mechanical Specifications | Housing Material | PTFE (FDA 21 CFR 177.1550) |
| Mechanical Specifications | Active Surface | PTFE (FDA 21 CFR 177.1550) |
| Mechanical Specifications | Lid Material | PTFE (FDA 21 CFR 177.1550) |
| Environmental Ratings | Operating Temperature | -25 ... +70 °C (Clean Room Conditions) |
| Environmental Ratings | Storage Temperature | -40 ... +85 °C |
| Environmental Ratings | Protection Class | IP67 (IEC 529) |
| Environmental Ratings | Vibration Resistance | 10 ... 500 Hz, 3 g |
| Environmental Ratings | Shock Resistance | 100 m/s² (10 g), 11 ms |
| Standards & Compliance | Standards | EN 60947-5-2 |
| Standards & Compliance | Certifications | CE |
