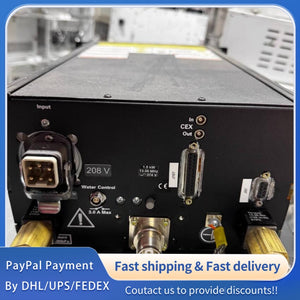

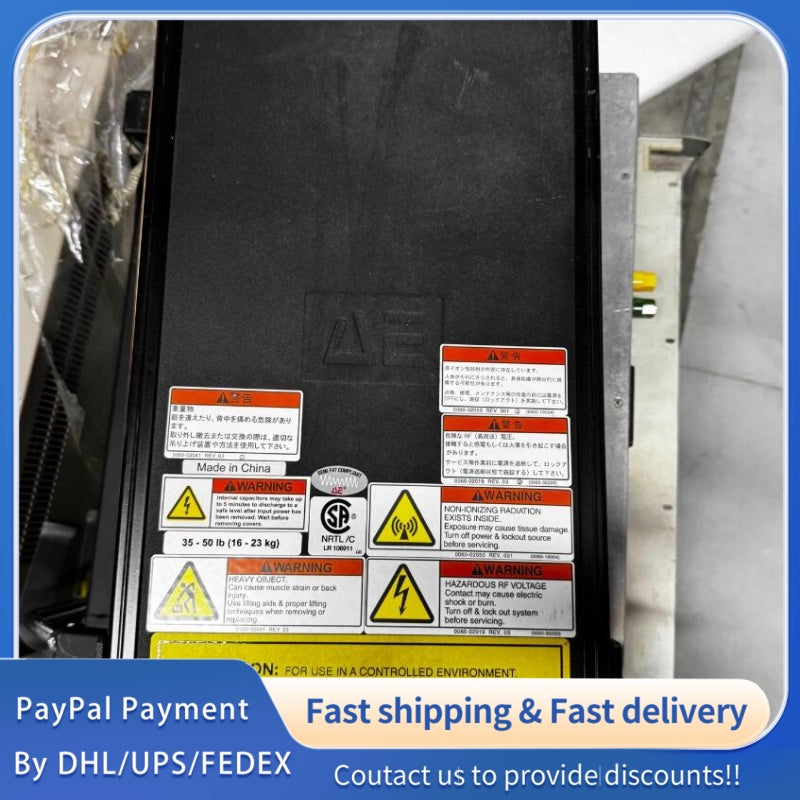

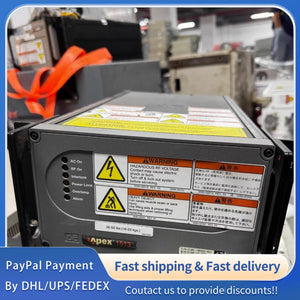

1 PCS used AE Apex 1513 RF Power Supply 0190-19022-001 #LYQ007
1 PCS used AE Apex 1513 RF Power Supply 0190-19022-001 #LYQ007
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
AE Apex 1513 RF Power Supply
|
-
|
Industrial Grade High-Precision RF Power Supply, Original AE Apex Factory Product, Adopting MOSFET Power Amplifier
|
|
Model Number
|
1513 (0190-19022-001)
|
-
|
Unique model code for AE Apex 1513 series RF power supply, consistent with factory calibration standards
|
|
Brand & Manufacturer
|
AE Apex (Original Factory)
|
-
|
Complies with AE Apex Strict Quality Control and Industrial RF Power Supply Standards, Ensuring High Reliability
|
|
Product Certification
|
CE, RoHS, FCC, UL Certified
|
-
|
Meets International Industrial Safety, Electromagnetic Compatibility (EMC) and Environmental Standards
|
|
Core Application
|
Semiconductor Manufacturing, Plasma Processing, Industrial Heating, RF Testing Equipment
|
-
|
Suitable for High-Precision RF Power Supply Scenarios Requiring Stable Output, Supports 1W Precision Output
|
|
Protection Grade
|
IP20
|
-
|
Protects Against Solid Objects ≥12.5mm, Suitable for Cabinet Installation, Indoor Use Only
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Input Voltage (AC)
|
85
|
230
|
264
|
V AC
|
Single-Phase, 50/60 Hz Auto-Adaptation, Stable Input Power Required, Ripple ≤ 100mVpp
|
|
Input Current (RMS)
|
0.8
|
1.8
|
3.0
|
A
|
At Rated Input Voltage, Full Load Condition, Matching 1500W Maximum Output
|
|
RF Output Power
|
0
|
1200
|
1500
|
W
|
Continuous Stable Output, Power Resolution 1W, Precise Adjustable, Consistent with Factory Power Specificationssuperscript:1:
|
|
RF Operating Frequency
|
13.56
|
13.56
|
13.56
|
MHz
|
Fixed Frequency, Frequency Stability ±0.01%, Suitable for Standard RF Application Scenarios
|
|
RF Output Voltage (Peak)
|
180
|
450
|
750
|
V
|
Depends on Load Impedance, Stable Output Without Distortion, Matching MOSFET Amplifier Performance
|
|
Load Impedance
|
50
|
50
|
50
|
Ω
|
Standard 50Ω Load, Compatible with Most RF Application Equipment, Ensuring Matching Accuracy
|
|
Power Conversion Efficiency
|
70
|
75
|
80
|
%
|
RF Final Stage Efficiency Up to 85%, Energy-Saving Design, Consistent with Factory Efficiency Standardsuperscript:1:
|
|
Power Regulation Accuracy
|
-
|
±0.5
|
-
|
%
|
At Rated Output Power, Load Fluctuation ≤ 10%, Ensuring High-Precision Power Control
|
