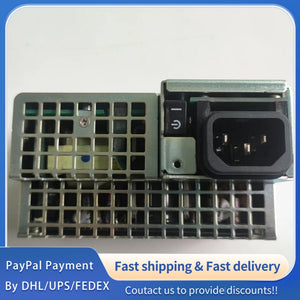

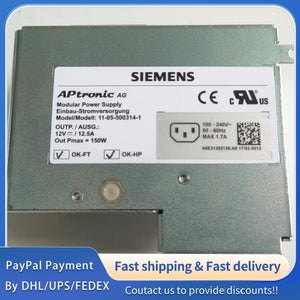

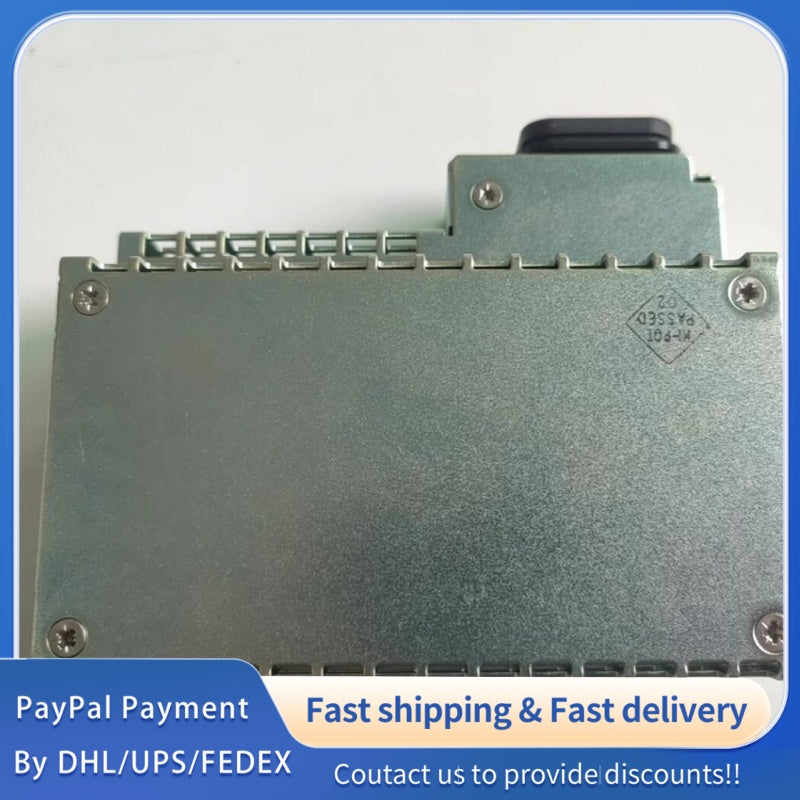

1 PCS USED Siemens Power Supply 11-05-500314-1 #LYQ007
1 PCS USED Siemens Power Supply 11-05-500314-1 #LYQ007
|
Item
|
Specification
|
|
Model Number
|
11-05-500314-1
|
|
Product Name
|
Industrial Switching Power Supply
|
|
Product Series
|
Siemens Industrial Power Supply Series, Single Output DC Power Supply for Automation
|
|
Brand
|
Siemens AG (Siemens Industrial Automation)
|
|
Product Status
|
Industrial-Grade Original Equipment, RoHS 2.0 Compliant, Lead-Free Construction
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Input Voltage Range (AC)
|
85
|
230
|
264
|
Volts AC
|
50/60Hz, Single-Phase, Universal Input
|
|
Input Current (Full Load)
|
-
|
1.8
|
2.5
|
Amps
|
At 85V AC Input, Full Load Condition
|
|
Output Voltage
|
23.4
|
24.0
|
24.6
|
Volts DC
|
Adjustable via built-in trimmer (±2.5%)
|
|
Output Current
|
0
|
10.0
|
10.0
|
Amps
|
Continuous Output, Non-Derated at 25℃
|
|
Efficiency
|
88
|
92
|
-
|
%
|
At Full Load, 230V AC Input, 25℃ Ambient
|
|
Ripple & Noise
|
-
|
40
|
100
|
mV p-p
|
Measured with 20MHz Bandwidth, Full Load
|
|
Overvoltage Protection (OVP)
|
27.0
|
28.0
|
29.0
|
Volts DC
|
Latching Type, Auto-Recovery After Fault Clearance
|
|
Overcurrent Protection (OCP)
|
10.5
|
12.0
|
13.5
|
Amps
|
Constant Current Mode, Auto-Recovery
|
|
Overtemperature Protection (OTP)
|
-
|
85
|
-
|
℃
|
Protects Power Supply from Overheating, Auto-Recovery
|
|
Parameter
|
Specification
|
|
Dimensions (W×H×D)
|
35mm × 125mm × 115mm (DIN Rail Mount Design, Aluminum Housing)
|
|
Net Weight
|
Approximately 450g (Without Cables & Mounting Hardware)
|
|
Mounting Method
|
DIN Rail Mount (35mm Standard DIN Rail), Wall-Mount Optional via Bracket
|
|
Cooling Method
|
Passive Convection Cooling, Fanless Design, Maintenance-Free Operation
|
|
Input Connector
|
Screw Terminal Block, Accepts 1.0-2.5mm² Wires, Anti-Loose Design
|
|
Output Connector
|
Dual Screw Terminal Blocks (Positive/Negative), Compatible with 1.0-2.5mm² Wires
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
