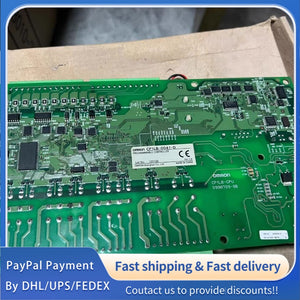

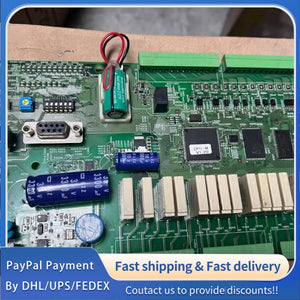

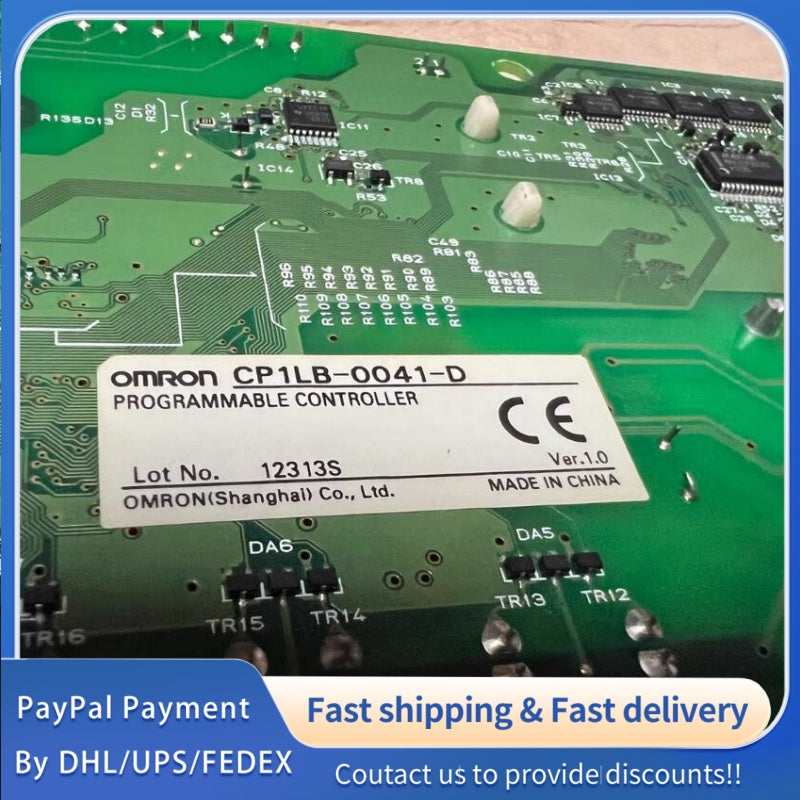

1 PCS used OMRON PLC CP1LB-0041-D board #LYQ007
1 PCS used OMRON PLC CP1LB-0041-D board #LYQ007
| Item | Specification |
|---|---|
| Model | CP1LB-0041-D |
| Supply Voltage | DC 24 V |
| Operating Voltage Range | DC 20.4 to 26.4 V |
| Power Consumption | 13 W max. |
| Inrush Current | 30 A max. (cold start at room temperature), 20 ms max. |
| External Power Supply | None |
| Built-in Digital Inputs | 4 points |
| Built-in Digital Outputs | 1 point |
| Input Type | Sinking (NPN) |
| Output Type | Transistor (Sinking) |
| Program Capacity | 5 K steps |
| Data Memory Capacity | 10 K words |
| Basic Instruction Execution Time | 0.55 µs |
| High-speed Counter Inputs | 2 channels, 100 kHz max. |
| Pulse Outputs | 1 channel, 100 kHz max. |
| Interrupt Inputs | 2 inputs (Response time: 0.3 ms) |
| Communication Ports | 1 × USB (Programming port) |
| Max. Expansion Units | 1 unit |
| Max. Local I/O Points | 54 points |
| Max. Analog I/O Channels | 8 channels |
| Operating Temperature | 0 to 55 °C |
| Operating Humidity | 10% to 90% (no condensation) |
| Storage Temperature | -20 to 75 °C (excluding battery) |
| Vibration Resistance | Conforms to JIS C0040: 10 to 57 Hz, 0.075-mm amplitude; 57 to 150 Hz, 9.8 m/s² |
| Shock Resistance | Conforms to JIS C0041: 147 m/s², 3 times in X, Y, Z directions |
| Noise Immunity | Conforms to IEC 61000-4-4: 2 kV (power supply line) |
| Insulation Resistance | 20 MΩ min. (at 500 VDC) |
| Dielectric Strength | No insulation between primary and secondary for DC power supply |
| Weight | Approx. 150 g |
| Dimensions (W×H×D) | 45 × 90 × 60 mm |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
