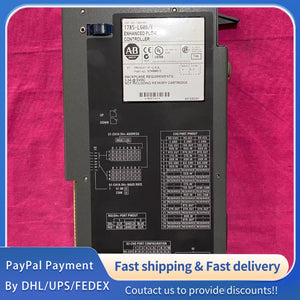

1 PCS used Allen-Bradley 1785-L60B/E PLC-5/60 Controller #LYQ007
1 PCS used Allen-Bradley 1785-L60B/E PLC-5/60 Controller #LYQ007
1 PCS used Allen-Bradley 1785-L60B/E PLC-5/60 Controller #LYQ007
Controller Overview: The Allen-Bradley 1785-L60B/E is an original factory-made PLC-5/60 programmable logic controller, engineered and manufactured by Allen-Bradley (Rockwell Automation) to meet rigorous industrial control standards. It features a robust design with battery-backed RAM and optional EEPROM backup, delivering reliable performance for medium-to-large-scale automation systems. Ideal for manufacturing, process control, and industrial machinery, it supports extensive I/O expansion, multiple communication protocols, and seamless integration with Allen-Bradley I/O modules and network infrastructure, ensuring stable operation in harsh industrial environments.
|
Parameter
|
Specification (1785-L60B/E)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand & Model
|
Allen-Bradley 1785-L60B/E, PLC-5/60
|
-
|
Original factory model, unmodified; part of the PLC-5 series, designed for high-performance industrial control applications with extensive I/O and communication capabilities.
|
|
User Memory
|
64K Words (Battery-backed Static RAM); Optional EEPROM Backup (1785-ME16/32/64/M100)
|
K Words
|
Battery-backed RAM for data retention during power loss; EEPROM modules enable non-volatile program storage for enhanced reliability.
|
|
Max Total I/O
|
3072 (any mix); 3072 Input + 3072 Output (Complementary Mode)
|
Points
|
Supports flexible I/O configuration for medium-to-large automation systems, compatible with 1771 I/O modules.
|
|
Max Analog I/O
|
3072 Points
|
Points
|
Accommodates up to 3072 analog I/O points for process control and monitoring applications.
|
|
I/O Scan Time per Rack
|

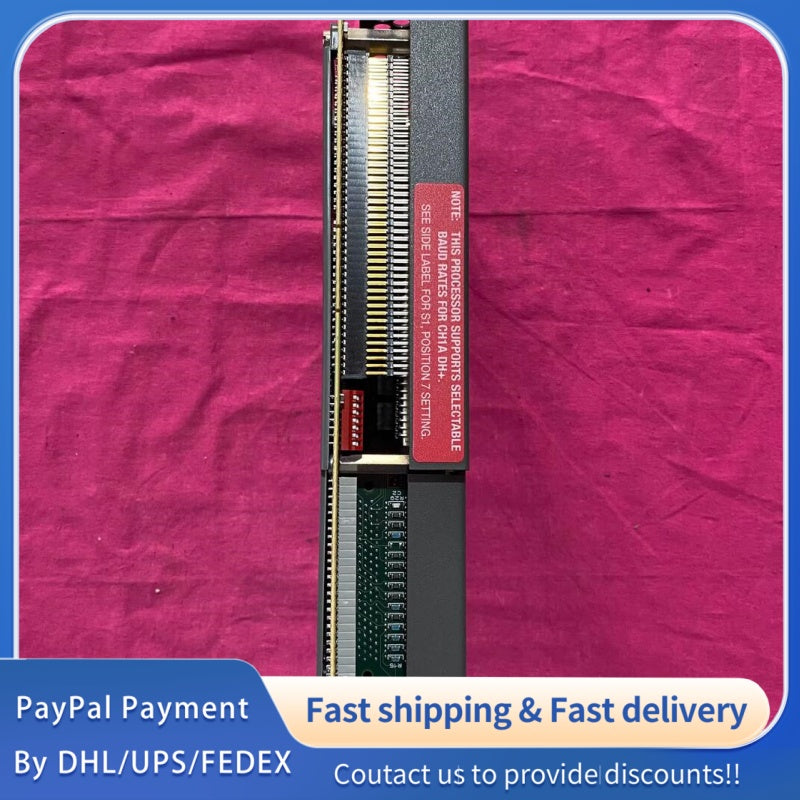

10 ms @ 57.6 kbit/s; 7 ms @ 115.2 kbit/s; 3 ms @ 230.4 kbit/s
|
ms
|
Scan time varies with communication baud rate; faster rates reduce I/O response latency for time-critical applications.
|
|
Max I/O Chassis
|
93 (1 Local + 92 Remote)
|
Units
|
Supports extensive remote I/O expansion via DH+ network for distributed control systems.
|
|
Communication Ports
|

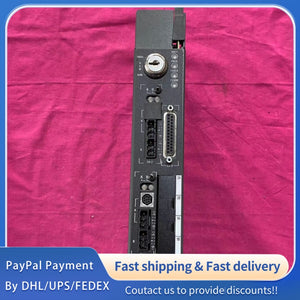

4 x DH+/Remote I/O (Adapter/Scanner); 1 x RS-232-C/422-A/423-A; 2 x 8-pin Mini-DIN (Programming)
|
Ports
|
Supports DF1, ASCII, DH+, and Remote I/O protocols for seamless integration with HMIs, PLCs, and industrial networks.
|
|
Backplane Current (5V)
|
3.3 A (Max)
|
A
|
Backplane current draw at 5V ensures compatibility with 1771 I/O chassis power distribution.
|
|
Operating Temperature
|
0 ~ 60 °C (Operating); -40 ~ 85 °C (Storage)
|
°C
|
Wide temperature range for reliable operation in harsh industrial environments.
|
|
Relative Humidity
|
5 ~ 95% RH (Non-condensing)
|
%
|
Non-condensing humidity tolerance prevents moisture-related damage to internal components.
|
|
Physical Dimensions (W×H×D)
|
170 × 130 × 55 mm (Single-slot Module)
|
mm
|
Fits 1771 I/O chassis (left-most slot), compact design for space-efficient installation.
|
|
Weight
|
1.39 kg (3.06 lbs)
|
kg
|
Lightweight construction for easy handling during installation and maintenance.
|
|
Power Supply (Backplane)
|
5V DC (Backplane); 24V DC (External, Optional)
|
V DC
|
Primary power from 1771 chassis backplane (5V DC); optional 24V DC for external accessories.
|
|
Certifications
|
UL, CSA, CE, IEC 61131-2
|
-
|
Compliant with global safety and electromagnetic compatibility standards for industrial control equipment.
|
|
Battery
|
1770-XYC (Lithium, 3V)
|
Unit
|
Lithium battery for RAM data retention; typical lifespan 5 years under normal conditions.
|
