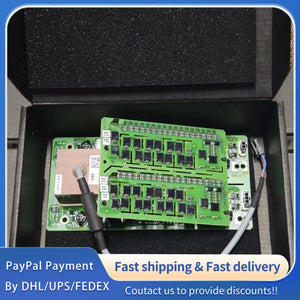

1 PCS new ABB GD C806 B05 3BHE036290R0005 module #LYQ007
1 PCS new ABB GD C806 B05 3BHE036290R0005 module #LYQ007
1 PCS new ABB GD C806 B05 3BHE036290R0005 module #LYQ007

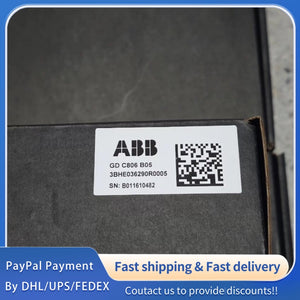

Part Number: 3BHE036290R0005 (Model: GD C806 B05, Genuine ABB Industrial Control Module)
Alternate P/N: N/A (Fully Compatible with ABB Symphony Plus DCS and Industrial Automation Platforms)
Brand: ABB Industrial Automation
Product Category: Industrial Control Module (Integrated Analog/Digital Signal Processing & High-Speed Logic Control Unit)
Product Series: ABB GD Series Control Modules (Standard Enhanced Version for ABB Symphony Plus Distributed Control Systems and Industrial Automation Platforms)
Core Application: Specifically designed as a core control module for ABB Symphony Plus DCS, widely applied in thermal power, hydropower, oil & gas, chemical, and metallurgical industrial automation systems. It undertakes key tasks including high-speed analog/digital signal acquisition, precision process regulation, complex logic control execution, and seamless data interaction with field devices and upper-level controllers. It ensures stable operation of critical equipment and accurate control of process parameters, suitable for harsh industrial environments requiring high reliability, real-time performance, and strong anti-interference capability.
Core Features: High-precision 16-bit analog signal processing with excellent linearity; seamless integration with ABB Symphony Plus internal communication bus for high-speed data transmission; rugged industrial-grade aluminum alloy housing with reinforced anti-electromagnetic interference performance; built-in advanced self-diagnostic and fault alarm functions for real-time module status monitoring and quick fault location; support for hot-swap maintenance to minimize system downtime; low power consumption and stable operation under extreme voltage fluctuation conditions; modular structure for flexible system expansion and function customization; compliance with international industrial safety and EMC standards; plug-and-play design for simplified installation and commissioning.
2. Electrical Specifications
Operating Voltage: 24V DC (wide voltage range: 19.2V DC ~ 28.8V DC); voltage tolerance: ±10%; power supply can be derived from system internal power unit or external stabilized DC power supply, with reverse polarity protection.
Power Consumption: ≤8W (typical, full load operation); ≤12W (maximum, peak load condition with all I/O channels active), energy-saving performance optimized for continuous operation.
I/O Channels: Analog Input: 8 channels (4-20mA, 0-10V DC, configurable); Analog Output: 4 channels (4-20mA, 0-10V DC, configurable); Digital Input: 12 channels (dry contact/PNP/NPN configurable, TTL level, with debounce function); Digital Output: 6 channels (relay output, 2A/250V AC, short-circuit protected).
Signal Performance: Analog Signal Resolution: 16-bit; Linear Error: ≤±0.05% Full Scale; Digital Signal Response Time: ≤1ms; Signal Processing Delay: ≤40μs; Input Signal Filtering: Configurable digital filter (0.1ms ~ 20ms) to suppress interference signals, with adaptive filtering function.
Filtering Performance: Built-in high-performance EMI filter and digital signal filter; fixed low-pass filter cutoff frequency for digital input signals; effective suppression of grid noise, electromagnetic interference, and contact bounce interference to ensure signal integrity.
Monitoring & Control Interface: Compatible with ABB Symphony Plus internal communication bus (100Mbps transmission rate); 1 × RS-485 (Modbus RTU protocol) for external device communication; 1 × USB debug port for local configuration and fault diagnosis; real-time transmission of I/O status and fault information to upper-level controller.
Protection Functions: ESD Protection: ±8kV (contact discharge), ±15kV (air discharge) per IEC 61000-4-2; Overvoltage/Undervoltage Protection (power input); Overcurrent Protection (digital output channels); Short-Circuit Protection (output channels, automatic current limiting and shutdown); Isolation Protection: 2500V AC (signal circuit to power circuit, 1 minute); Overheating Protection with alarm feedback.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
