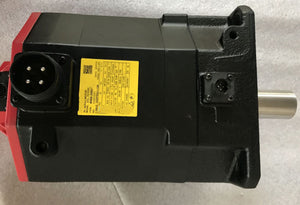

1PCS used working A06B-2265-B102 AC servo motor

Regular price $2,000.00 Sale price $1,200.00
40 People are viewing this right now
Add to Wishlist
Add to Compare

1PCS used working A06B-2265-B102 AC servo motor
1PCS used working A06B-2265-B102 AC servo motor
Regular price $2,000.00 Sale price$1,200.00
1PCS used working A06B-2265-B102 AC servo motor

1PCS used working A06B-2265-B102 AC servo motor

$1,200.00
A06B-2265-B102 is a FANUC αiS 22 AC servo motor, tailored for high‑precision CNC machine tool axis drives, with 2.2 kW rated power, 3000 min⁻¹ rated speed, and an αiA 16,000 absolute encoder for closed‑loop control. Below are its formal English parameters.


Full English Specifications (A06B-2265-B102)


Category English Specifications
Basic Information Model: A06B-2265-B102

Product Line: FANUC αiS 22 Series AC Servo Motor

Application: CNC machine tool axis/spindle drive systems

Mounting: Flange (standard FANUC servo motor mounting interface)

Shaft Type: Straight (ST), Slick Shaft (SLK, no keyway)

Package: IP67 shaft seal, IP40 motor body

Insulation Class: Class F
Electrical Ratings Rated Output Power: 2.2 kW

Rated Speed: 3000 min⁻¹

Rated Torque: 7 N·m

Peak Torque: 22 N·m (3× rated torque, 3‑second duty cycle)

Rated Current: 7.5 A (rms)

Peak Current: 22.5 A (rms)

Power Supply: 3‑phase AC 200–240 V (±10%), 50/60 Hz

Control System: FANUC Serial Servo Bus (FSSB)
Mechanical Performance Rotor Inertia: 0.0012 kg·m²

Cooling Method: Forced air cooling (built‑in axial fan)

Holding Brake: Optional 24 V DC (suffix “‑BRK” when ordered)

Weight: Approx. 12 kg

Operating Temperature: 0 °C to +40 °C

Storage Temperature: -20 °C to +70 °C

Relative Humidity: 5–95% RH (non‑condensing)
Encoder & Feedback Encoder Type: αiA 16,000 absolute encoder

Resolution: 16,000 pulses per revolution

Feedback Type: Absolute position + real‑time speed feedback

Interface: FANUC proprietary serial servo bus (FSSB)
Protection & Reliability Protection Functions: Overcurrent, overvoltage, undervoltage, overtemperature, overload, and short‑circuit protection

IP Rating: IP67 (shaft seal), IP40 (motor housing)

MTBF: > 20,000 hours (per FANUC reliability standards)



1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
