Parameter    Value

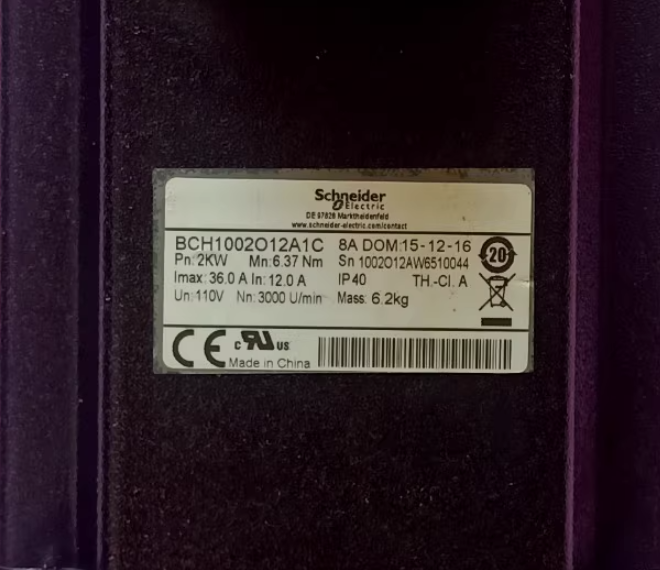

Model    BCH1002O12A1C
Series    Lexium 23 Plus
Type    Servo Motor
Rated Power    2 kW
Rated Torque    6.37 Nm
Rated Speed    3000 rpm
Max Speed    5000 rpm
Peak Torque    19.11 Nm
Rated Current    12.05 A
Voltage    220 VAC
Encoder    20‑bit incremental encoder
Flange Size    100 mm
Inertia    4.45 kg·cm²
Protection    IP40
Shaft    Keyed, no oil seal
Brake    Without brake
Connector    MIL‑style connector
Weight    6.2 kg
Dimensions    199 × 100 × 100 mm
Ambient Temp    0 to +40 °C
Insulation Class    F

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
