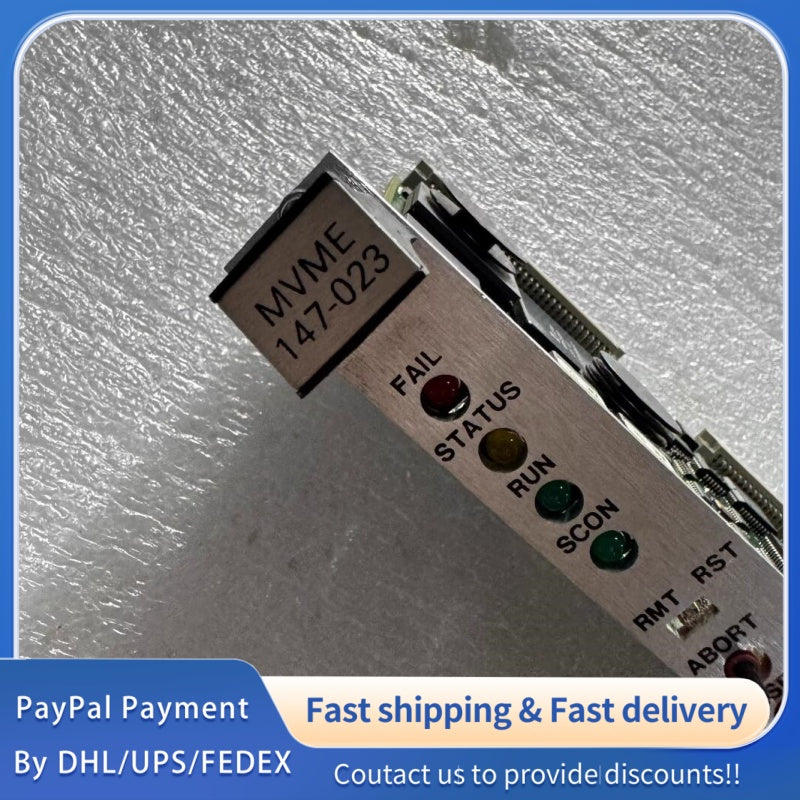

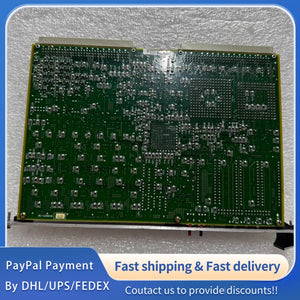

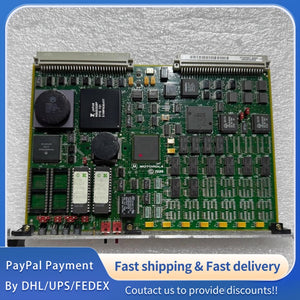

1 PCS USED MOTOROLA MVME 147-023 Controller Board #LYQ007
1 PCS USED MOTOROLA MVME 147-023 Controller Board #LYQ007
1 PCS USED MOTOROLA MVME 147-023 Controller Board #LYQ007
1. General Information (Original MOTOROLA Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Brand
|
MOTOROLA (Motorola Inc.)
|
-
|
Genuine, Original MOTOROLA Factory Production, 100% Authentic, Industrial-Grade Controller Board
|
|
Product Model
|
MVME 147-023
|
-
|
Original MOTOROLA Model, Factory Calibrated, No Modification, Fully Compatible with MOTOROLA VMEbus Systems
|
|
Product Name
|
Controller Board / Single-Board Computer
|
-
|
High-Precision Industrial Controller Board, Integrated Single-Board Computer, Designed for Industrial Control & DCS Systems
|
|
Product Type
|
VMEbus Single-Board Controller / Industrial Control Module
|
-
|
Integrated control, data processing and communication functions, eliminating the need for additional backplane modules[3]
|
|
Microprocessor
|
MC68030 Enhanced 32-bit Microprocessor
|
-
|
With on-chip instruction and data cache memory, improving processing efficiency by 20-40%, integrated memory management unit (MMU)[3]
|
|
Clock Speed
|
32 MHz
|
MHz
|
Stable operating frequency, ensuring high-speed and accurate data processing and control signal output[2]
|
|
DRAM Capacity
|
16 MB (with parity)
|
MB
|
Programmable parity support, ensuring data storage stability and reducing data loss risks[2][3]
|
|
EPROM Capacity
|
4 MB (16-bit, 32-pin DIP, max 4 sockets)
|
MB
|
Supports on-board debugger and diagnostic firmware, facilitating system debugging and maintenance[3]
|
|
Communication Interfaces
|
4×EIA-232-D Serial Ports (SIO), 1×PIO, Ethernet, SCSI
|
-
|
Serial ports configurable via clock signal lines, integrated SCSI bus interface with DMA, supporting multi-device communication[1][2][3]
|
|
VMEbus Compatibility
|
ANSI/VITA 1-1994 VME64 (IEEE Std 1014)
|
-
|
4-level requester, 7-level interrupter and 7-level interrupt handler, supporting multiprocessor systems[3]
|
|
Timers
|
2×16-bit Timers, Watchdog Timer
|
-
|
Ensures stable system operation, preventing malfunctions caused by program anomalies[3]
|
|
Input Voltage Range
|
+12 VDC ±10%, -12 VDC ±10%
|
VDC
|
Adapts to industrial power supply fluctuations, +12V supports 1.0A (with off-board LAN transceiver), -12V supports 100mA[3]
|
|
Operating Temperature Range
|
0 ~ +55 °C (Forced Air Cooling)
|
°C
|
Stable performance in harsh industrial environments, suitable for various industrial control scenarios[3]
|
|
Storage Temperature Range
|
-40 ~ +85 °C
|
°C
|
Suitable for long-term storage, ensuring stability of internal electronic components without damage[3]
|
|
Working Humidity
|
5% ~ 90% (Non-Condensing)
|
RH
|
Adapts to various industrial workshop humidity environments, preventing component corrosion and short circuits[3]
|
|
Mounting Type
|
VMEbus Board Mount (Standard Industrial Interface)
|
-
|
Fits MOTOROLA standard VMEbus mounting positions, easy to install, disassemble and maintain[3]
|
|
Dimensions (L×W×H)
|
233.4 × 19.8 × 160.0 (±0.2)
|
mm
|
Standard VMEbus board size, front panel height 261.8mm, compact design to save installation space[3]
|
|
Weight
|
Approx. 0.35 kg
|
kg
|
Lightweight design, reducing the load on VMEbus backplane and facilitating system maintenance
|
|
Certifications
|
CE, UL, ISO9001
|
-
|
Complies with international industrial standards, ensuring product quality, safety and electromagnetic compatibility[3]
|
|
Optional Accessories
|
MVME712M Transition Module
|
-
|
Supports standard I/O connections, converting on-board peripheral I/O to industry-standard interfaces[3]
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
