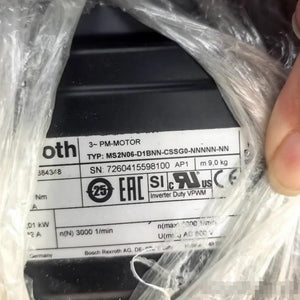

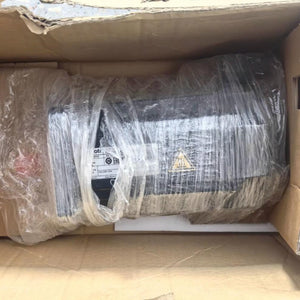

1 PCS new Bosch Rexroth Servo Motor MS2N06-D1BNN-CSSG0-NNNNN-NN #LYQ007
1 PCS new Bosch Rexroth Servo Motor MS2N06-D1BNN-CSSG0-NNNNN-NN #LYQ007
| Parameter | Value | Unit |
|---|---|---|
| Model | MS2N06-D1BNN-CSSG0-NNNNN-NN | - |
| Manufacturer | Bosch Rexroth | - |
| Motor Type | Synchronous Servomotor (IndraDyn S) | - |
| Frame Size | 06 | - |
| Voltage Class | 400 | V |
| Rated Speed (n_N) | 3000 | rpm |
| Max Speed (n_max) | 6000 | rpm |
| Continuous Torque (M_N, 60K) | 11.1 | Nm |
| Continuous Torque (M_N, 100K) | 13.6 | Nm |
| Max Torque (M_max) | 34.8 | Nm |
| Rated Power (P_N) | 3.48 | kW |
| Rated Current (I_N) | 7.0 | A |
| Peak Current (I_max) | 22.0 | A |
| Rotor Inertia (J) | 0.00079 | kg·m² |
| Winding Resistance (R) | 1.05 | Ω |
| Winding Inductance (L) | 10.8 | mH |
| Thermal Time Constant (Winding) | 38.0 | s |
| Thermal Time Constant (Motor) | 17.0 | min |
| Insulation Class | F | - |
| Max Winding Temp | 155 | °C |
| Ambient Temp Range | -20 ... +40 | °C |
| Protection Class | IP65 (housing) / IP67 (shaft) | - |
| Cooling Method | Self-cooling (natural convection) | - |
| Shaft | Smooth, with seal | - |
| Shaft Diameter | 24 | mm |
| Shaft Length | 50 | mm |
| Flange Size | 116 | mm |
| Bolt Circle | 130 | mm |
| Mounting Holes | M8 | - |
| Weight | 9.5 | kg |
| Encoder Type | Single-turn Hiperface DSL (CSSG0) | - |
| Brake | Without holding brake | - |
