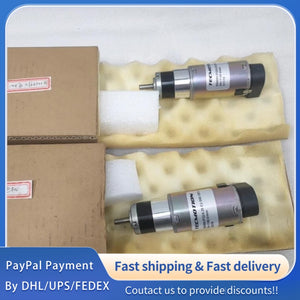

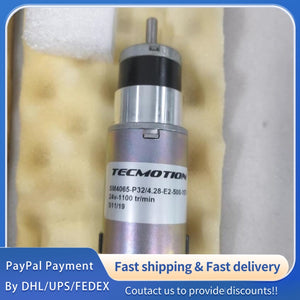

1 PCS USED TECMOTION Motor SM4065-P32/4.28-E2-500-157-I#LYQ007
1 PCS USED TECMOTION Motor SM4065-P32/4.28-E2-500-157-I#LYQ007
|
Item
|
Specification
|
|
Model Number
|
SM4065-P32/4.28-E2-500-157-I
|
|
Product Name
|
TECMOTION 2-Phase Stepper Motor
|
|
Product Series
|
SM4000 Series, Precision Stepper Motor for Industrial Automation
|
|
Brand
|
TECMOTION
|
|
Parameter
|
Value
|
|
Motor Phase
|
2-Phase Hybrid Type
|
|
Step Angle (Unsubdivided)
|
1.8° (Full Step), 0.9° (Half Step), Step Accuracy: ±5% Max
|
|
Holding Torque
|
0.8 N·m (Rated Condition)
|
|
Rated Current per Phase
|
3.2 A (Continuous Operation)
|
|
Phase Resistance
|
4.28 Ω per Phase (±10% Tolerance)
|
|
Phase Inductance
|
8.0 mH per Phase (at 1 kHz, ±20% Tolerance)
|
|
Insulation Resistance
|
≥100 MΩ (500 VDC, Between Windings and Housing)
|
|
Withstand Voltage
|
500 VAC for 1 Minute (Between Windings and Housing, No Breakdown)
|
|
Back EMF Constant
|
2.8 V/1000 rpm (Typical)
|
|
Parameter
|
Value
|
|
Motor Dimensions (D×L)
|
42 mm (Diameter) × 65 mm (Length, Excluding Shaft)
|
|
Shaft Specifications
|
Diameter: 8 mm, Length: 50 mm (Smooth Shaft, E2 Precision Grade), Radial Runout: ≤0.02 mm (450g Load)
|
|
Rotor Inertia
|
102 g·cm² (Typical)
|
|
Net Weight
|
Approximately 500 g (Without Cables & Accessories)
|
|
Housing Material
|
Aluminum Alloy (Anodized Surface, Anti-Corrosion)
|
|
Shaft Material
|
High-Strength Steel (Hardened, Wear-Resistant)
|
|
Connector Type
|
157-Type Connector, Gold-Plated Contacts, IP40 Protection Level
|
|
Cable Length (Optional)
|
Standard: 1.5 m, Customizable Length Available
|
